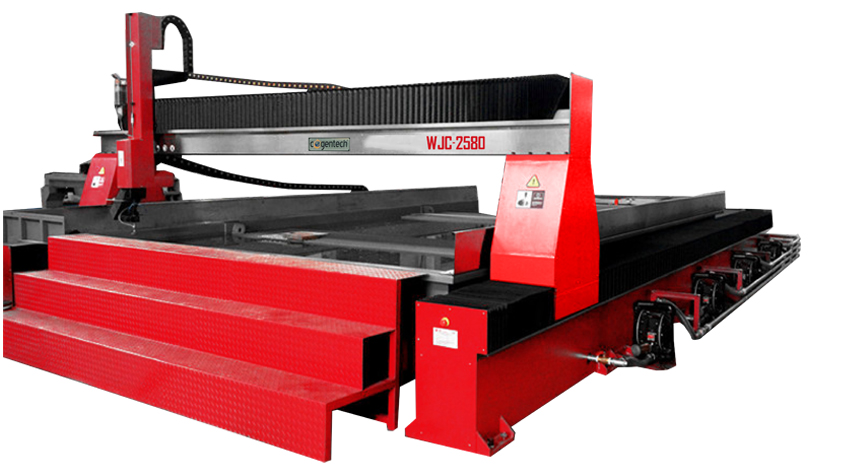

1. Large gantry structure waterjet cutting machine-X,Y,Z-axes all can be customized, and multiple cutting heads can be added on the same Z-axis or multiple Z-axes.

2. The transmission system adopts high-accuracy gear & pinion(helical type) and heavy linear guide, It can achieve high-speed moving, with automatic lubrication.

3. The base of Y-axis is overall manufacturing, It’s convenient for disassembly, transportation and assembly.

superior precision and stability are guaranteed by the casting beam and base frame of Y-axis.

4. Machine bed and water tank are detachable, which are designed to reduce the pressure from water with sands and machined parts to moving parts.

5. X-axis and Y-axis adopt high-precision ball screw and linear guideway.  Transmission model: Helical rack & linear guide rail.

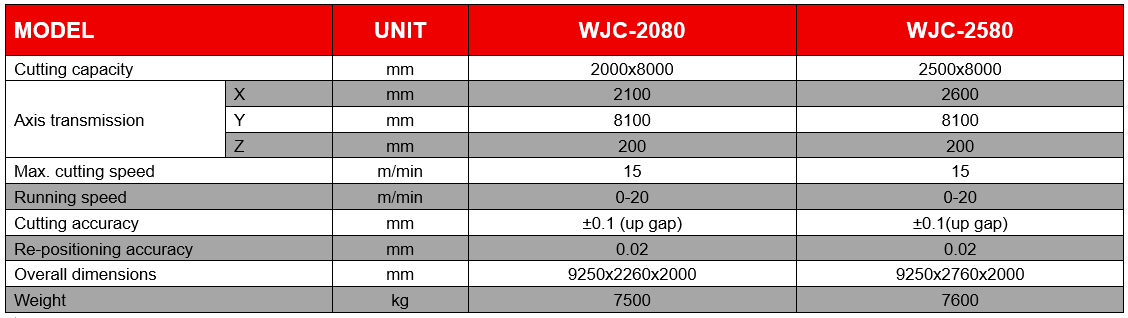

6. The size of cutting table can be customized, such as 3000mmx8000mm, 3500mmx7000mm, 2000mmx12000mm, the max size can be 4000mmx12000mm. All these table sizes are available.
