RPW-20G
Description

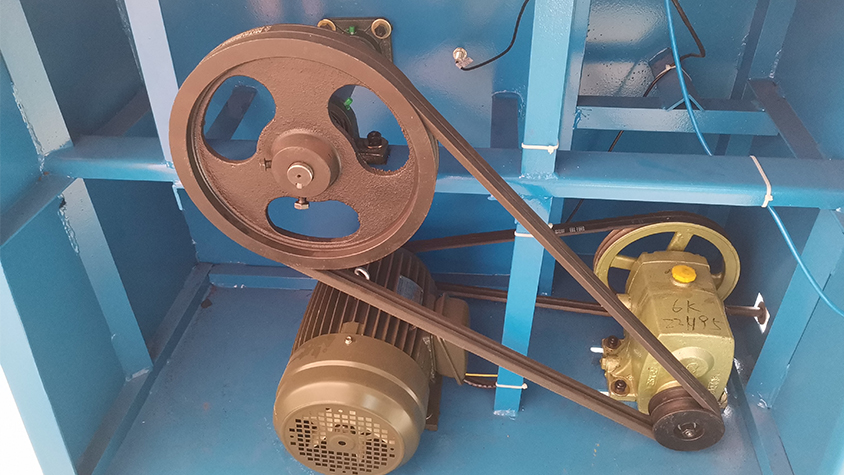

1. VBS-400A/500A/600A： 2-speed main motor.
2. VBS-500AV: Auto feeding saw, variable speed.
3. The speed in the table is the liner speed of cutting steel.
4. If cutting copper, aluminum, plastic, wood and other easily sawed products, the linear speed is at least 1 time wider (i.e., each gear speed X2), the speed is faster and the efficiency is higher

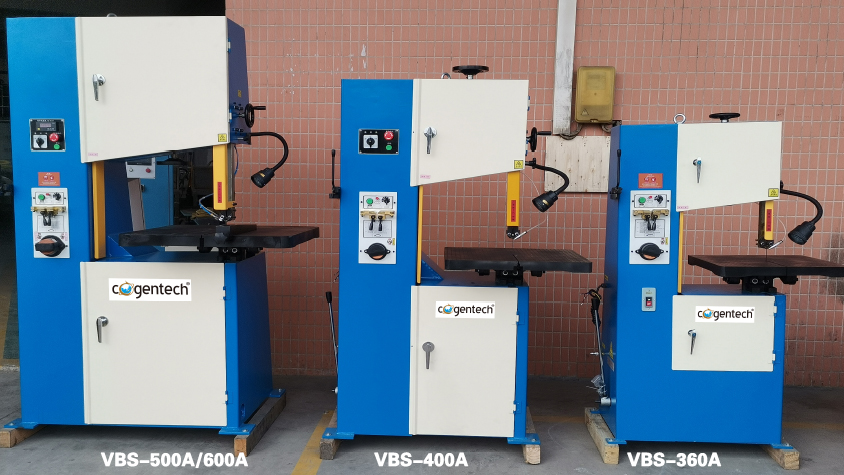

MODEL | UNIT | VBS-360A | VBS-400A | VBS-500A | VBS-600A | VBS-500AV | |
Cutting capacity | Height | mm | 230 | 320 | 320 | 320 | 320 |
Width | mm | 350 | 400 | 505 | 590 | 500 | |
Table size | mm | 430x500 | 550x600 | 580x700 | 750x680 | 670x730 | |
Blade speed | m/min | 31,51,76,127 | L:27,43,65,108 H:53,85,27,2123, | L:34,54,81,134,, H:66,106,159,265 | L:40,64,95,158 H:78,125,188,314 | 20-600 (variable) | |
Length of saw blade | mm | 2780 | 3360 | 3930 | 4300 | 4040 | |
Blade width | mm | 3-13 | 3-16 | 5-27 | 5-27 | 5-27 | |
Table tilt (F-B; L-R) | degree | -10°; -15° | -10°; -15° | -10°; -15° | -10°; -15° | 0°; -15° | |
Main motor power | HP | 1 | 2/3.2 | 2/3.2 | 2/3.2 | 3 | |
Welding capacity | mm | 3-13 | 5-19 | 5-19 | 5-19 | 5-19 | |
Electric welder | KVA | 1.2 | 2.0 | 5.0 | 5.0 | 5.0 | |
Overall dimensions | mm | 930x660x1590 | 1270x890x1960 | 1270x890x1950 | 1380x910x2150 | 1270x1210x2040 | |
Weight | kg | 270 | 430 | 580 | 650 | 700 | |
