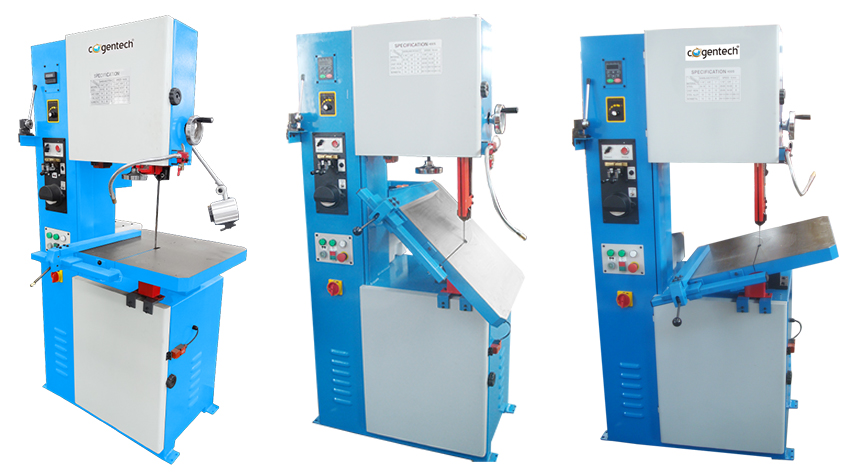

CBM-110
Description

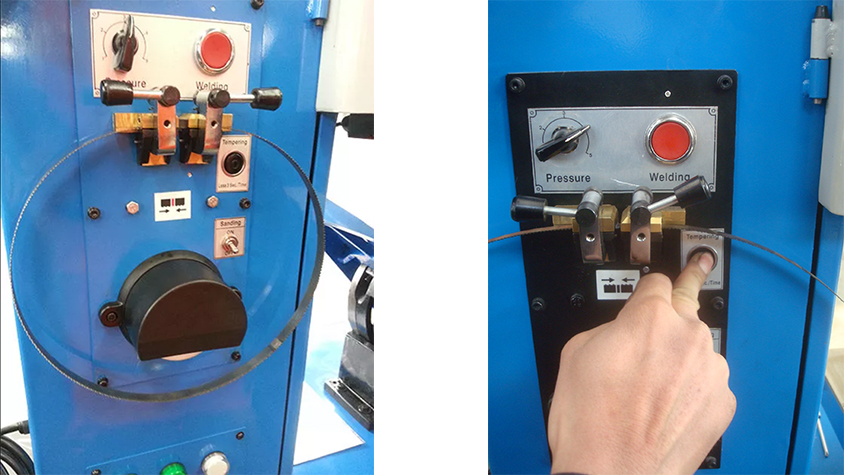

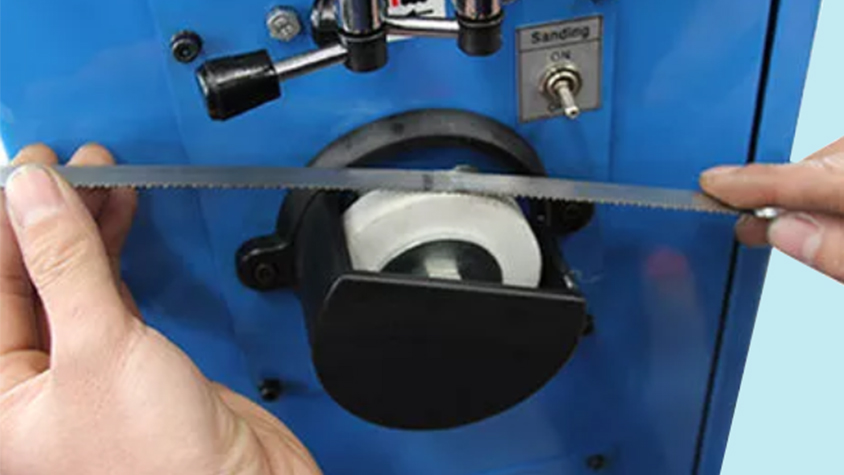

1. Blade cutting, Blade welding, Blade grinding.
2. It can make various kinds of cutting such as beveling,shaping,contour,slicing,etc.
3. Variable speed saw can cutting metal,plastic,wood,rubber and other materials.
4. Blade guard height adjustable

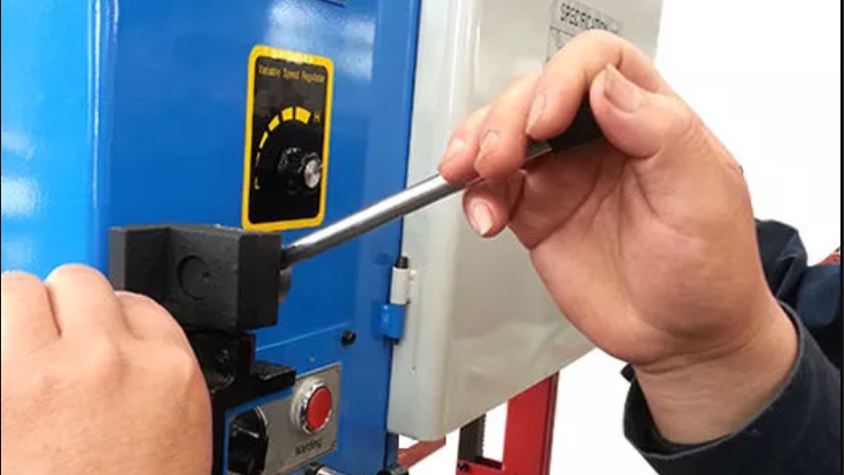

5. Variable blade speed by programming inverter.
6. Servo motor on request.
MODEL | UNIT | VBS-300BV | VBS-400BV | VBS-500BV | VBS-600BV | |
Cutting capacity | Height | mm | 185 | 285 | 310 | 336 |
Width | mm | 310 | 400 | 500 | 585 | |
Table size | mm | 400x500 | 550x600 | 660x700 | 660x700 | |
Blade speed (variable) | rpm | 0-1500 | 0-1400 | 0-1400 | 0-1400 | |
Length of saw blade | mm | 2835-2915 | 3390-3467 | 3980-4050 | 4430-4520 | |
Blade width | mm | 3-16 | 3-16 | 3-16 | 6-19 | |
Table tilting | degree | R-45°, L-15° | R-45°, L-15° | R-30°, L-15° | R-30°, L-15° | |
Main motor power | kW | 0.55 | 1.5 | 1.5 | 1.5 | |
Grinding motor power | W | 90 | 90 | 90 | 90 | |
Electric welder | KVA | 2.4 | 2.4 | 2.4 | 2.4 | |
Packing size | mm | 960x650x1750 | 1070x800x2000 | 1400x900x2200 | 1470x950x2300 | |
N.W./G.W. | kg | 275/345 | 315/360 | 410/470 | 555/640 | |
