PTL-800A
Description
1. High strength cast iron structure, especially suitable for heavy and large workpiece processing.

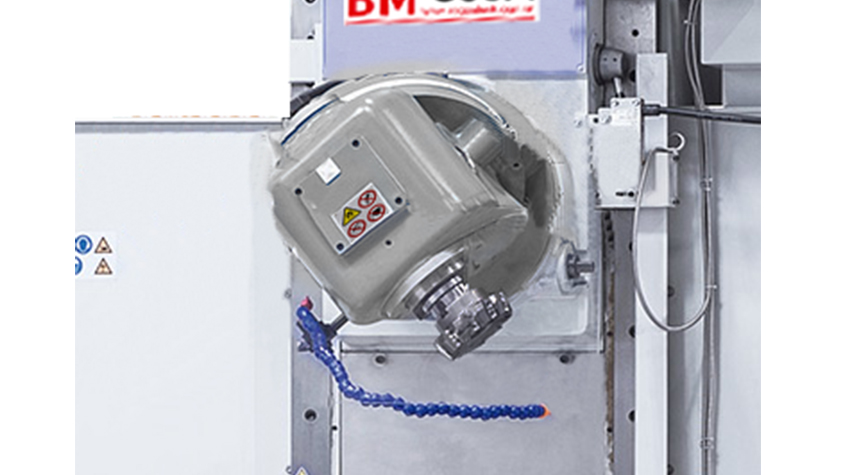

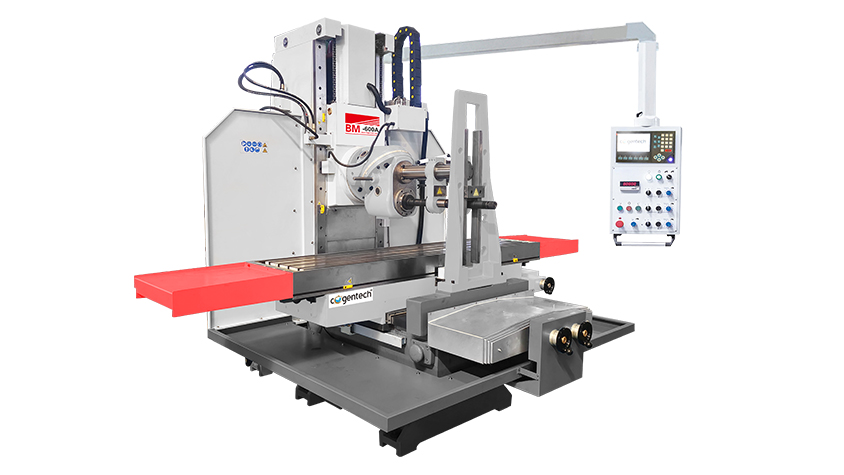

2. Universal swivel head (Huron head) swings easily to a horizontal position and various angle places.
3. 3-axis servo motor, 3-axis ballscrew drive,3-axis electronic handwheel.
4. All guideways are hardened and ground, and supplied with oil by a central lubrication unit.
5. Powerful main motor, variable speed adjustment with intermediate transmission system for optimal torque and almost constant speed at heavy work loads.
6. Reinforced saddle in robust box construction.
7. The control panel on a long extending arm that can be ideally positioned by the operator.

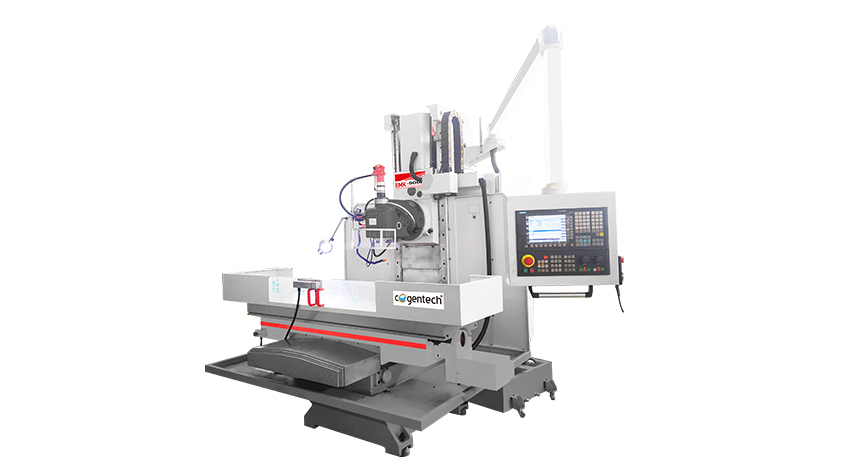

8. BMK is CNC model. Fanuc/Siemens/Fagor/Syntec/GSK control system available.

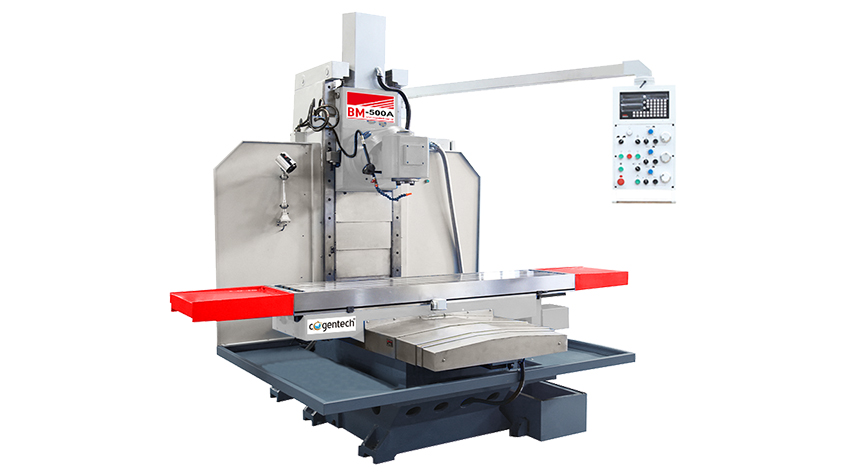

MODEL | UNIT | BM-500A | BMK-500A | BM-600A | BMK-600A |
Table size | mm | 2100x500 | 2500x600mm | ||
Table travel (X,Y,Z) | mm | 1500x650x650 | 1800x700x700 | ||
T-slot (No./width/distance) | mm | 4-20-100 | 5-20-100 | ||
Table load | kg | 2000 | 2000 | ||
Table feed | mm/min | X,Y: 2.5-3000; Z: 2.5-2500 | X,Y: 2.5-3000; Z: 2.5-2500 | ||
Table rapid feed (X,Y,Z) | mm/min | 6000/6000/3000 | 6000/6000/3000 | ||
Spindle taper | ISO50 | ISO50 | |||
Spindle speeds (variable) | rpm | 6-300, 30-1500 | 6-300, 30-1500 | ||
Swivel angle of milling head | degree | 360° | 360° | ||
Distance from vertical spindle to table | mm | 0-650 | 0-700 | ||
Distance from horizontal spindle to table | mm | 8-660 | 8-680 | ||
Distance from vertical spindle center to column | mm | 610 | 660 | ||
Main motor power | kW | 11 | 11 | ||
Feed motor power (AC servo motor) | Nm | 18/23/18 | 18/27/18 | ||
Overall dimensions | mm | 3220x2420x2800 | 4280x2680x2800 | ||
Weight | kg | 7300 | 9000 | ||
