Description
Features：
1. Standard hydraulic collet. Optional hydraulic chuck 6”.
2. Taiwan linear guideway and THK ball screw.
3. Integrated automatic lubrication
4. Suitable for machining small and middle-sized shaft and disk parts, and widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.

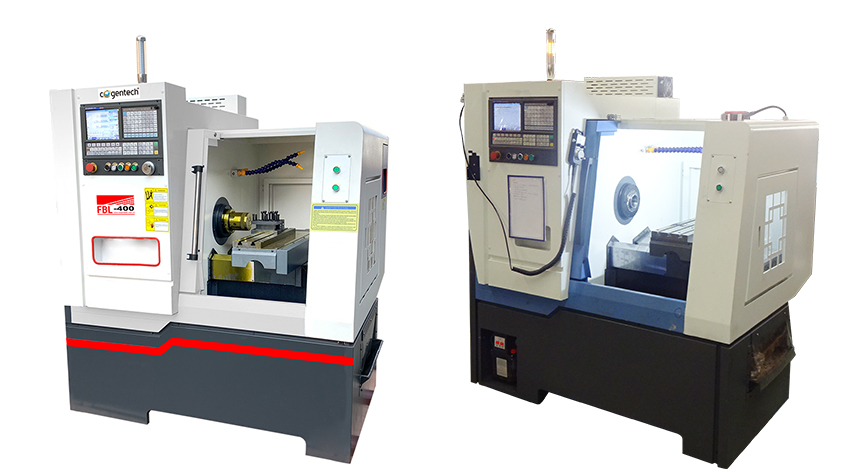

MODEL | UNIT | FBL-400 | ||
Capacity | Swing over bed | mm | 400 | |
Swing over cross slide | mm | 150 | ||
Center distance | mm | 280 | ||
Bar dia. | mm | φ40 | ||
Bed width | mm | 420 | ||
Travels | X/Z axis travel | mm | 280/330 | |
Feeding | X/Z axis rapid feed rate | m/min | 20/20 | |
Spindle | Taper (Bore) | mm | A2-5 (φ48) | |
Speed (variable) | rpm | 4000 | ||
Motor power | kW | 3.7 | ||
Turret | No. of tools | 4 gang tools | ||
Others | Overall dimensions | mm | 1650x1350x1900 | |
Weight | kg | 1600 | ||
