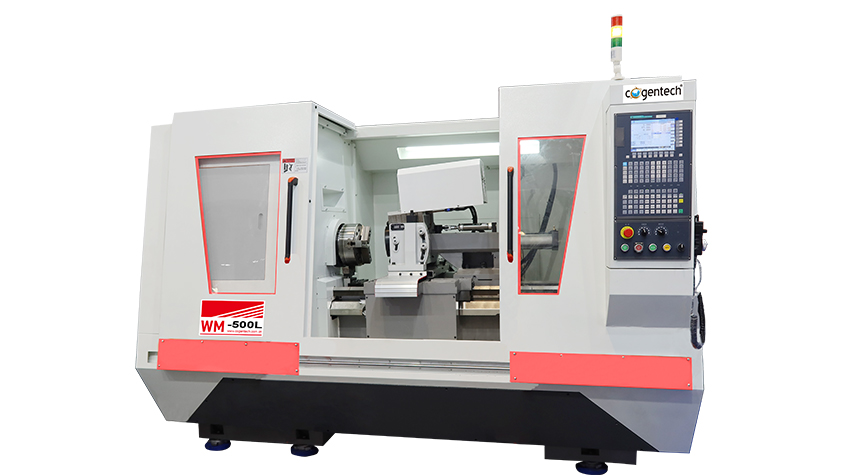

DBC-2513-1000
Description
1. Machine adopts servo independent spindle, band-type brake lock, high precision transmission.
2. The machine has 4-axis function (Spindle, X,Z,Whirling-spindle),3-linkage (Spindle, X,Z).

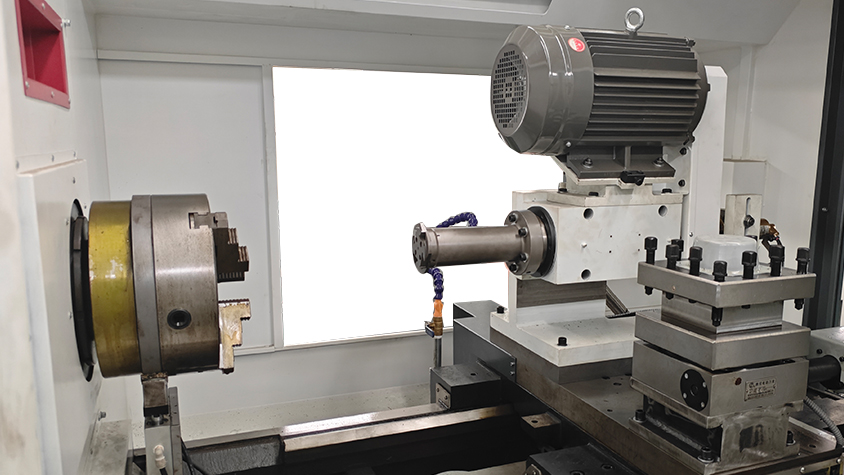

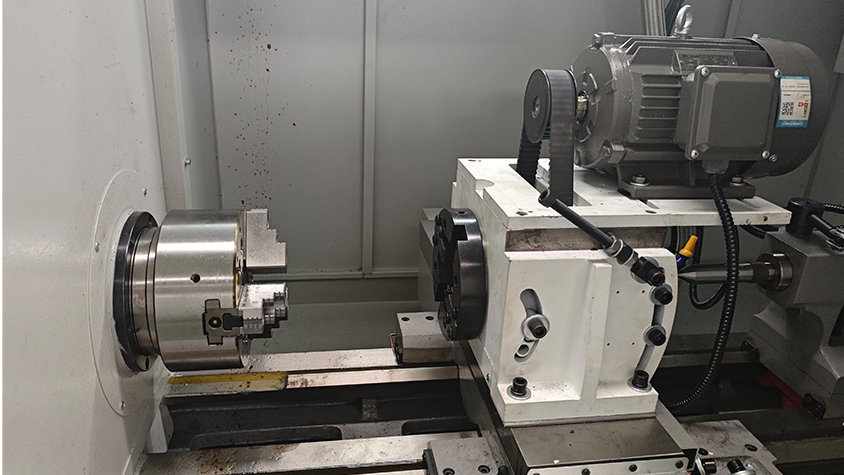

3. Cutting form: internal thread cutting and external thread cutting.
4. Automatic involute milling of thread start teeth can be realized.
5. High processing efficiency, simple operation.

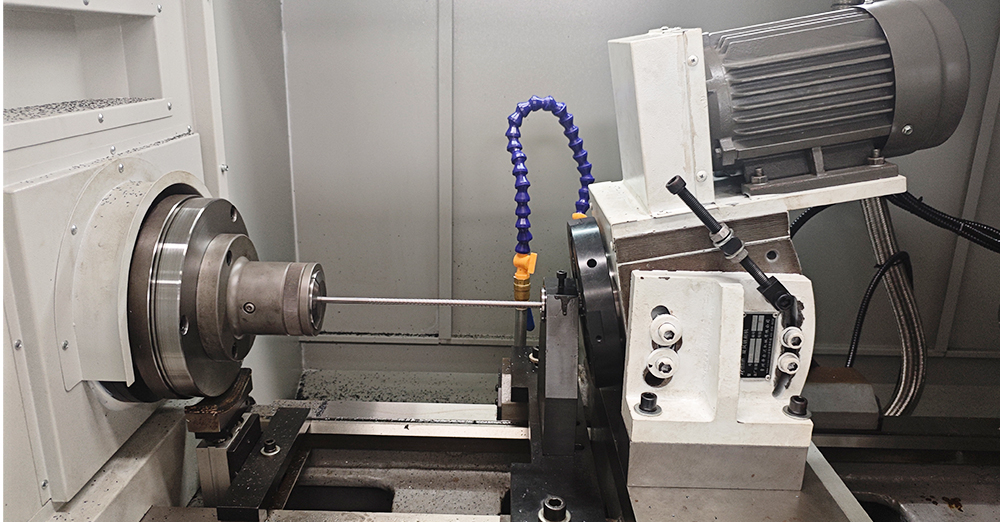

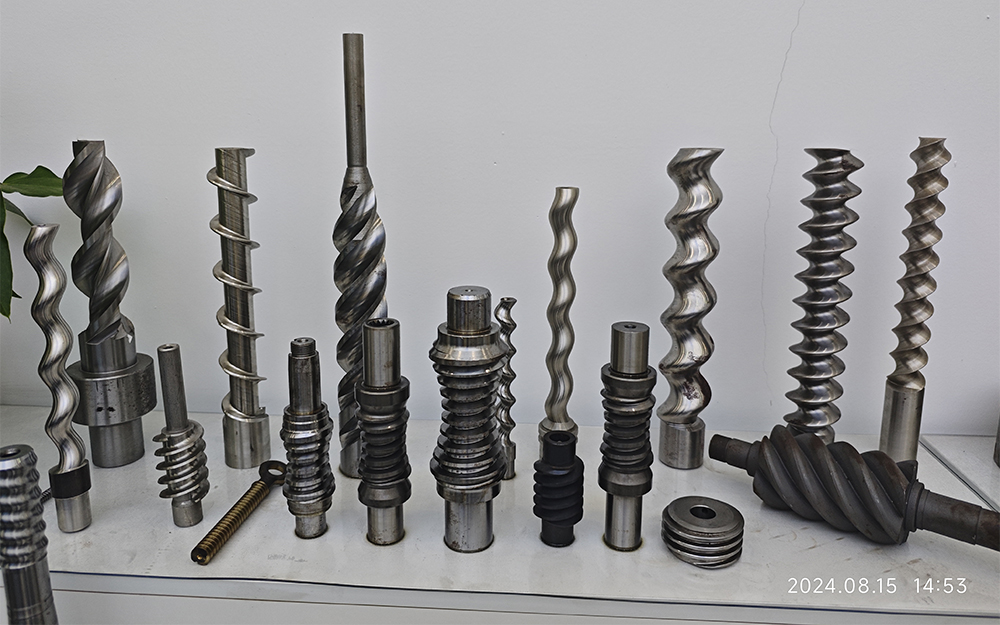

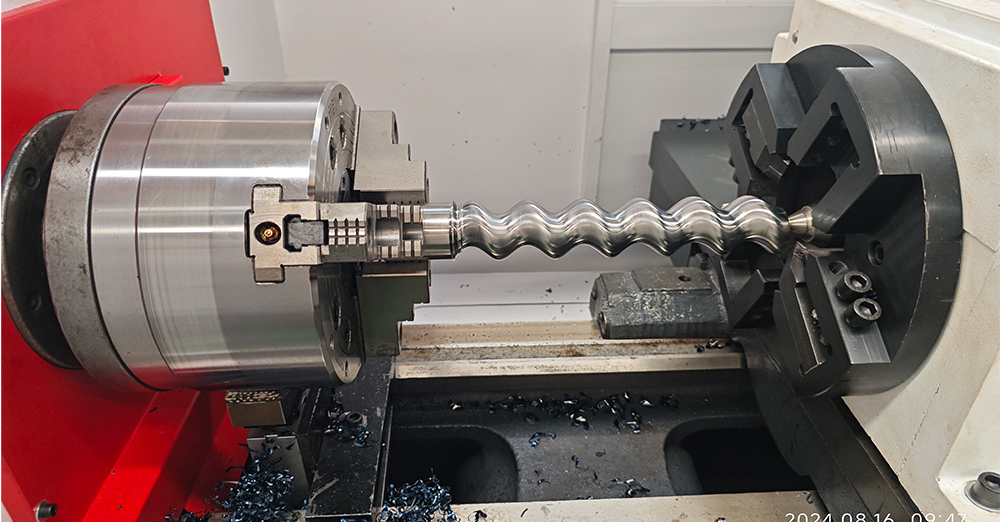

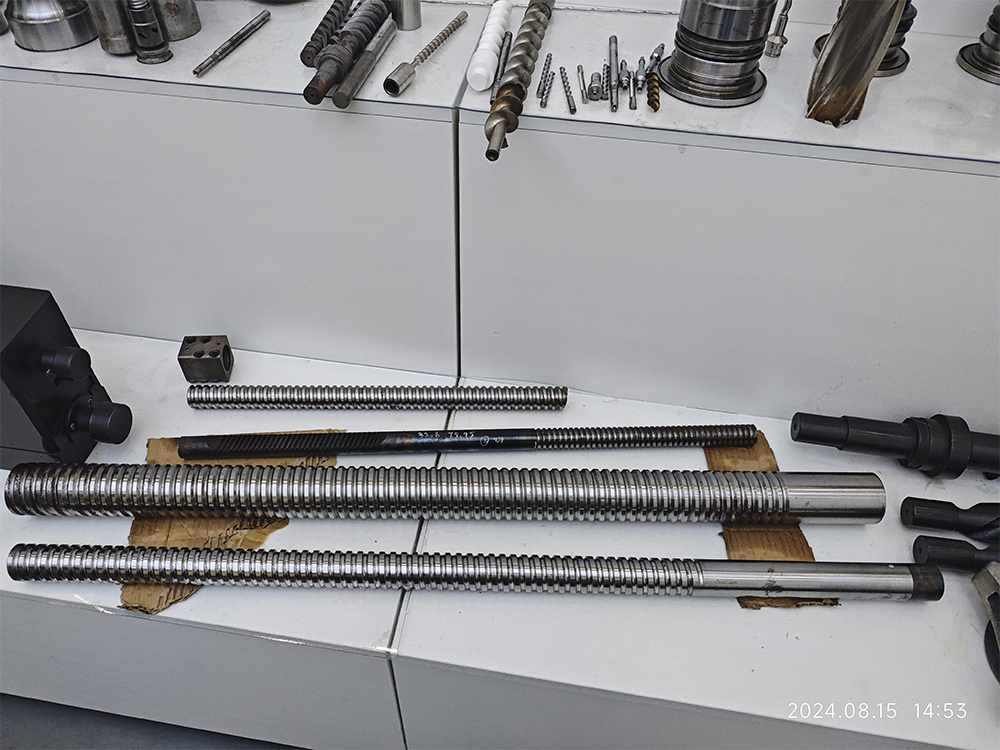

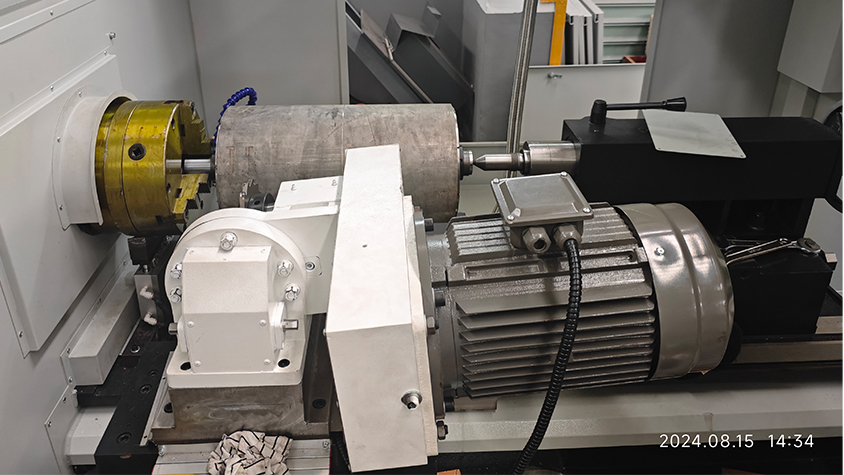

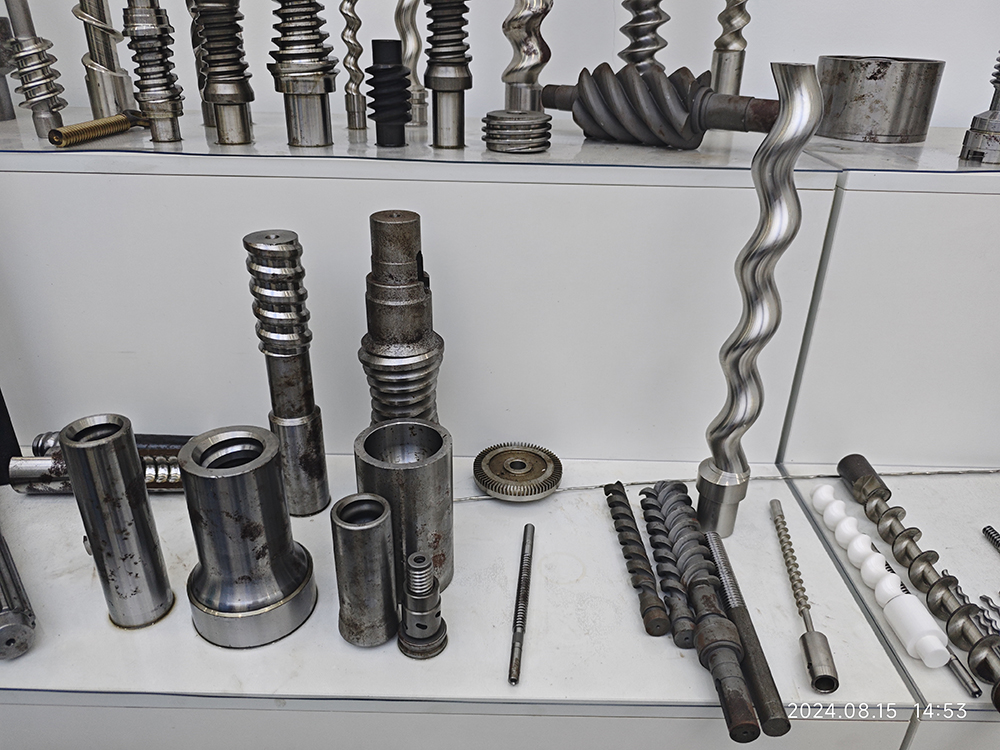

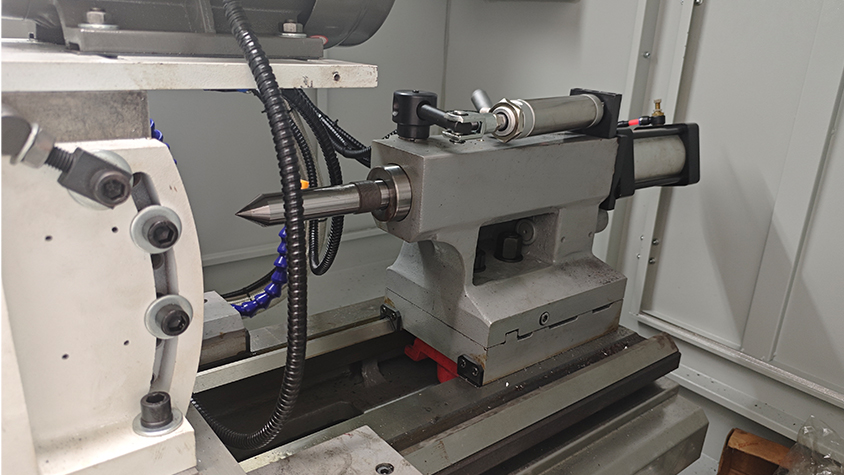

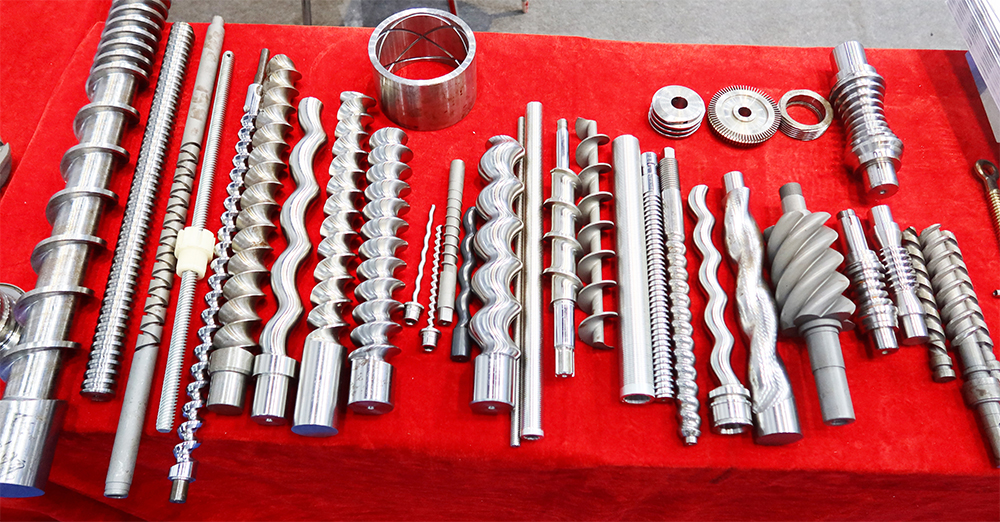

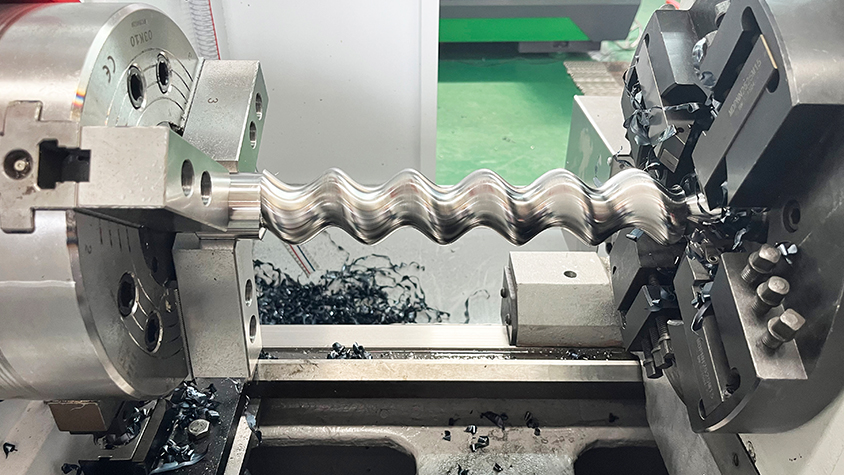

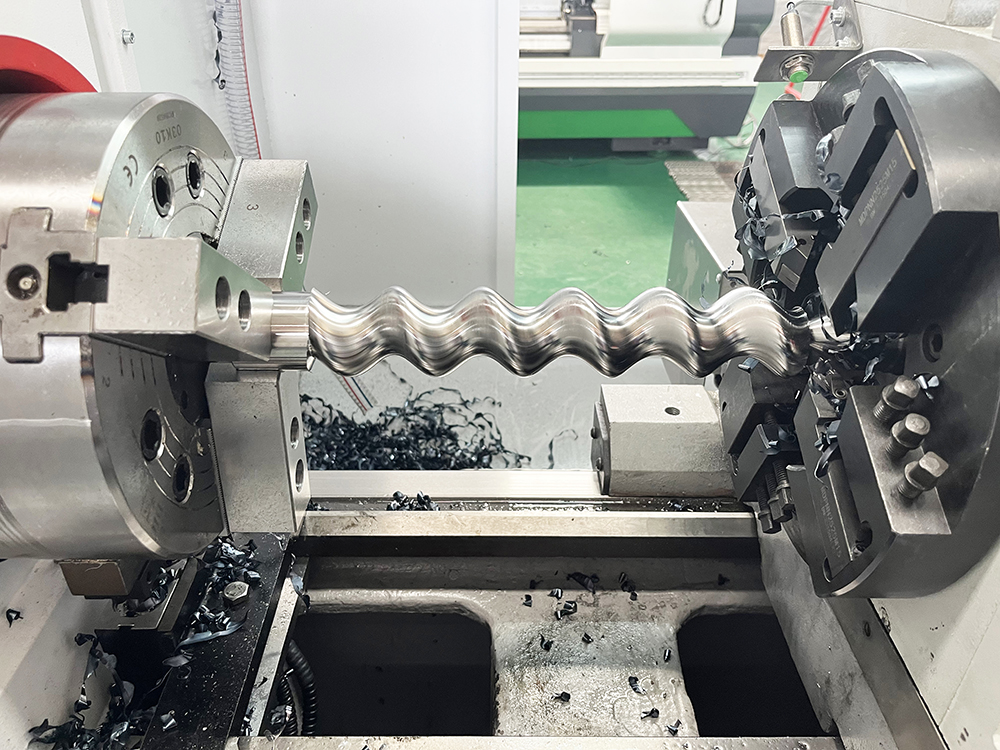

6. Suitable for screw rod, worm, lead screw, drill rod, nut, screw pump rotor, milling square, 8-figure oil groove and rack，etc.

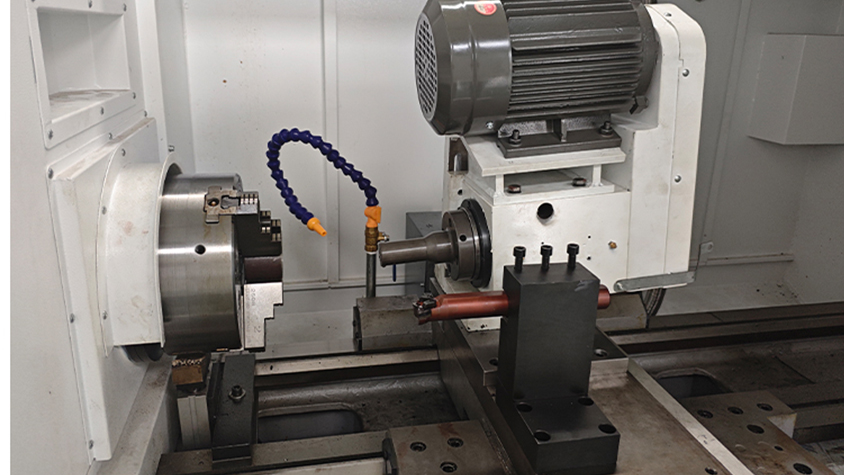

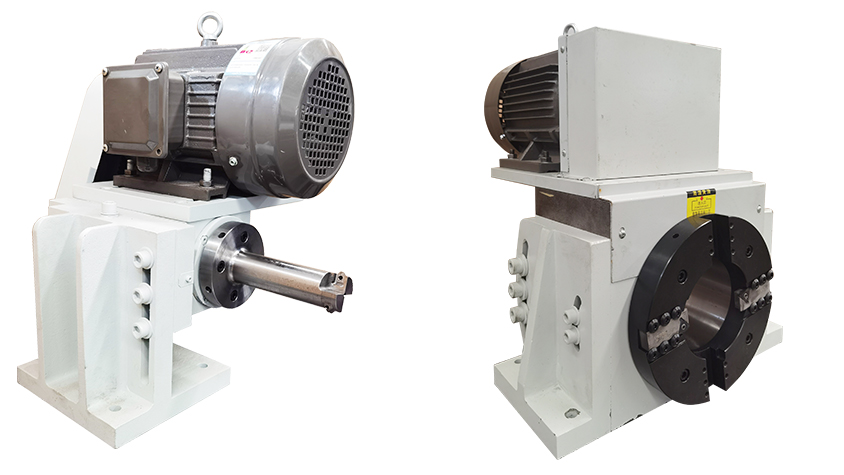

7. All kinds of whirling milling heads are available, and all kinds of cutting tools are available.
MODEL | UNIT | WM-500L | WM-800L | |
Capacity | Swing over bed | mm | 500 | 800 |
Swing over cross slide | mm | 300 | 480 | |
Center distance | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000/4000 | |
External thread range | mm | φ2-φ300 | φ2-φ350 | |
Internal thread range | mm | φ26-φ500 | φ26-φ600 | |
Whirling milling head | Spindle bore dia. range | mm | 90-320 | 90-320 |
Spindle speed | rpm | 300-3000 | 800-3000 | |
Spindle motor power range | kW | 2.2-7.5 | 2.2-7.5 | |
Lathe Spindle | Taper; Bore | mm | A2-8; φ82 | C11; φ105 |
Speed (3-gearshift, variable) | rpm | 0-800 | 300-700 | |
Motor power | kW | 7.5 | 11 | |
Tailstock | Quill taper/Dia./Travel | mm | MT.5/φ75/150 | MT.6/φ100/200 |
Others | Overall dimensions | mm | 3000/3500/4000/4500x1800x2000 | 3500/4000/4500/5000/5500x2100x2400 |
Weight | kg | 3500/4000/4500/5000 | 4000/4500/5000/5500/6000 | |
