Description
1.The bed adopts 30° overall structure, high rigidity, covers an area of small, smooth chip removal.

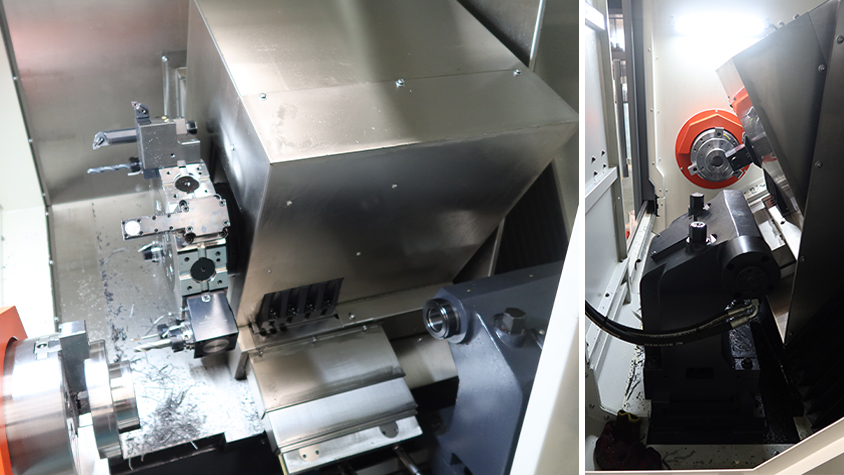

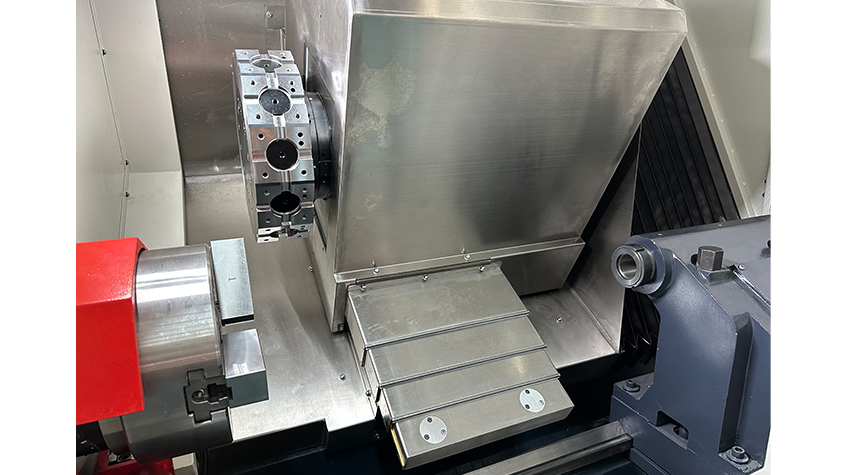

2. High speed spindle unit, hydraulic servo turret, hydraulic chuck.
3. X/Z axis adopts imported ball screw, linear guideway, good dynamic characteristics, strong rigidity.
4. Central auto lubricating system, stable and reliable.
5. Suitable for rough and fine process intensive processing, widely used in automotive, aerospace, mold, high-speed railway, food and chemical machinery, electronics and other industries of precision parts processing.

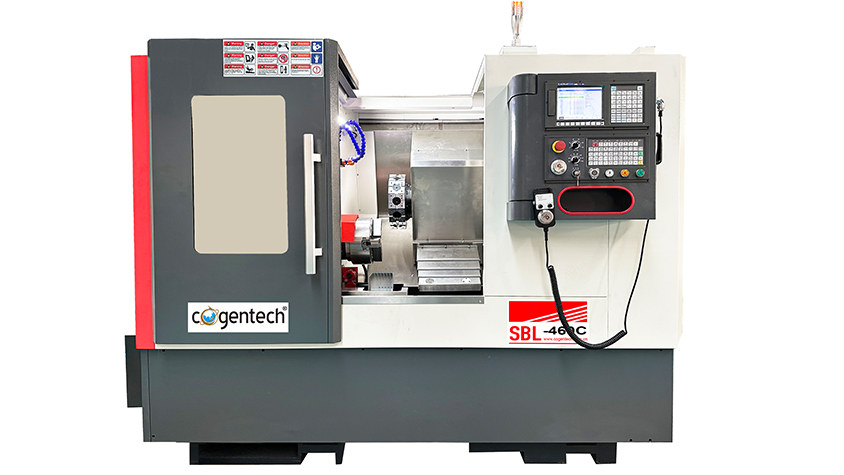

MODEL | UNIT | SBL-360C | SBL-460C | SBL-500C | |
Capacity | Swing over bed | mm | 360 | 460 | 560 |
Turning length | mm | 300 | 350 | 350;500;800 | |
Bar dia. | mm | φ44 | φ44 | φ55;φ55;φ75 | |
Travel | X/Z axis | mm | 185/350 | 240/400 | X:240; Z:400;540;860 |
Feeding | X/Z axis rapid feed rate | m/min | 24/24 | ||
Spindle | Taper (Bore) | mm | A2-5(φ56) | A2-5(φ56) | A2-6;A2-6;A2-8 (φ66;φ66;φ86) |
Speed | rpm | 50-4000 | 50-3500 | 0-3000 | |
Motor power | kW | 5.5 | 7.5 | 11;11;15 | |
Chuck | 6’’ | 8’’ | 10’’ or 12’’ | ||
Turret | No. of tools | T | 8 or 12 | 8 or 12 | 8 or 12 |
Tailstock | Taper/Travel | mm | MT.4/220 | MT.5/270 | MT.5/270 |
Others | Overall dimensions | mm | 2200x1600x1850 | 2500x1950x1950 | 2600/2700/3300x2000x2000 |
Weight | kg | 2400 | 3000 | 3200/3600/4500 | |
