Due to the impact of laser cutting machine, the market of turret punch machines is decreasing. However,

turret punch machines still are the key machine in the field of electric cabinet manufacturing.

The main advantages is flanging holes, drawing holes, stamping, reinforcement and blind processing.

laser cutting machine cannot replace turret punch machine in any way.

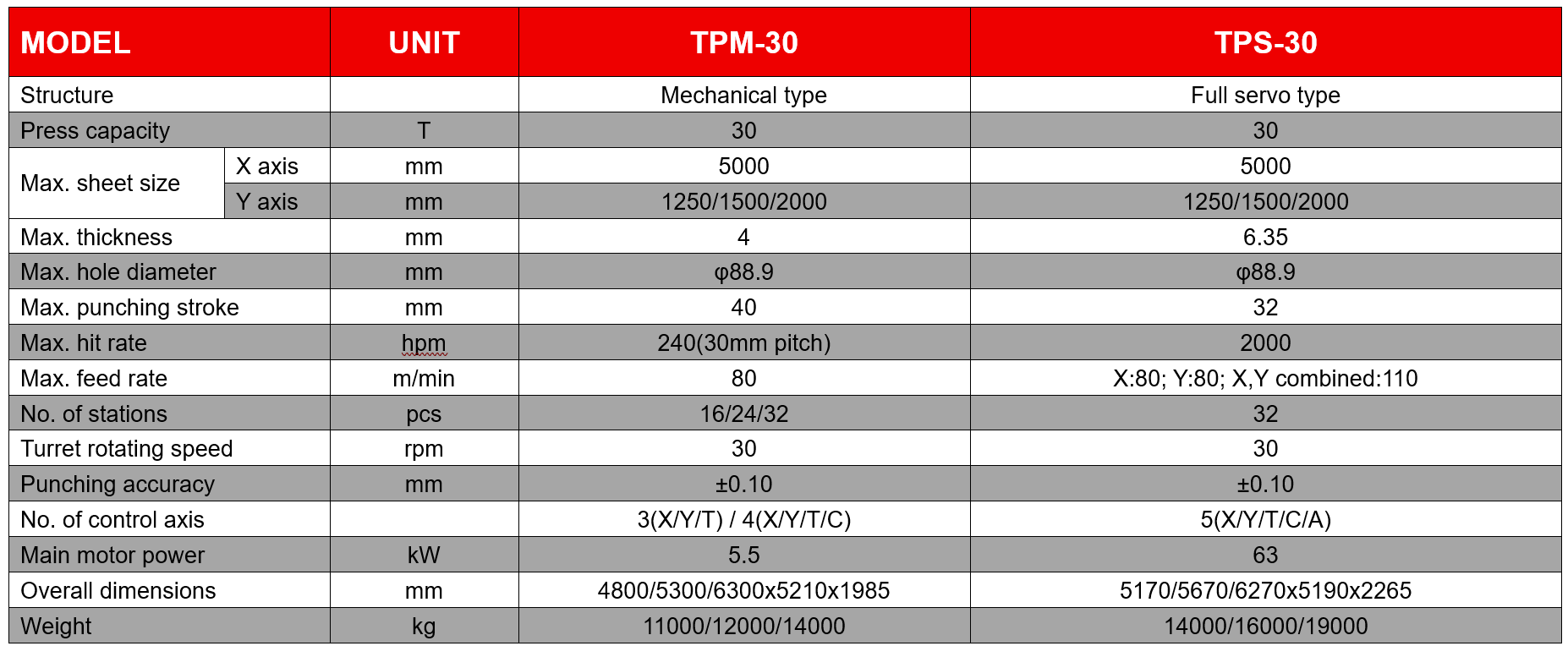

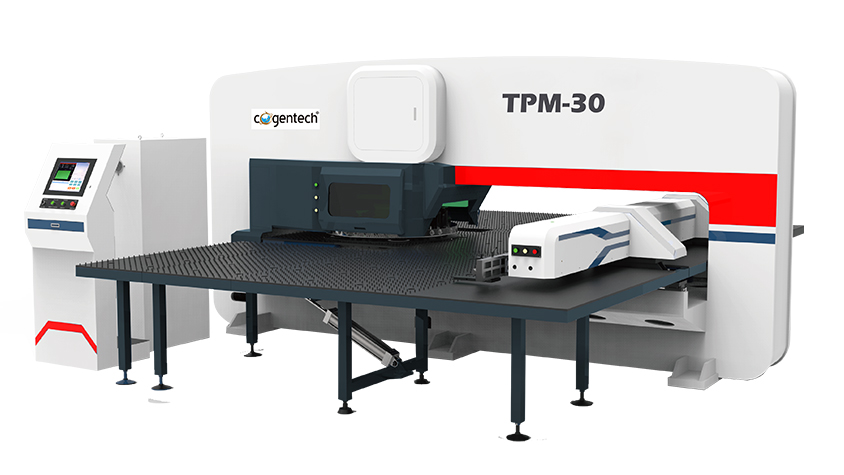

TPM-30 Features:

1. The stamping body adopt integrated fuselage, widened design, disposable welding, tempering, disposable forming.

2. Seamless worktable design, brush & steel ball combined, when the plate moved, it can avoid the plate and the worktable make a collision, guide rail, ball screw dust-proof protection

3. Folding worktable: side assist platform adopt cylinder control seamless design, convenient for change the tooling.

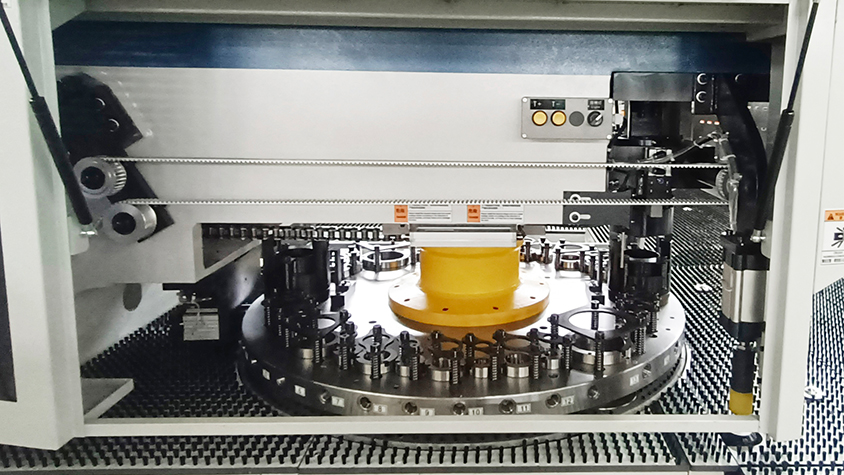

4. The turret is made of 40Cr, completed in large processing center.

5. The control system can automatically search, to select the most suitable tool to processing, and display stamping time, processing capacity, die life (punches), etc.

6. Carriage and beam integrated design, accurate positioning, moving more smoothly, to eliminate the X, Y-axis dynamic offset case.

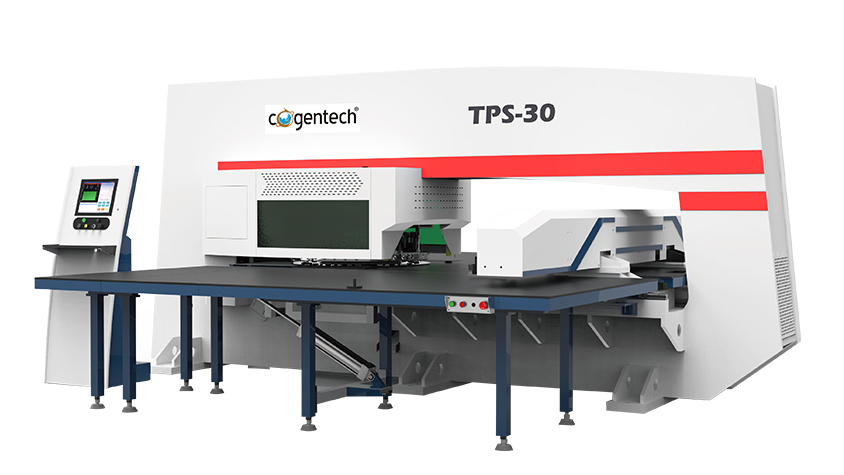

TPS-30 Features:

1. O-type closed integral welding press frame special for servo punch press, high rigidity and reliability.

2. The worktable surface with hard brush and steel ball, to lower down the noise while working and protect the surface of the sheet.

3. Seamless worktable design to avoid collision during sheet metal movement.

4. Folding table design, side auxiliary platform automatic folding control, easy to change tooling.

5. The pneumatic floatable clamps reduce the deformation of the plate.

6. Full auto indexed station: unique worm gear structure to ensure the accuracy of positive and negative bidirectional transmission.

7. Self-developed servo control system with strong compatibility and real-time update. Full electro servo transmission technology.

8. It can realize high-end processes, such as high efficiency and precision rolling press, rolling cutting, lettering.
