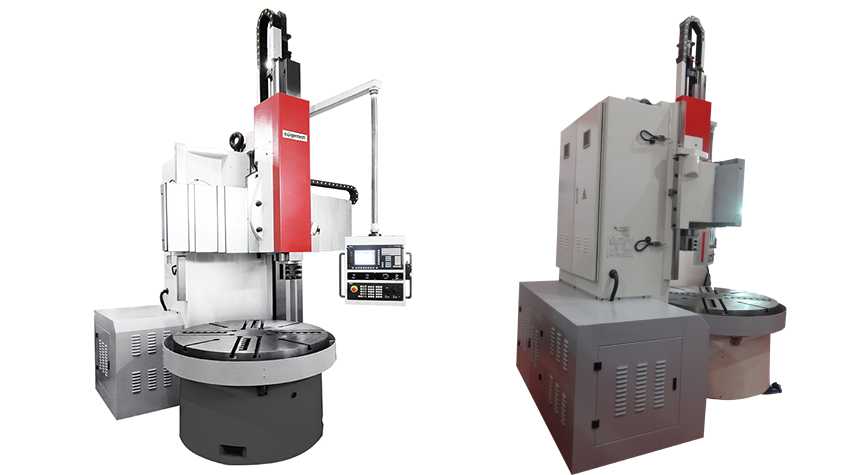

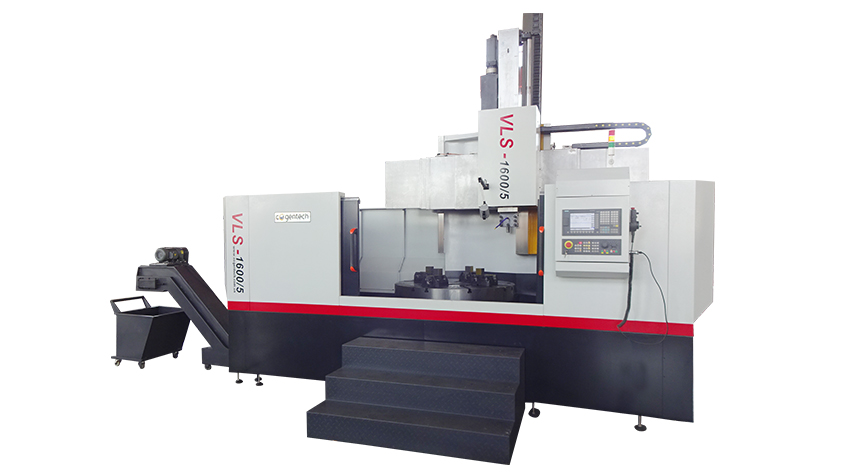

1. This CNC vertical lathe is advanced equipment with high performance, broad processing craft scope and high production efficiency. They can be used for mechanical processing such as rough and finishing machining to inside and outside cylindrical faces. Inside and outside circular conical surfaces. Hollows and different kinds of curve faces and notch cutting.

 2. The main shaft of workbench is centered by biserial short cylindrical roller bearing with high precision and adjustable diametric clearance. With the constant current and static pressure rack in axial direction. The workbench has the features of high running accuracy. Large carrying capacity and small thermal deformation.

3. The pedestal, workbench, lathe body and beam are made of ferrosteel with high strength and high wearing qualities, which are tempered to remove the internal stress and to keep their shapes from changing.

4. Column, cross beam and guide surfaces are all supersonic frequency quenching, quenching hardness HRAC48-55 degree.

5. The feeding of the lathe is driven by AC servomotor through hall screw transmitting motion. The beam and vertical tool posts are covered with sealing shield, which make the lathe more safe and easy to operate.

6. The main shaft of the lathe is driven by AC motor. With the 16 step speed changing mechanism to main shaft. The rotation rate of workbench can be changed in the scope.

7. Fully guard, chip conveyor and liquid coolant recovery device on request.
