STM-158 / STM-316 / STM-330
Description

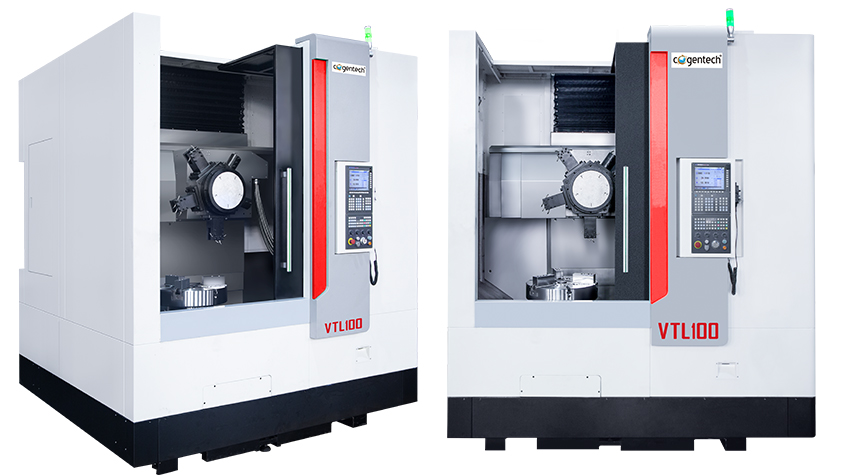

1.Built on cutting-edge technologies at home and abroad, the vertical lathe VTL100 is economical, efficient,
energy-saving , and environmentally friendly,the first choice for machining complex disc and short shaft parts in automobile , water pump, motor, and other industries
2. This machine adopts an extended heavy-duty rollerlinear guideway,which has good cutting rigidity,dynamic response performance , good precision tetention,and a long service lift.
3. This machine can turn various threads , arcs, cones, and inner and outer curved surfacesof rotating parts, It can also meet the speed requirement for cutting ferrous and non-ferrous metal materials.
4. This machine is mainly used for machining large and heavy workpieces with large radial dimensions, small axial dimensions, and complex shapes.Additional devices can be installed for milling or grinding.
Configuration | Unit | VTL100 | |
Machining Capacity | Maximum Swing Over Bed | mm | ø/1000 |
Max Machining Height | mm | 800 | |
Max Machining Diameter | mm | ø/1000 | |
Spindle | Spindle Type | A2-15 | |
Spindle Speed Rang | r/min | 50-1200 | |
Spindle Shift Mode | Servo | ||
Spindle Output Torque | N·m | Low Speed: 1050 High Speed: 882 | |
Main Motor Power | kW | Low Speed: 22 High Speed: 37 | |

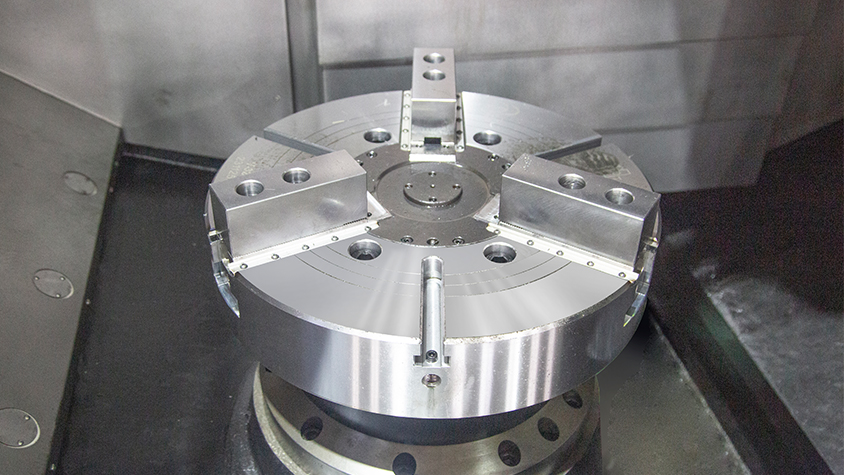

Chuck Type | Hydraulic None Through Chuck | ||
Chuck Size | inch | 21 | |
Feed Rate | Rapid Traverse Speed On X-axis | m/min | 20 |
Rapid Traverse Speed On Z-axis | m/min | 15 | |
Servo Motor Torque On X-axis | Nm | 22 | |
Servo Motor Torque On Z-axis | Nm | 30 | |
X-axisTravel | mm | 650 | |
Z-axis Travel | mm | 880 | |
Guideway Type | Roller Linear Guideway | ||

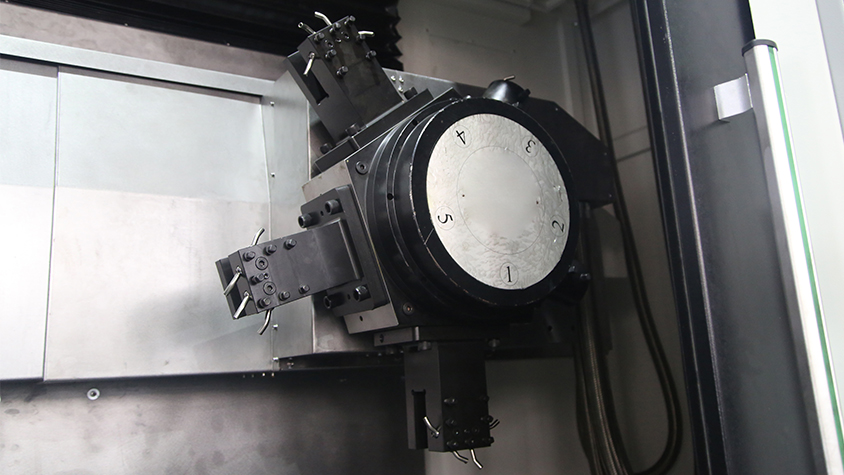

Turret | Turret Type | Vertical 5 Tool Post Turret | |
| Turning Tools /Boring Bar Size | mm | 32*32 / ø50 | |
Power Source | Total Rated Power | KVA | 40 |
Total Rated Current | A | 85 | |
Dimension | Machine Weight | KGS | 13000 |
Machine Dimension（L*W*H） | mm | 2400×3600×3600 | |
