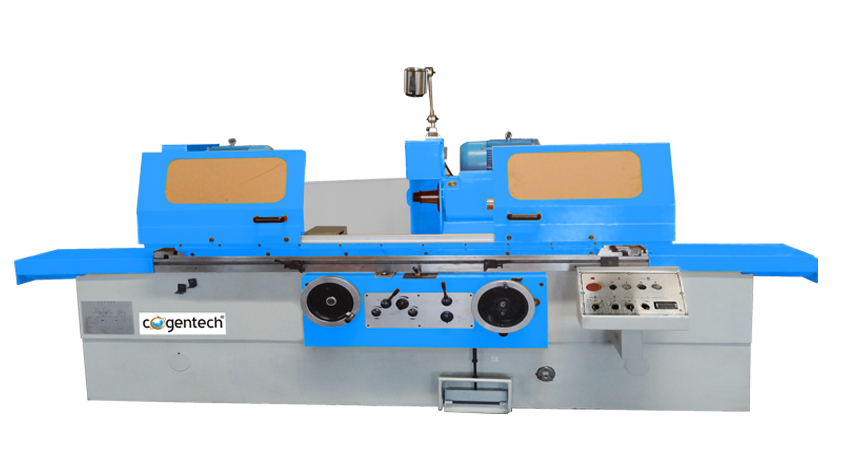

1. The overall structure of the machine tool adopts T-shaped layout with good rigidity and high precision.

2. The workhead is of box-shaped structure and is fastened to the left side of the workbench by two M20 bolts. Because of the dead-center device, good rigidity, high grinding quality.

3. The tailstock is installed to the right side of the workbtable by two M20 bolts. Tailstock frame with dresser on the left side, easy to operate.

4. The wheelhead is composed of upper and lower parts, and its internal spindle support adopts dynamic and static support structure, and the spindle works well.

5. The worktable is composed of the upper table and the lower table, and its longitudinal movement can be driven by hydraulic stepless transmission, or can be driven by hand wheel.

6, The transverse feed mechanism is in the front of the bed, with automatic cycle feed function.

7. For grinding cylindrical or conical rotation cylindrical surface, for mass production.
