CGM-2060P ~ CGM-32150P    Features

 1. Advanced X,Z-axes feeding mechanism:

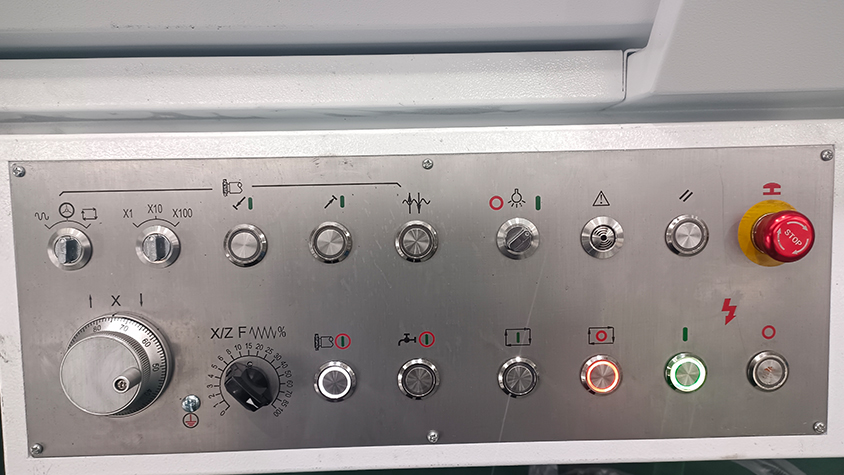

(1.) Equipped with an electronic handwheel instead of the traditional mechanical handwheel to realize easy manual feeding operation.

(2.)The X,Z-axes are standardly equipped with a precision ball screw and servo motor drive, which has many advantages such as high precision, low failure rate, and smooth feeding.

(3.)The front and rear feeding of the grinding wheel (X-axis) is standardly equipped with linear guides to obtain excellent feeding precision, high rigidity and fast response.

2. Advanced mechanical structure:

(1.)The main structural parts of the machine tool are optimally designed using advanced finite element analysis to improve the overall rigidity and working precision of the machine tool.

(2.)The newly designed mechanical structure enables this series of cylindrical grinders to have excellent working performance far exceeding that of traditional cylindrical grinders.

3.High-precision spindle unit:

The spindle unit supported by ultra-precision ball bearings has the advantages of high rigidity, high rotation precision, maintenance-free, and long precision life.

4. Unprecedented convenient operation experience:

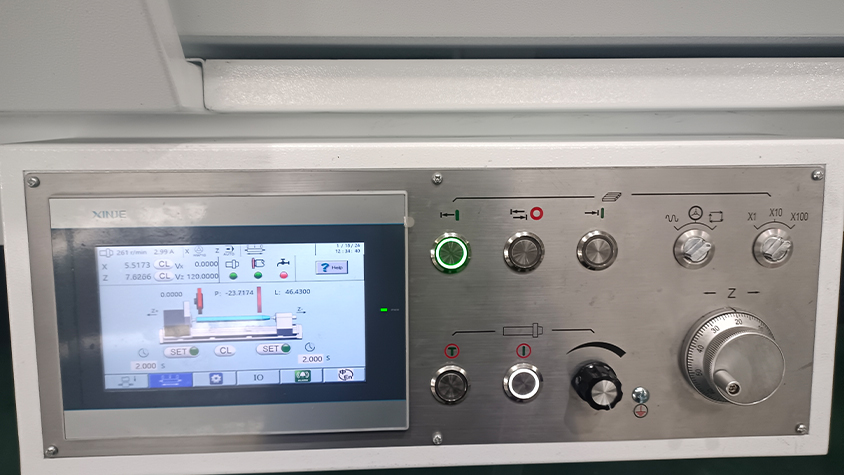

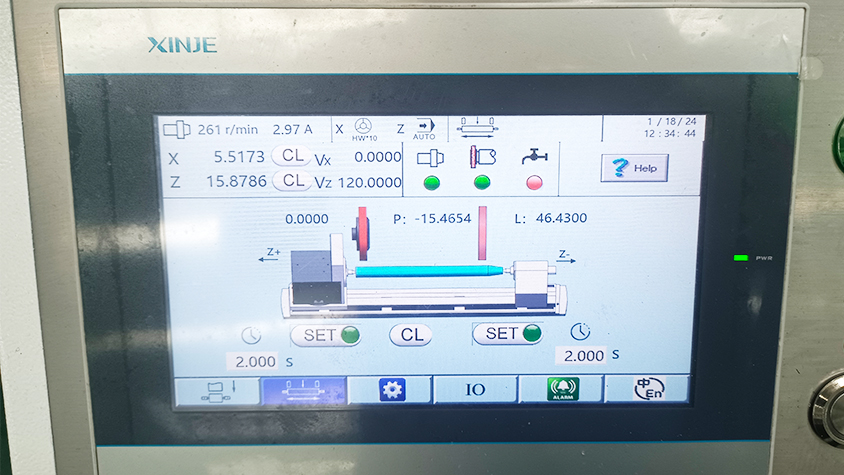

1. The functionally rich grinding control menu elaborately developed by electrical engineers is embedded in the PLC and touch screen. No programming is required, and even old masters accustomed to operating traditional grinders can instantly enjoy the unprecedented easy and convenient operation experience. Moreover, various commonly used grinding control menus greatly enrich the functions of traditional cylindrical grinders, making work more efficient, labor intensity greatly reduced, and it also makes it possible for one person to monitor multiple machines.

2. PLC: Standard Chinese brand XINJE, optional Siemens.

3. From now on, you will no longer worry about:
No complex mechanical structure!
No various failures, drips, or leaks of the hydraulic system!
No complicated and heavy operations!

5. Protection :

The newly designed structure combined with a luxurious semi-enclosed shield brings an unprecedented level of three-proofing (waterproof, dustproof, and oilproof), completely eliminating losing, dripping and leaking.
