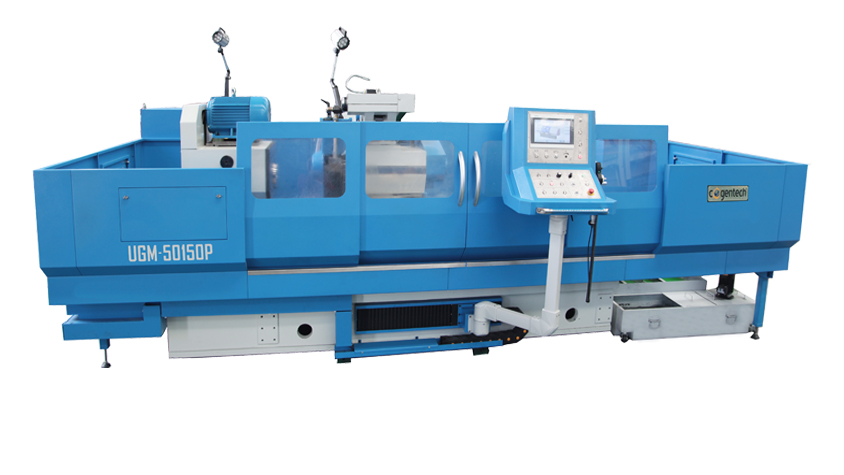

UGM-32200P ~ UGM-63600P Features:

1. Newly designed machine tool structure:

(1) This machine adopts an entirely new structural design, where the worktable is fixed and the wheelhead performs longitudinal movement. Compared with the traditional worktable-moving structure, this design has many advantages.

(2) The main components of the machine tool are optimally designed using advanced finite element analysis, providing super stability for precision grinding.

(3) The new transmission design enables this series of machine tools to deliver excellent working performance.

2. Advanced functions and unprecedented user-friendly operation:

(1) The advanced servo + PLC + touch screen system brings unprecedented operational convenience and automatic grinding control.

(2) The color touch screen embeds various grinding control menus elaborately developed by engineers, making work so simple and efficient!

(3) PLC: Standard Chinese brand XINJE, optional Siemens.

3. Advanced X,Z-axes feeding mechanism:

(1) The X,Z-axes are standardly equipped with AC servo motor transmission, ensuring more precise and smooth movement, and adopting a PLC + touch screen control system.

(2) The front and rear feeding of the wheelhead (X-axis) uses linear guides, which have the advantages of high precision, high rigidity, and fast response speed.

(3) A standard electronic handwheel is provided, making manual operation extremely easy and simple compared with traditional grinding machines.

4. High-precision spindle unit:

(1) The external grinding spindle adopts an ultra-precision angular contact bearing structure, featuring high precision, high rigidity, maintenance-free operation, and a long service life (the entire series can be optionally equipped with advanced dynamic and static pressure spindle units).

(2)  Equipped with a high-speed 10000rpm internal grinding spindle unit.

5. Adopting the wheelhead-moving structure instead of the traditional worktable-moving structure has many advantages:

(1) The overall rigidity and stability of the machine body are stronger, making it especially suitable for heavy-load and heavy-cutting working conditions.

(2) The fixed worktable is more suitable for heavy-load conditions and will not affect precision due to changes in load.

(3) It saves at least one-third of the working space occupation.
