TORNOS-410V
Description

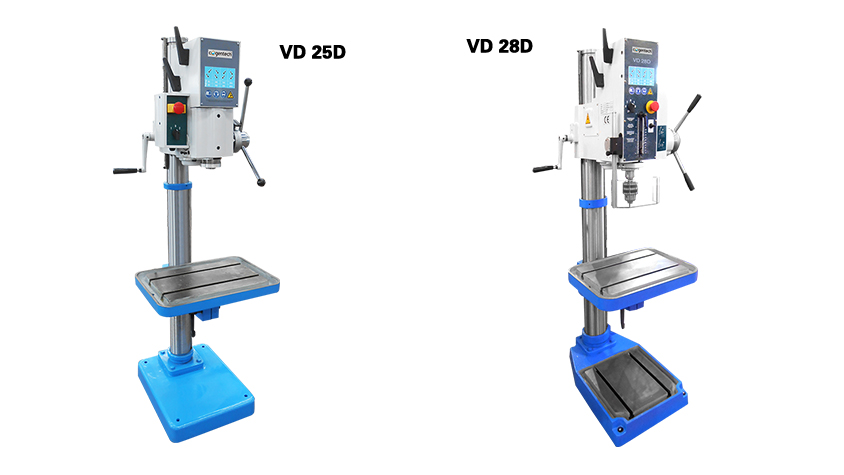

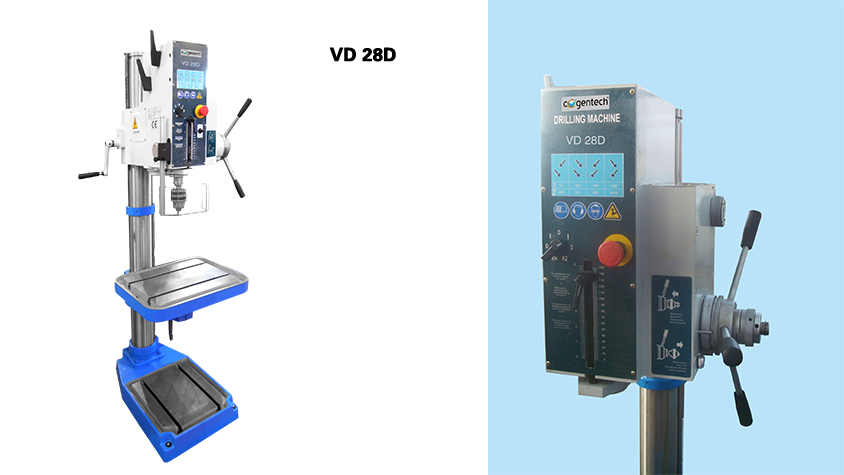

MODEL | Unit | VD 25B | VD 25D | VD 28D | |
Max. drilling dia. | mm | Φ25 | Φ25 | Φ28 | |
Tapping capacity(steel/iron) | mm | MT.3 | M10/M16 | M12/M16 | |
Spindle taper | 125 | MT.3 | MT.3 | ||
Spindle travel | mm | 105～2900(8 steps) | 125 | 150 | |
Spindle speeds (8 steps) | 50Hz | rpm | -- | 105～2900 | 75～3010 |
60Hz | rpm | 255 | 130～3200 | 90～3610 | |
Spindle feeds (4 steps) | mm/r | -- | -- | ||
Spindle feed type | --400 | Manual | Mechanical | ||
Distance from spindle to table | mm | 100 | 840 | 805 | |
Distance from spindle to base | mm | manual | 950～1250 | 975～1250 | |
Column diameter | mm | -- | 100 | 100 | |
Table size | mm | 570x340 | 500x350 | 500x350 | |
Base size | mm | 14 | 500x400 | 670x400 | |
Motor power | KW | 0.65/0.9 | 0.65/0.9 | 0.9/1.2 | |
Packing size | mm | 940x460x730 | 1670x570x720 | 1740x670x850 | |
N.W./G.W. | kg | 150/180 | 190/220 | 210/235 | |
