Front Adjustable Live Tool Holder (Manual B axis)
Description
Features:
1. Milling, drilling, tapping, boring, reaming.
2. Gear driving and strong cutting power.
3. Headstock can rorate 360º and tilt ±45º
4. Heavy-duty tapered roller bearing spindle.
5. Mirco feed precision.
6. VD30N, VD40N spindle auto-feeding.
Optional:
1. Coolant system.
2. Halogen lamp.
3. CE electrical control box(tapping).
4. 2-step motor.
5. DRO.
6. Table power feed.

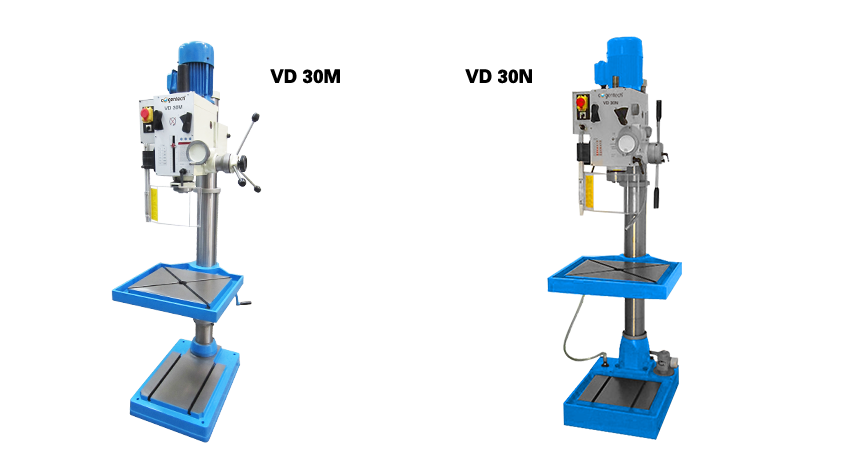

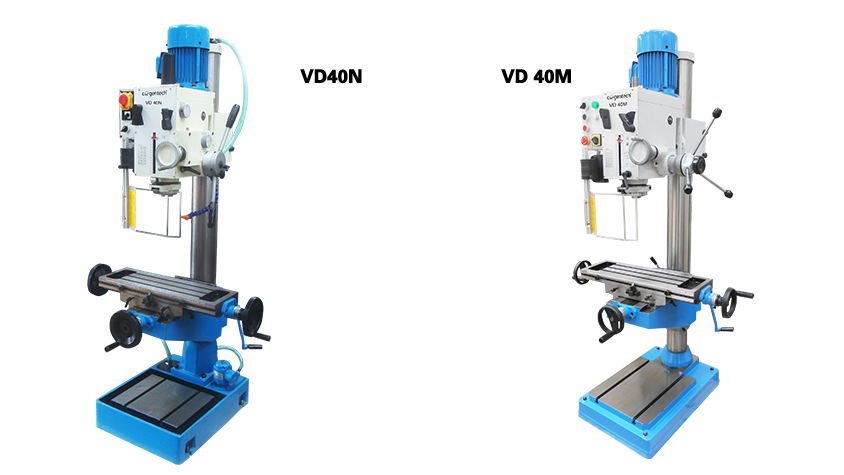

MODEL | Unit | VD 30M | VD 30N | VD 40M | VD 40N | ||||
Drilling capacity | mm | Φ32 | Φ40 | ||||||
Tapping capacity | M20 | M24 | |||||||
Milling capacity | mm | -- | Face:80, End:32 | ||||||
Spindle taper | MT.3/MT.4/R8 | MT.3/MT.4/R8 | |||||||
Spindle travel | mm | 120 | 120 | ||||||
Spindle speeds | rpm | 75~1600 (6 steps) | 75~1600 (6 steps) | ||||||
rpm | 75~3200 (12 steps) | 75~3200 (12 steps) | |||||||
Spindle feeds | mm/r | -- | 0.1,0.18,0.26 | -- | 0.1,0.18,0.26 | ||||
Distance from spindle to column | mm | 260 | 260 | ||||||
Distance from spindle to table | mm | 610 | 610 | ||||||
Distance from spindle to base | mm | 1180 | 1180 | ||||||
Table size | mm | 540x470 | 600x190 | 730x210 | |||||
Table travel (X/Y) | mm | -- | 370x190 | 500x190 | |||||
Column diameter | mm | Φ115 | Φ115 | ||||||
Main motor power | KW | 1.1; 0.85/1.1 | 1.1; 0.85/1.1 | ||||||
Overall dimensions | mm | 740x720x1830 | 820x720x1830 | ||||||
N.W/G.W. | kg | 320/370 | 340/390 | 340/390 | 360/410 | ||||
