IGM-100 / IGM-200 / IGM-100-60
Description
Features:
1. European and American style, nice appearance.
2.Compact structure, cast iron body for industry.
3.Surface treated by multi-process spray treatment.

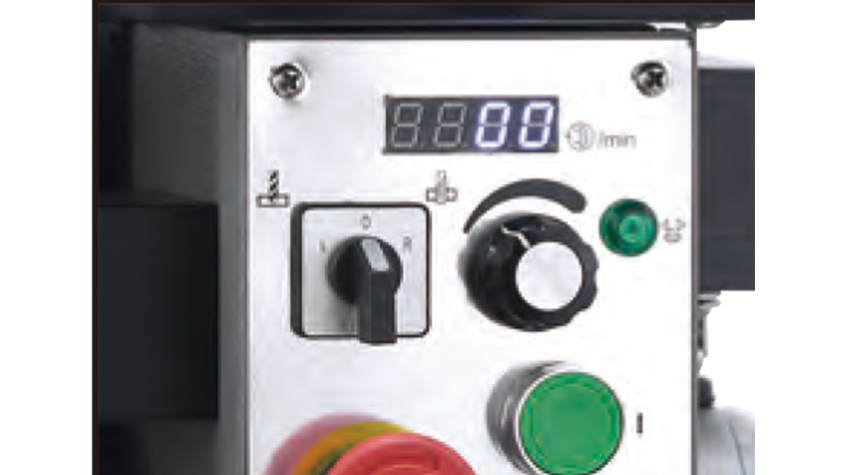

4.2-step variable speed, digital display in the panel.
5.With mandatory reversal function.

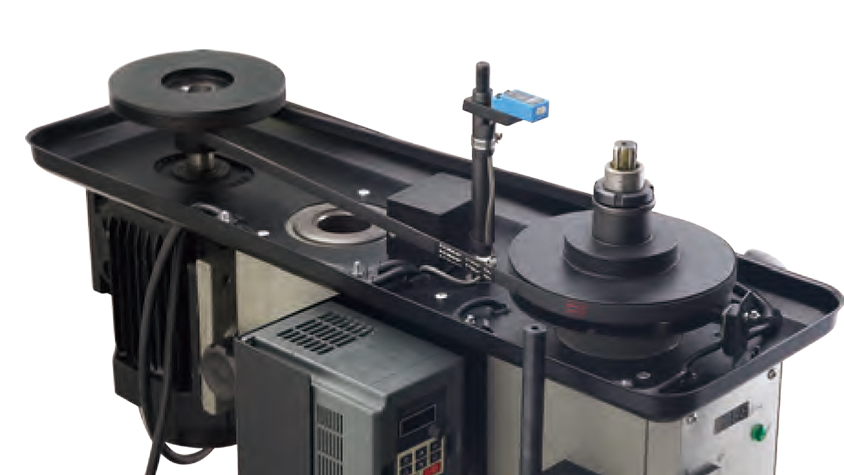

6.Magnetic proximity switch in the pulley box.
7.45°swivel table.
8.Lifting headstock.
9. CE spindle chuck guard.

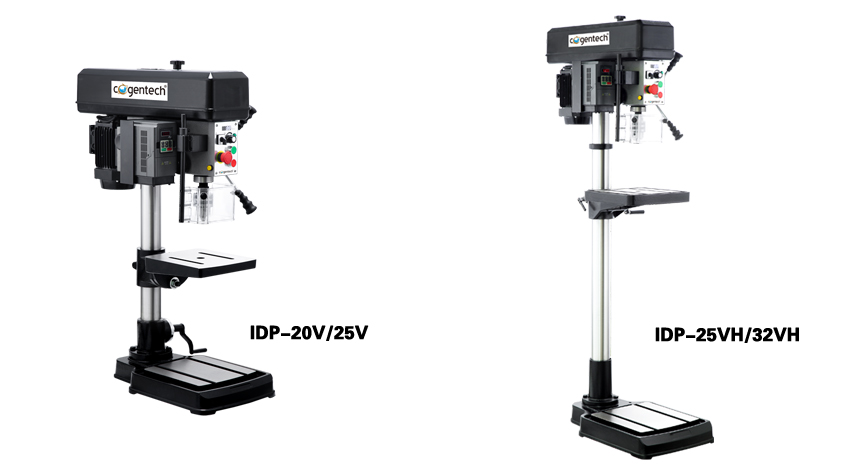

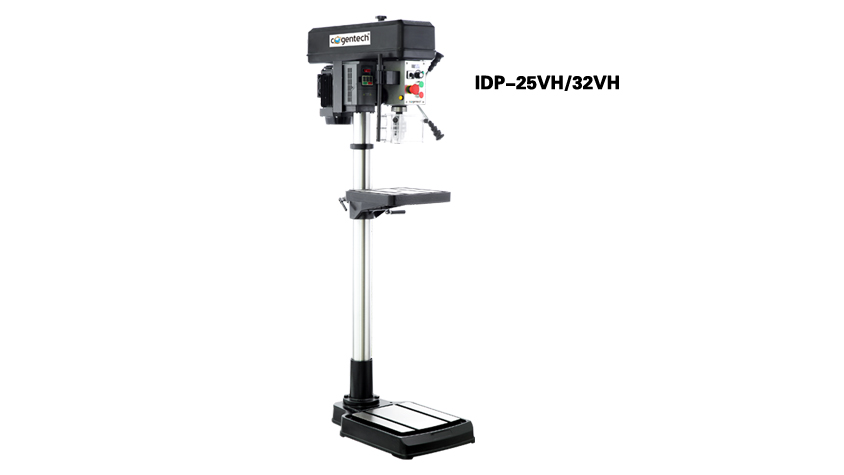

MODEL | UNIT | IDP-20V | IDP-25V | IDP-25VH | IDP-32V |
Max. drilling capacity | mm | Φ20 | Φ25 | Φ25 | Φ32 |
Max. tapping capacity | mm | M12 | M16 | M12 | M16 |
Swing | mm | 410 | 510 | 410 | 510 |
Spindle taper | MT.2 | MT.3 | MT.2 | MT.3 | |
Spindle travel | mm | 100 | 135 | 100 | 135 |
Spindle speeds (2 steps) | rpm | 0-2100 | 0-2100 | 0-2100 | 0-2100 |
Column dia. | mm | 70 | 85 | 80 | 98 |
Distance from spindle to table | mm | 300 | 280 | 850 | 860 |
Distance from spindle to base | mm | 540 | 540 | 1160 | 1200 |
Table size | mm | 283x248 | 338x300 | 320x320 | 410x380 |
Motor power | kW | 0.75 | 1.1 | 0.75 | 1.1 |
Overall height | mm | 1010 | 1100 | 1630 | 1770 |
Packing size | mm | 1055x610x380 | 1595x710x485 | 1525x655x440 | 1595x710x610 |
N.W./G.W. | kg | 107 | 161 | 129 | 238 |
