CTP-R
Description

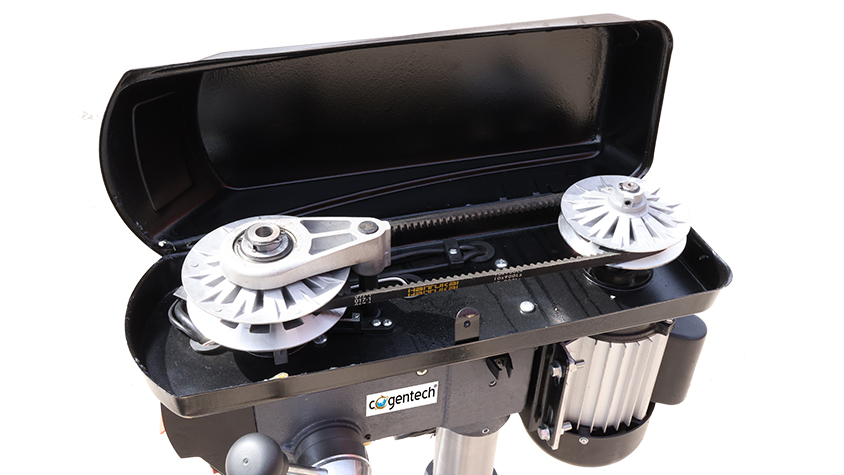

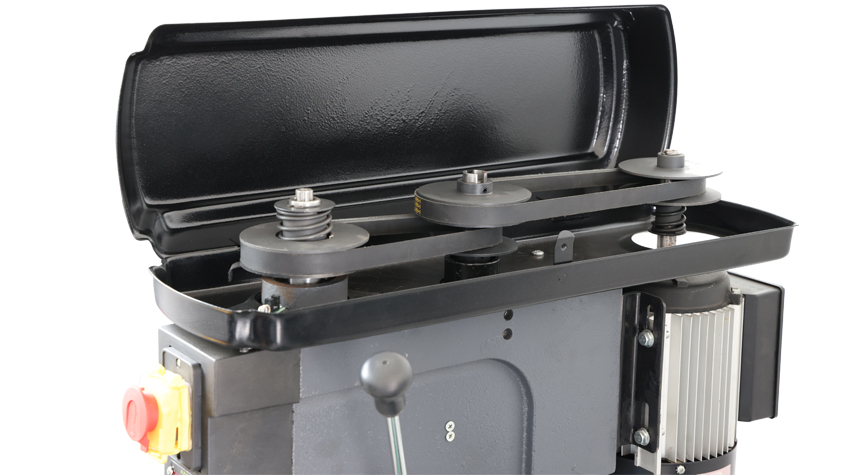

1.Slant belt cover.

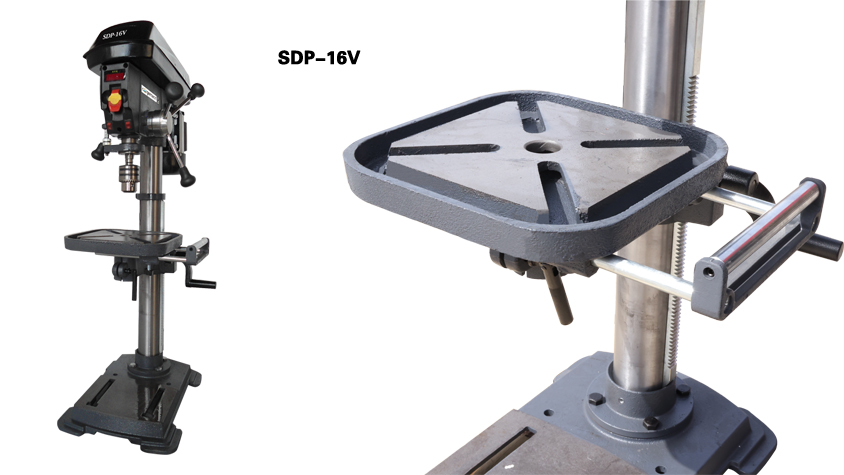

2.SDP-16V with extension table.
3.Speed digital display.
4.CE spindle chuck guard.

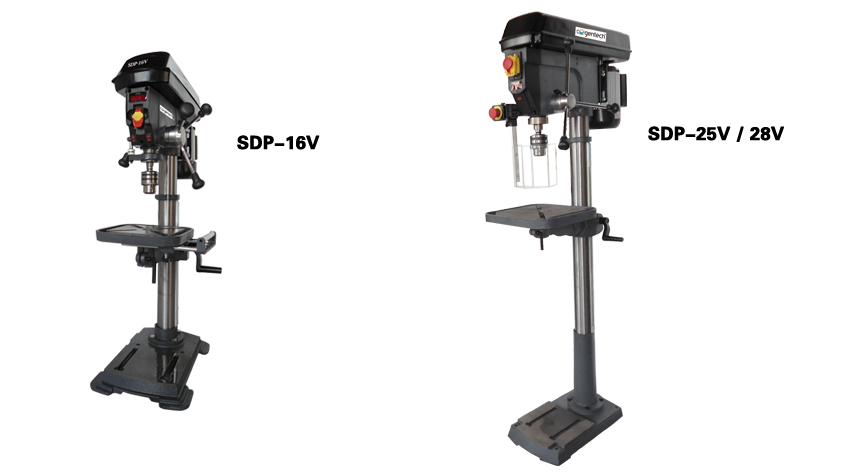

MODEL | UNIT | SDP-16V | SDP-25V | SDP-28V |
Max. drilling capacity | mm | Φ16 | Φ25 | Φ28 |
Swing | mm | 305 | 430 | 430 |
Spindle taper | B16/JT33 | MT.2 or MT.3 | MT.3 | |
Spindle travel | mm | 80 | 120 | 120 |
Spindle speeds (variable) | rpm | 450-2500 | 300-3000 | 300-3000 |
Column dia. | mm | 65 | 92 | 92 |
Table size | mm | 240x240 | Φ290 or 330x330 | Φ290 or 330x330 |
Base size | mm | 444x294 | 480x280 | 480x280 |
Motor power | kW | 0.55 | 0.75 | 1.1 |
Overall height | mm | 940 | 1635 | 1635 |
Packing size | mm | 734x500x275 | 1395x520x245 | 1430X640X315 |
N.W./G.W. | kg | 36/38 | 67/72 | 81/84 |
