GMC-1310
Description
Features:
1. DP-13 and DP-16 are aluminum belt pulley. Other models are cast iron belt pulley.
2. DP-13 and DP-16 are dry worktables. Other models are wet worktables.
3. Optional: Belt cover with micro switch; Laser alignment; Working light; Spindle cover; Machine vice.

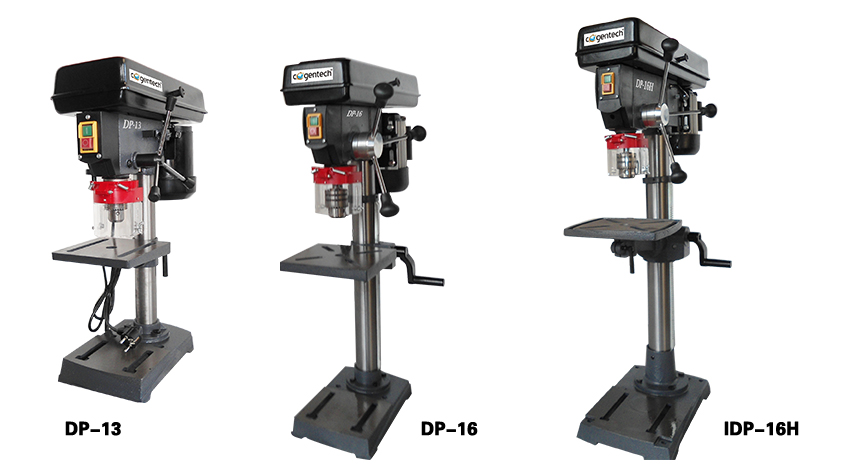

MODEL | UNIT | DP-13 | DP-16 | DP-16H |
Max. drilling capacity | mm | 13 | 16 | 16 |
Swing | mm | 208 | 252 | 340 |
Spindle taper | B16/JT33 | B16/JT33 | MT.2 | |
Spindle travel | mm | 50 | 60 | 80 |
Spindle speeds | rpm | 500-2500 (5 steps) | 230-2470 (12 steps) | 180-2740 (12 steps) / 220-3480 (16 steps) |
Table size | mm | 165x165 | 197x202 | Φ290 |
Base size | mm | 295x186 | 348x210 | 500x285 |
Column dia. | mm | 46 | 59.5 | 70 |
Motor power | kW | 0.18/0.25/0.35/0.45 | 0.45 | 0.45/0.55/0.65 |
Overall height | mm | 580 | 840 | 1610 |
Packing size | mm | 456x219x350 | 680x420x240 | 1400x494x245 |
N.W./G.W. | kg | 11/12 | 23/25 | 46/51 |
