DP-13
Description

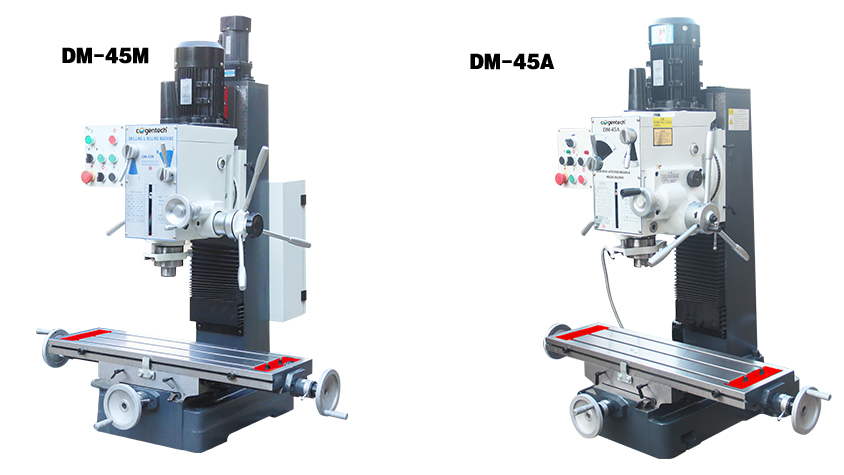

1. DM-45M: Manual feed.
2. DM-45A: Auto feed, worm gear and clutch construction.

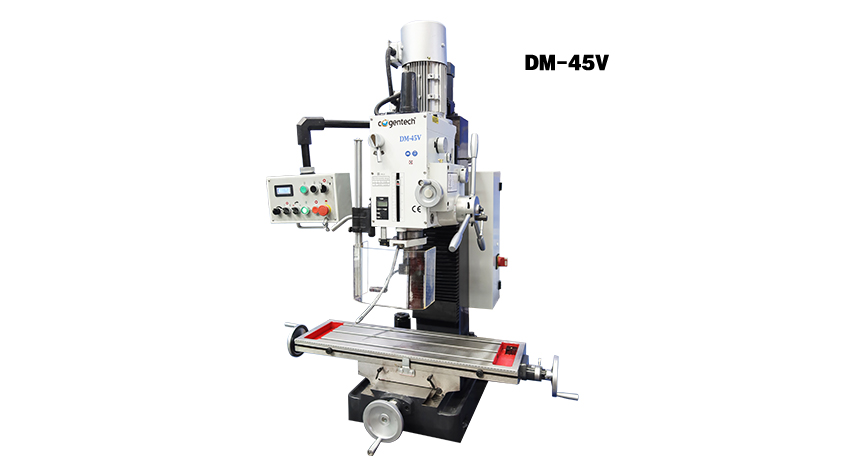

3. DM-45V: Auto feed, variable frequency spindle motor. The knob controls the infinite speed change.

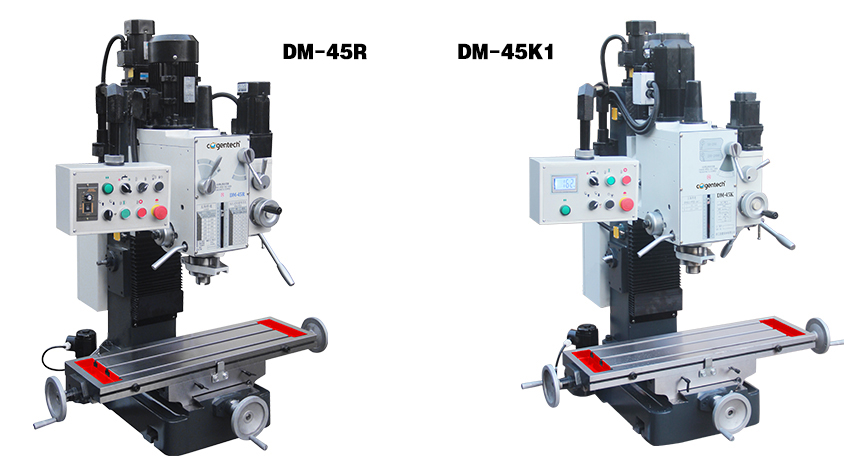

4. DM-45R: Auto feed by reducer. The knob controls the infinite speed change.
5. DM-45K: Spindle motor and auto feed motor are permanent magnetic motors, touch screen control, variable speed.
6. There are 2 types of operation boxes: Cantilever box and Button electrical box.
7. Optional: Headstock lifting motor; Table power feed; Coolant system; DRO; Foot stand and oil tray; 8pc/set milling chuck; HSS 20pc/set milling cutter; φ63mm face milling cutter; Machine vice. CE spindle guard.
MODEL | UNIT | DM-45M | DM-45A | DM-45R | DM-45V | DM-45K |
Max. drilling capacity (iron/steel) | mm | 45/32 | 45/32 | 45/32 | 45/32 | 45/32 |
Max. face mill capacity | mm | 80 | 80 | 80 | 80 | |
Spindle travel | mm | 120 | 110 | 110 | 110 | 110 |
Distance from spindle to table | mm | 470 | 470 | 470 | 460 | 470 |
Distance from spindle to column | mm | 260 | 260 | 260 | 260 | 260 |
Spindle taper | MT.4 or R8 | MT.4 or R8 | MT.4 or R8 | MT.4 or R8 | MT.4 or R8 | |
Spindle speeds | rpm | 95-1600 (6 steps) | 50-1250 (6 steps); 50-2500 (12 steps) | 50-250,250-2500 (2-gearshift, variable speed) | ||
Table size | mm | 820x240 | 820x240 | 820x240 | 820x240 | |
Table travel | mm | 590x190 | 590x190 | 590x190 | 590x190 | |
Main motor power | kW | 1.1 or 1.5； 0.85/1.1 | 1.1 or 1.5； 0.85/1.1 | 1.5 | 1.5 | |
Packing size | mm | 1090x970x1460 | 1090x970x1460 | 1090×970×1940 | 1090x970x1460 | |
Weight | kg | 320/360 | 360/405 | 330/375 | 380/435 | 360/405 |
