HSM-900
Description
1. Milling, drilling, tapping, boring, reaming.
2. Headstock tilts 180 degrees.
3. Micro feed precision.
4. Heavy-duty tapered roller bearing spindle.
5. Positive spindle lock.
6. Adjustable gibs on table.
7. Geared drive, lower noise.
8. Accurate position, strong rigidity, strong cutting power.
9. DM-45H: lifting motor (optional)
Optional:
1. Steel foot stand.
2. Coolant system.
3. Halogen lamp.
4. Table power feed.
5. CE electrical control box(Tapping).
6. Auto feeding spindle.
7. 2-speed motor.
8. DRO.

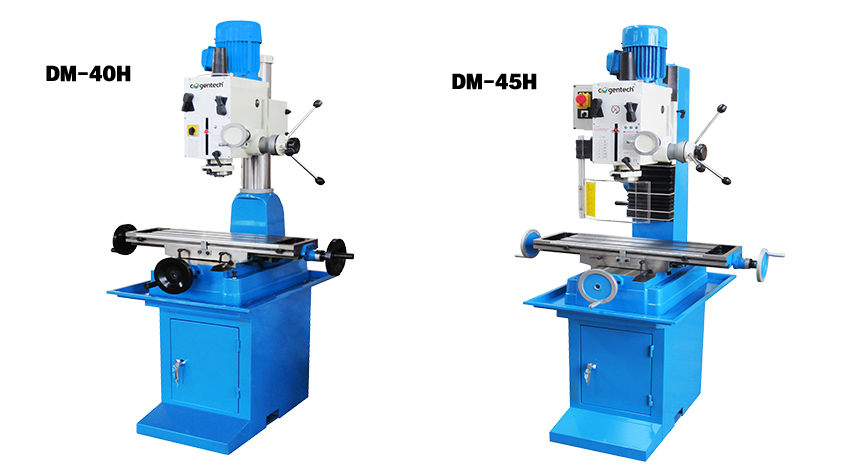

MODEL | Unit | DM-40H | DM-45H | |
Drilling capacity | mm | 40 | 45 | |
Face milling | mm | 80 | 80 | |
Vertical milling | mm | 32 | 32 | |
Distance from spindle to table | mm | 470 | 470 | |
Spindle taper | MT.3, MT.4 or R8 | MT.3, MT.4 or R8 | ||
Spindle speeds (6 steps) | 50Hz | rpm | 75~1600 | 75~1600 |
60Hz | rpm | 90~1970 | 90~1970 | |
Spindle travel | mm | 120 | 120 | |
Table size | mm | 730x210 | 800x240 | |
Table travel | mm | 500x230 | 565x230 | |
Motor power | KW | 1.1 | 1.1 | |
Packing size (Machine, Stand) | mm | 820x760x1150 740x420x650 | 850x760x1150 740x420x650 | |
N.W./G.W. | kg | 340/400 | 380/440 | |
