SL-265A
Description
Features:
1. Accurate position, strong rigidity, strong cutting power.
2. Milling, drilling, tapping, boring, reaming.
3. Heavy-duty tapered roller bearing spindle
4. Headstock up and down motorized.
5. Micro feed precision.
6. Geared drive, lower noise
7. With iron foot stand.
8. DM-45K with auto-feeding spindle.
Optionals:
1. Coolant system.
2. Table power feed.
3. Milling chuck.
4. Machine vice.
5. CE norms.
6. DRO.
7. Halogenlamp.

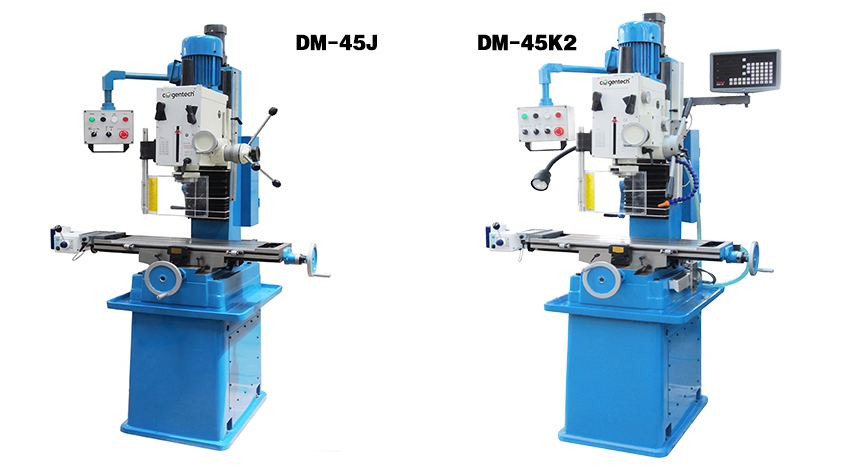

MODEL | Unit | DM-45J | DM-45K |
Drilling capacity | mm | 45 | 45 |
Face milling | mm | 80 | 80 |
Vertical milling | mm | 32 | 32 |
Spindle taper | MT.4, R8 | MT.4, R8 | |
Spindle travel | mm | 120 | 120 |
Spindle speed | rpm | I: 75~1600 (6 steps), II: 150~3200 (6 steps) | |
Auto-feeding | mm/r | -- | 0.1;0.18;0.26 |
Table size | mm | 800x240 | 800x240 |
Table travel | mm | 565x230 | 565x230 |
Distance from spindle to table | mm | 470 | 460 |
Head tilting angle | degree | ±90° | ±90° |
Motor power | KW | 0.85/1.1 (2-speed motor) | |
Packing size | mm | 1240x960x2240 | 1240x960x2240 |
N.W./G.W. | kg | 590/680 | 610/700 |
