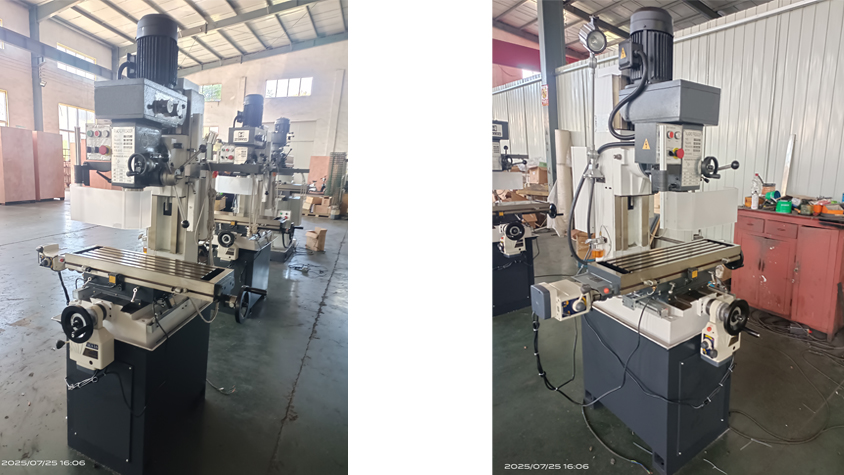

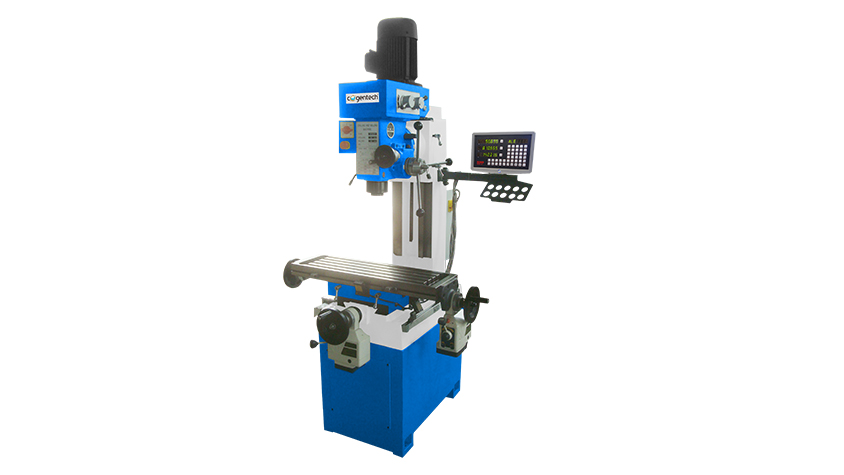

BF-65P
Description
optional:
1. Coolant system.
2. Power feeds.
3. Swivel table.
4. 1000x240mm big table.
5. DRO.
6. CE norms.
MODEL | Unit | ZX50CF |
Drilling capacity | mm | Φ50 |
Face milling | mm | 100 |
Vertical milling | mm | 25 |
Boring | mm | 120 |
Tapping | mm | M16 |
Spindle taper | MT.4/ISO30/ISO40 | |
Spindle speeds (8 steps) | rpm | 115~1750 |
Spindle travel | mm | 120 |
Distance from spindle to table | mm | 50~410 |
Table size | mm | 800x240 |
Table travel | mm | 400x230 |
Motor power | KW | 0.85/1.5 |
Overall dimensions | mm | 1270x950x1800 |
N.W./G.W. | kg | 500/600 |
