VLS-1600/5
Description

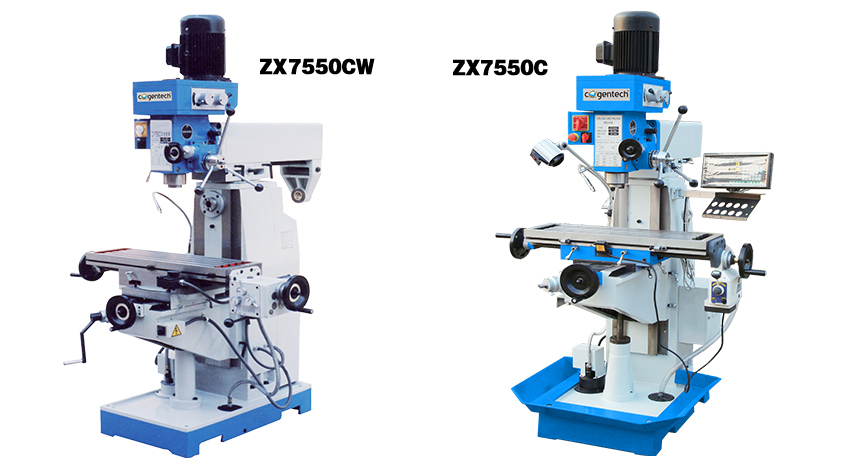

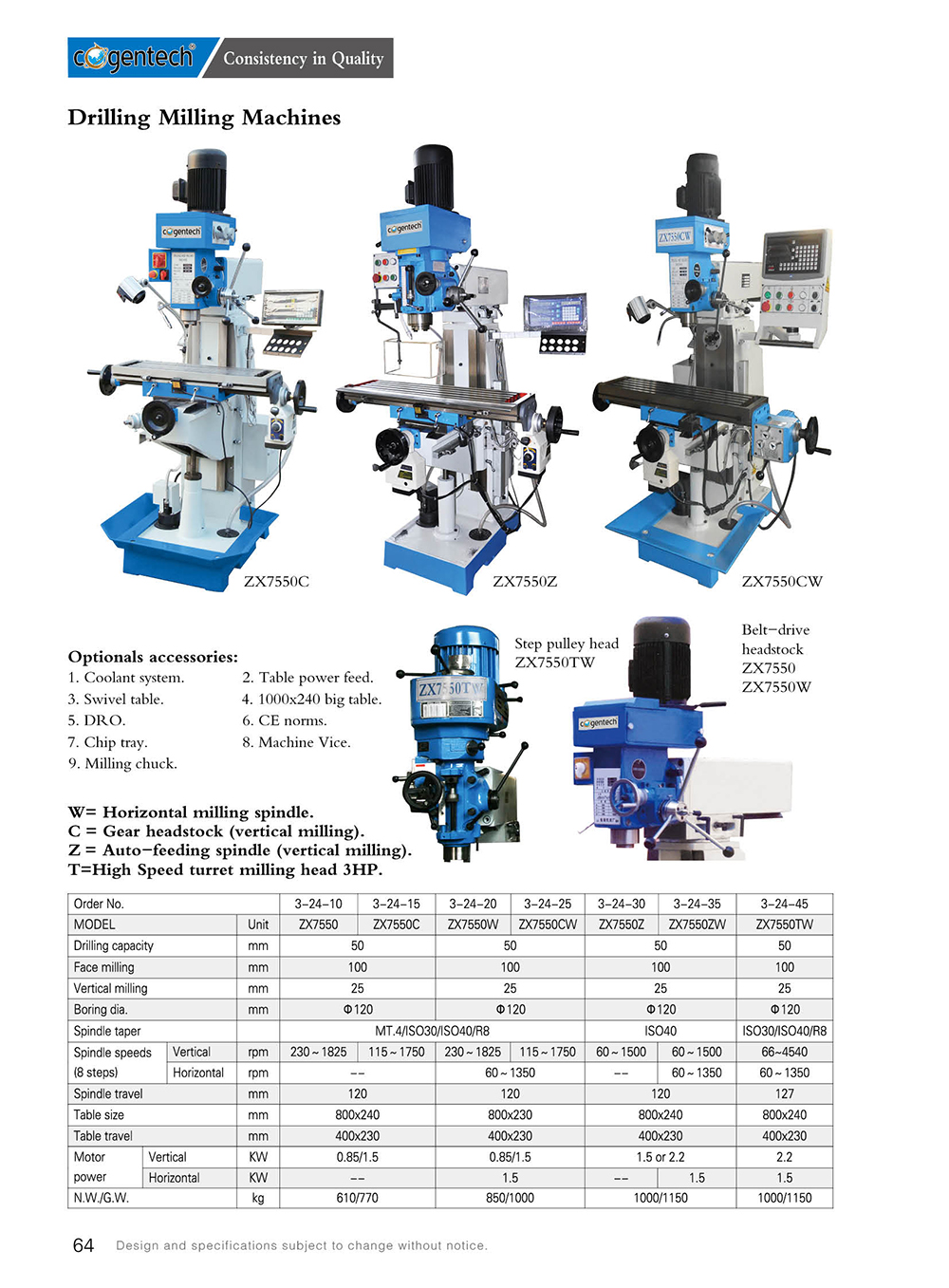

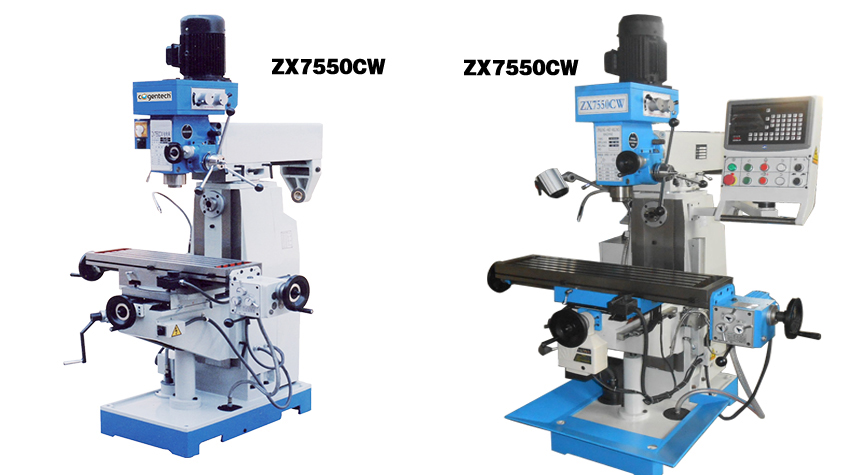

MODEL | Unit | ZX7550 | ZX7550C | ZX7550W | ZX7550CW | ||
Drilling capacity | mm | 50 | 50 | ||||
Face milling | mm | 100 | 100 | ||||
Vertical milling | mm | 25 | 25 | ||||
Boring dia. | mm | Φ120 | Φ120 | ||||
Spindle taper | MT.4/ISO30/ISO40/R8 | ||||||
Spindle speeds (8 steps) | Vertical | rpm | 230～1825 | 115～1750 | 230～1825 | 115～1750 | |
Horizontal | rpm | -- | 60～1350 | ||||
Spindle travel | mm | 120 | 120 | ||||
Table size | mm | 800x240 | 800x230 | ||||
Table travel | mm | 400x230 | 400x230 | ||||
Motor power | Vertical | KW | 0.85/1.5 | 0.85/1.5 | |||
Horizontal | KW | -- | 1.5 | ||||
N.W./G.W. | kg | 610/770 | 850/1000 | ||||

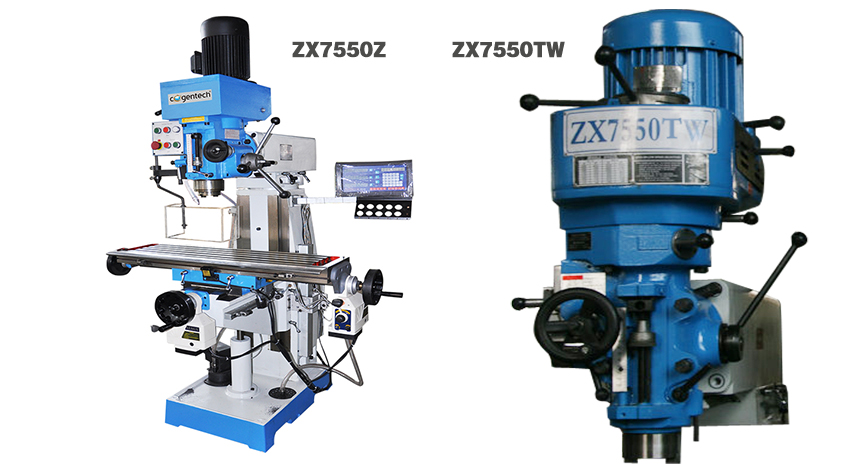

MODEL | Unit | ZX7550Z | ZX7550ZW | ZX7550TW | ||
Drilling capacity | mm | 50 | 50 | |||
Face milling | mm | 100 | 100 | |||
Vertical milling | mm | 25 | 25 | |||
Boring dia. | mm | Φ120 | Φ120 | |||
Spindle taper | ISO40 | ISO30/ISO40/R8 | ||||
Spindle speeds (8 steps) | Vertical | rpm | 60～1500 | 60～1500 | 66~4540 | |
Horizontal | rpm | -- | 60～1350 | 60～1350 | ||
Spindle travel | mm | 120 | 127 | |||
Table size | mm | 800x240 | 800x240 | |||
Table travel | mm | 400x230 | 400x230 | |||
Motor power | Vertical | KW | 1.5 or 2.2 | 2.2 | ||
Horizontal | KW | -- | 1.5 | 1.5 | ||
N.W./G.W. | kg | 1000/1150 | 1000/1150 | |||
