1.The bed adopts plate welding structure, annealing treatment by heat treatment furnace, eliminating the internal stress, long-term use without deformation, no migration, to ensure high precision cutting.

2. Cutting area adopts partition dust removal design, equipped with large dust cleaning system, green environmental protection.

3. Aviation aluminum gantry, light weight, small inertia, speed and acceleration switch freely, fast response, accurate control.

4. Fully enclosed protection design, with OD5 laser radiation safety protection glass.

5. The cutting area bed is fully covered with 20mm thick graphite plate to effectively prevent the bed from burning.

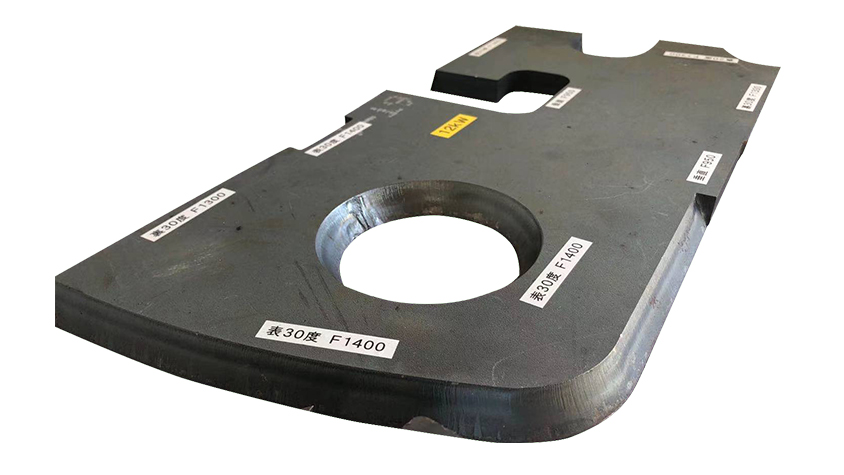

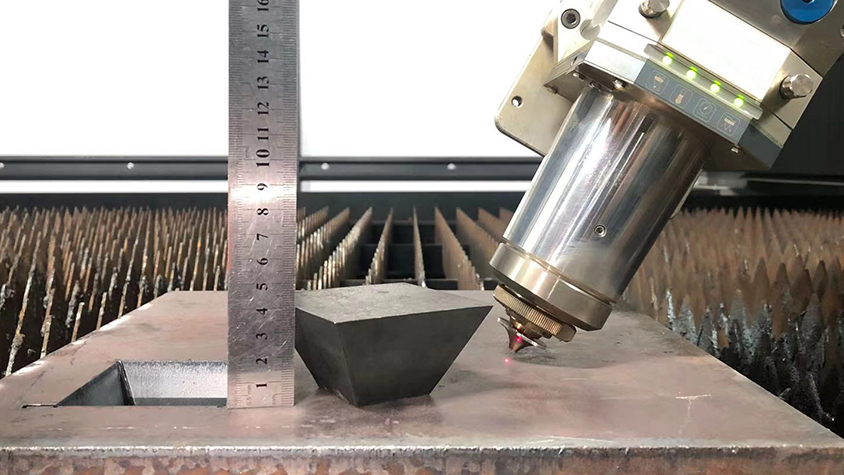

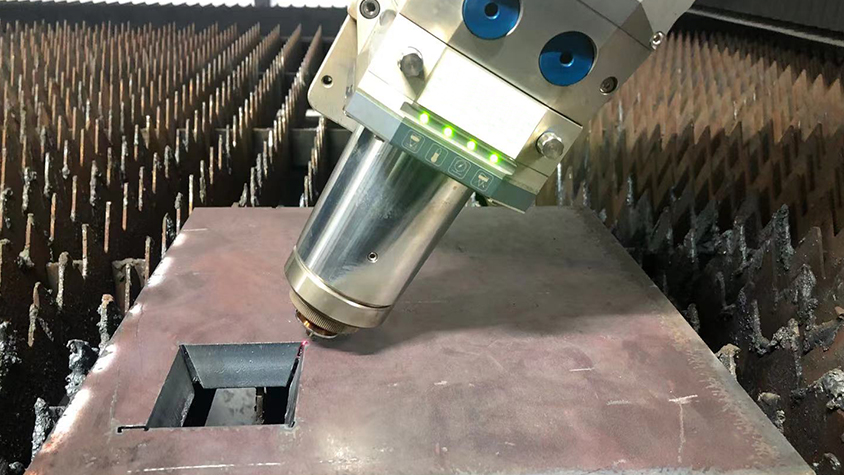

6. German BECKHOFF 5-axis CNC system, intelligent interface, no complicated editing, double-axis ≥45° angle swing, K, V, Y, U, X bevels, arbitrary cutting.

7. Applicable industries: metal processing, aerospace, ship and bridge, machinery and equipment, engineering machinery, agricultural machinery, mining machinery, steel structure, etc.
