DM-25V / DM-30V
Description

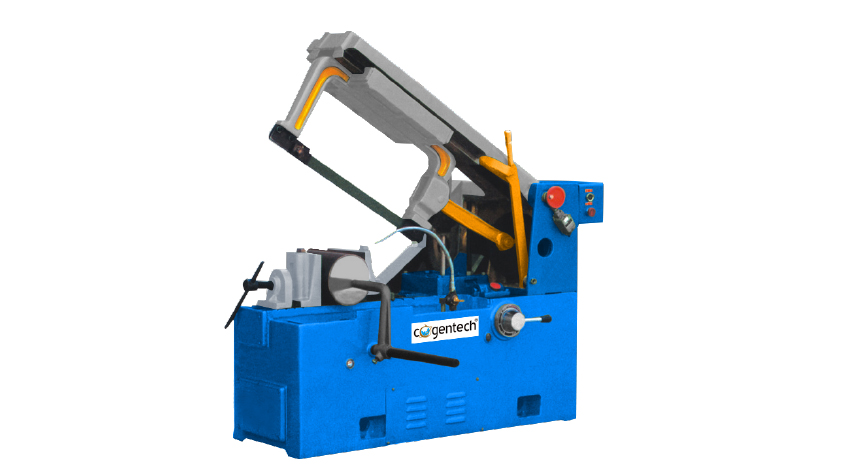

This is designed for cutting bars, tubes and profiles of many materials, its heavy construction is precision, durable and sturdy, which can clamping materials in faster, safer and quieter, it is suitable for pattern shops, machine shops, training school and factories.
MODEL | UNIT | HS-160A | HS-250A | |
Cutting capacity | Round. bar | mm | 160 | 250 |
Square bar | mm | 160x160 | 250x250 | |
Oblique saw | degree | 45° | 45° | |
Sawing speeds | time/min | 85 | 91 | |
Blade size | mm | 350x25x1.25 | 450x35x2; 500x40x2 | |
Motor power | kW | 0.37 | 1.5 | |
Overall dimensions | mm | 910x330x640 | 1150x570x820 | |
Packing size | mm | 1000x430x765 | 155x700x1000 | |
N.W./G.W. | kg | 160/190 | 600/680 | |
