1.Base is box welded structure with strong rigidity and good stability.

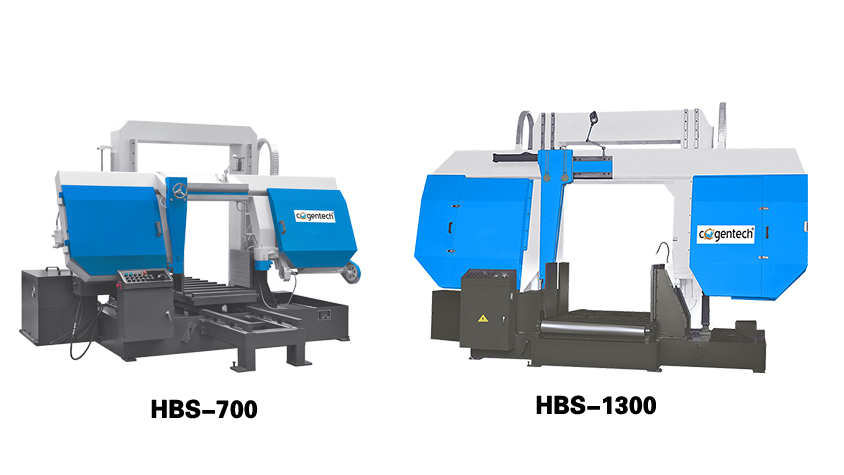

2. Main drive part:

HBS-700/800: the worm gear is made of tin bronze material, the worm is hardened and ground, and the worm gear box is processed by CNC machining center with Meehanite cast iron.

HBS-1000/1300: frequency conversion stepless speed, high performance reducer drive.

3. The column is guided by linear guideway to ensure the stability and accuracy of sawing frame.

4. Hydraulic feeding worktable.

5. Mainly used for sawing all kinds of large diameter, large cross section of the cast steel ingot or pipeline, forged steel parts and a variety of shaft parts.
