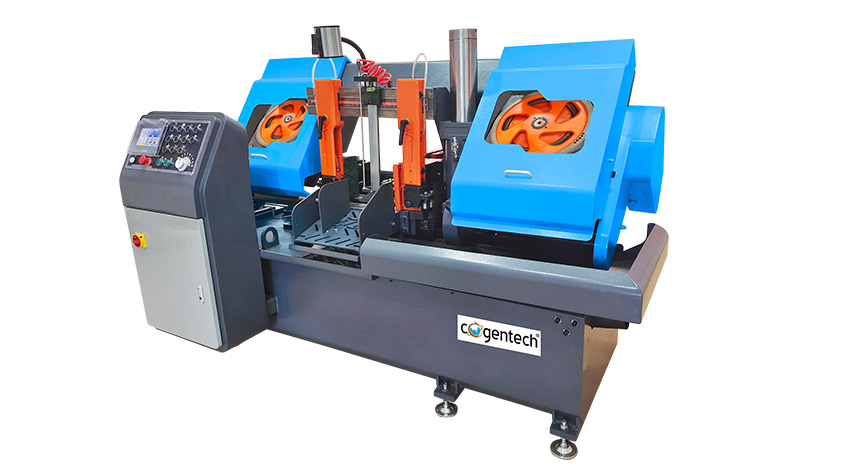

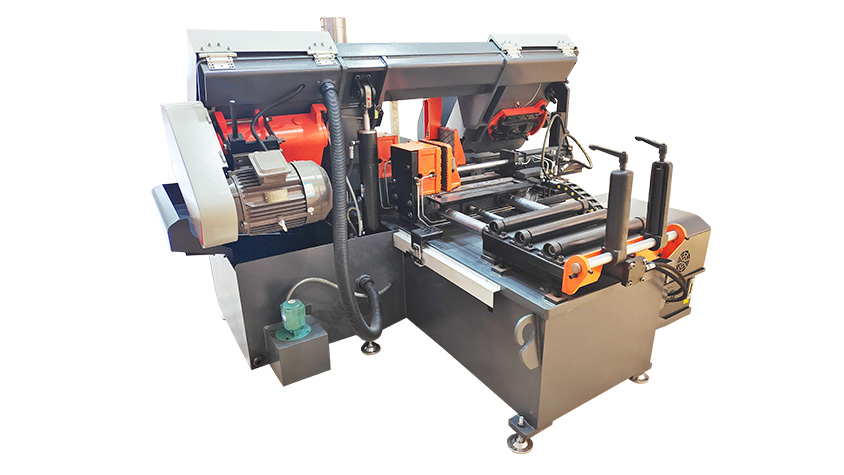

1. PLC+HMI.

2. European design, compact structure, nice appearance.

3.Base is box welded structure with strong rigidity and good stability.

4. Main transmission part: the worm gear is made of tin bronze material, the worm is hardened and ground, and the worm gear box is processed by CNC machining center with Meehanite cast iron.

5. The surface of the column is very wear-resistant, and the guide sleeve is made of self-lubricating wear-resistant material. The clearance between the two is very small, good verticality.

6. Feeding, discharging and workpiece support using the worktable, hydraulic drive, stable clamping.

7. Mainly used for sawing various small diameter steel pipes or profiles in large quantities.
