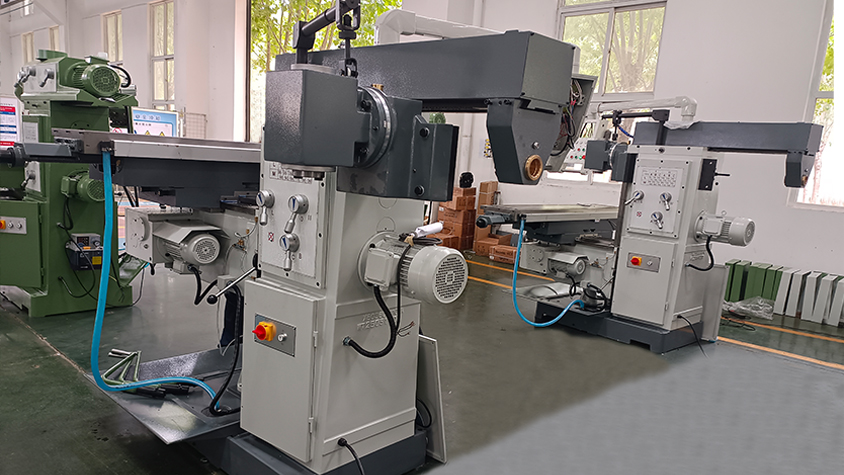

VBS-360A
Description
1.Rectangular guideways with high stability.
2. The main drive is geared and driven directly by the motor.

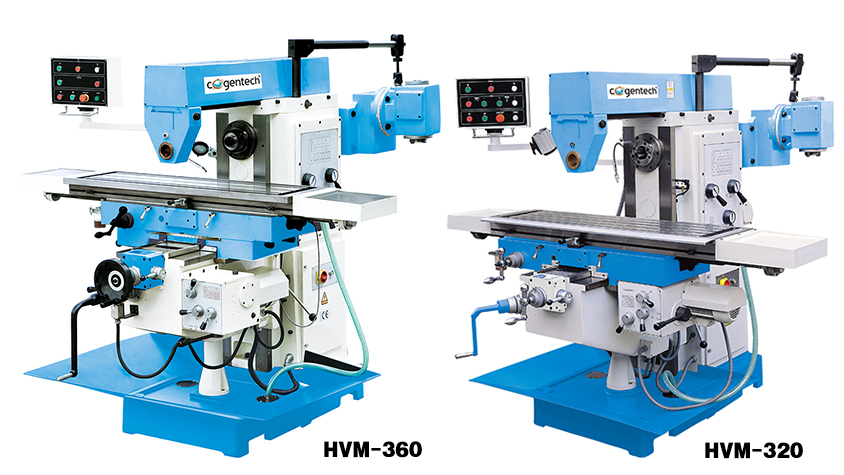

3. HVM-320:X,Y-axes feed gear box drive, Z axis motor lifting.

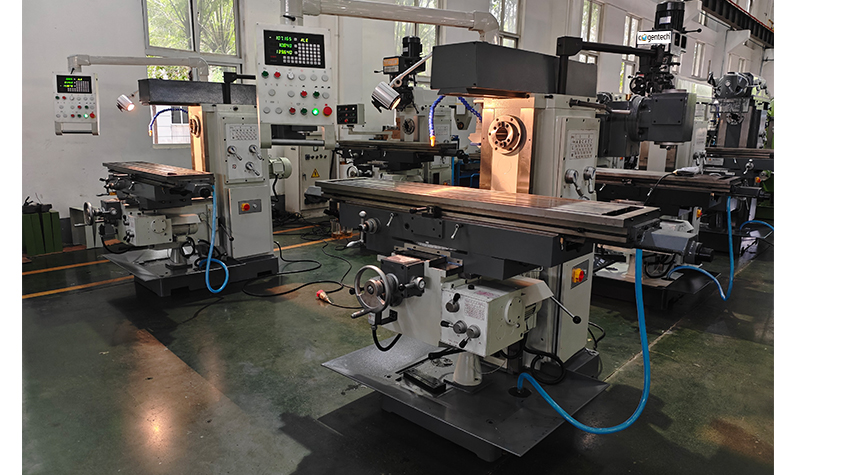

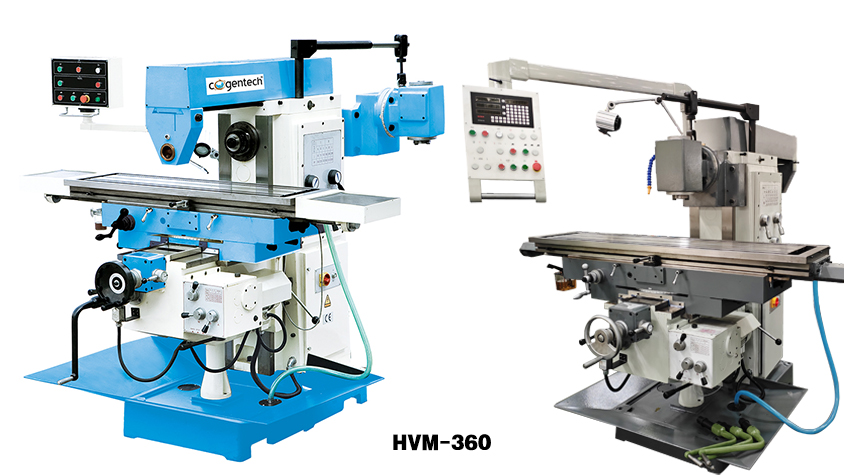

HVM-360: X,Y,Z-axes feed gear box drive. Swivel table ±35°
MODEL | UNIT | HVM-320 | HVM-360 |
Table size | mm | 1320x320 | 1650x360 |
Table travel (X,Y,Z) | mm | 1000x300x400 | 1300x300x400 |
T-slot (No./width/distance) | mm | 5-14-63 | 3-14-95 |
Table load | kg | 300 | 400 |
Table feed | mm/min | X/Y:20-360 (8 steps); Z: 400 | X: 22-420; Y: 22-393; Z: 10-168. (8 steps) |
Table rapid feed (X,Y,Z) | mm/min | 1200/1200/400 | 1290/1205/513 |
Table rotary degree | -- | ±35° | |
Ram stroke | mm | 500 | 500 |
Spindle taper | ISO50(H), ISO40(V) | ISO50(H), ISO40(V) | |
Spindle speeds (12 steps) | rpm | 58-1800 | |
Vertical spindle nose to table | mm | 0-341 | |
Horizontal spindle axis to table | mm | 0-400 | |
Main motor power | kW | 4 | |
Feed motor power | kW | X,Y: 0.55; Z:0.75 | X,Y: 1.1; Z: 1.1 |
Overall dimensions | mm | 2070x2020x1850 | 2070x2050x1950 |
Weight | kg | 2200 | 2300 |
