Description
1. Extremely rigid bed made of high-strength HT-250 cast-iron with heavy ribbing.
2. Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
3. Hardened and ground headstock gears
4. X,Y,Z-axes with a servo motor,large torque, energy efficiency,safe and reliable.
5. Standard coolant system and chip tray
6. Optional: vertical milling head.

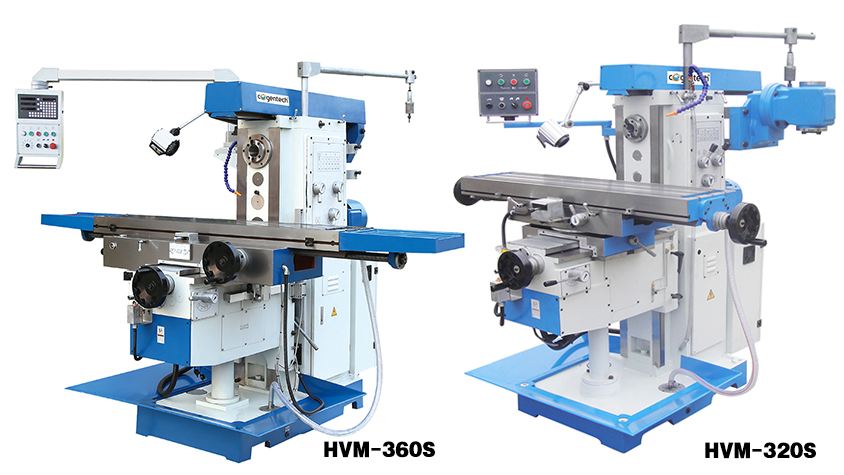

MODEL | UNIT | HVM-320S | HVM-360S | |||
Table size | mm | 1370x320 | 1370x320 | 1325x360 | 1600x360 | |
Table travel | X | mm | 820 | 1000 | 1100 | 1300 |
Y | mm | 300 (DRO:280) | 380 (DRO:360) | 320 (DRO:300) | 300 (DRO:280) | |
Z | mm | 400 | 400 | 450 (Swivel table:400) | 450 (Swivel table:400) | |
T-slot (No./width/distance) | mm | 3-14-80 | 3-18-80 | |||
Table load | kg | 300 | 400 | |||
Table feed (8 steps) | mm/min | X/Y:30-830; Z:23-625 | X: 30-750; Y: 20-500; Z: 15--375 | |||
Table rapid feed (X,Y,Z) | mm/min | 1335/1335/1000 | 1200/800/600 | |||
Table rotary degree | ±45°(Opt.) | ±45°(Opt.) | ||||
Ram stroke | mm | 500 | 500 | |||
Spindle taper | ISO40 | ISO50 | ||||
Spindle speeds (12 steps) | rpm | 35-1500 | 60-1800 | |||
Spindle axis to table surface | mm | 35-435 | 0-400 | |||
Main motor power | kW | 3 | 5.5 | |||
Feed motor power | Nm | 15 | 15 | |||
Overall dimensions | mm | 1820x1680x1730 | 1950x1680x1730 | 2520x2100x1870 | 2520x2100x1870 | |
Weight | kg | 1650 | 1750 | 2500 | 2600 | |
