Features:

 1. Table and die holder can be departed, beneficial to punch various kinds of shapes.

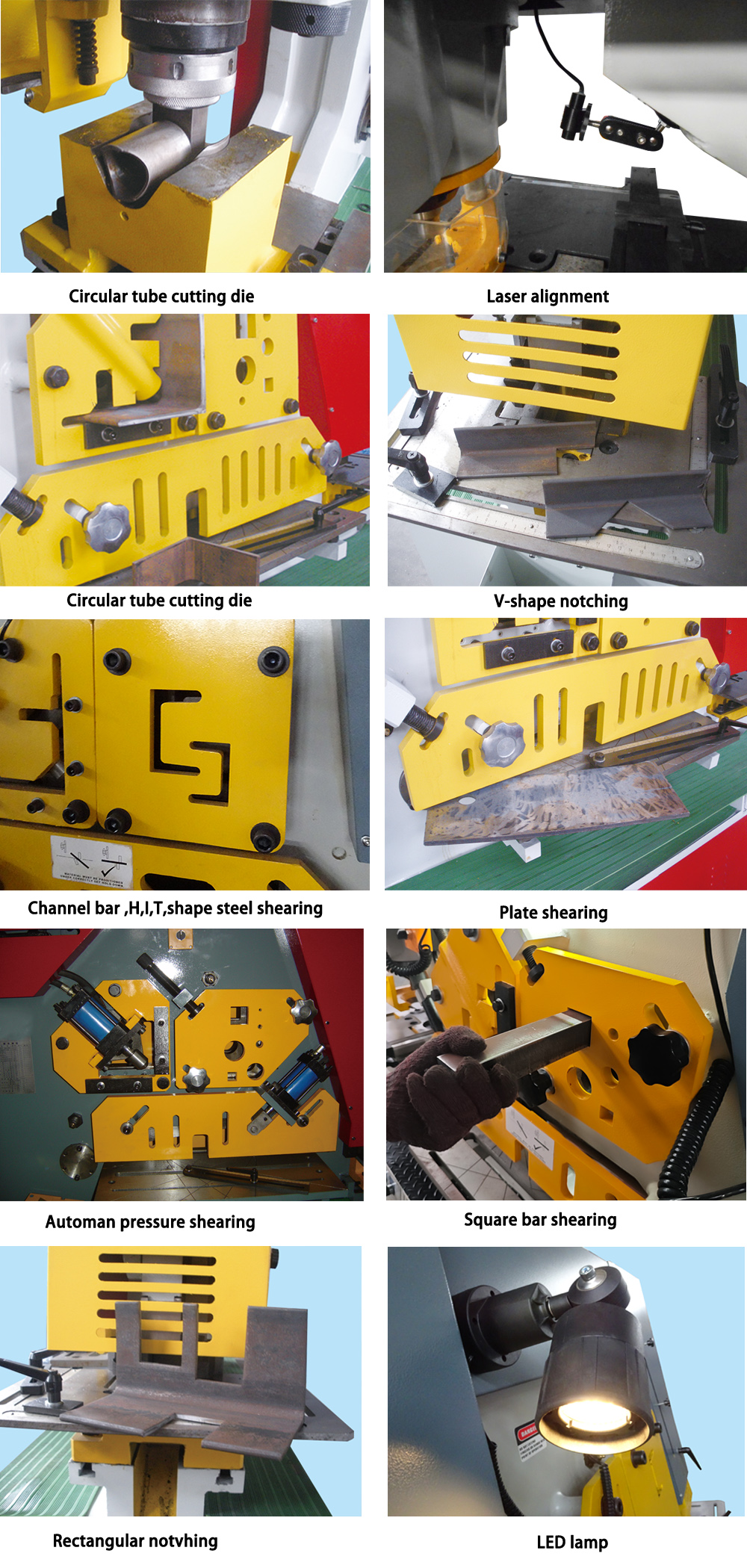

 2. Shearing station with automatic suppression device, rapidly and conveniently.

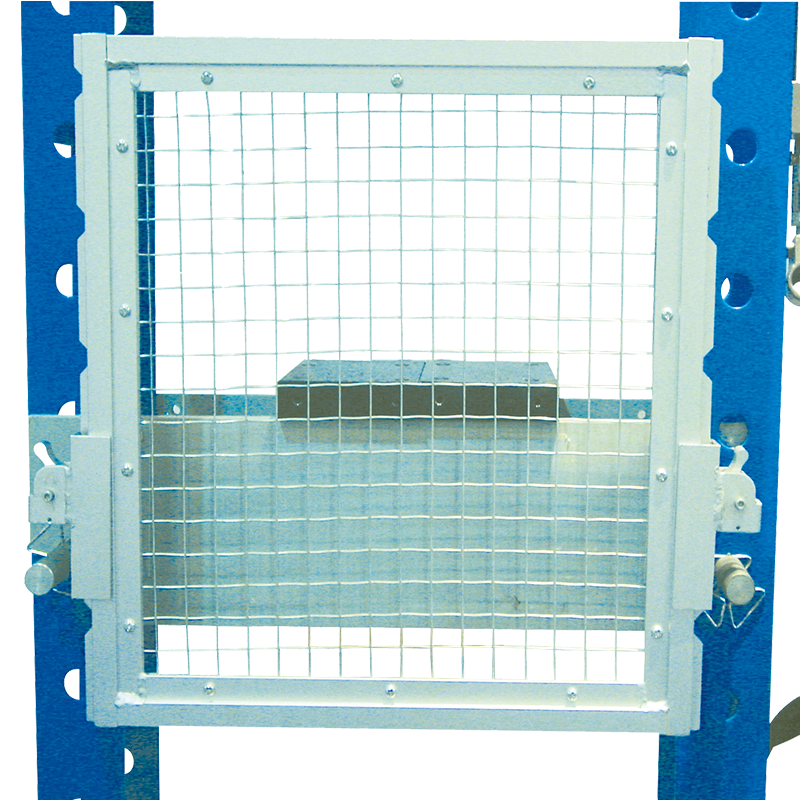

 3. The design of punching and shearing station safeguard is reasonable and reliable.

 4. Toolpost generally fits flush against wall when shearing. The area of thrust surface is large and power of cutting resistance is strong.

 5. With centralization lubrication device. It is convenient to add oil into lubrication points. It is not easy to wear.

 6. Standard and universal oil cylinder. And it is easy to dismantle and change.

 7. All inch cutting sleeve joints. International universal hydraulic parts and oil tube with good quality.

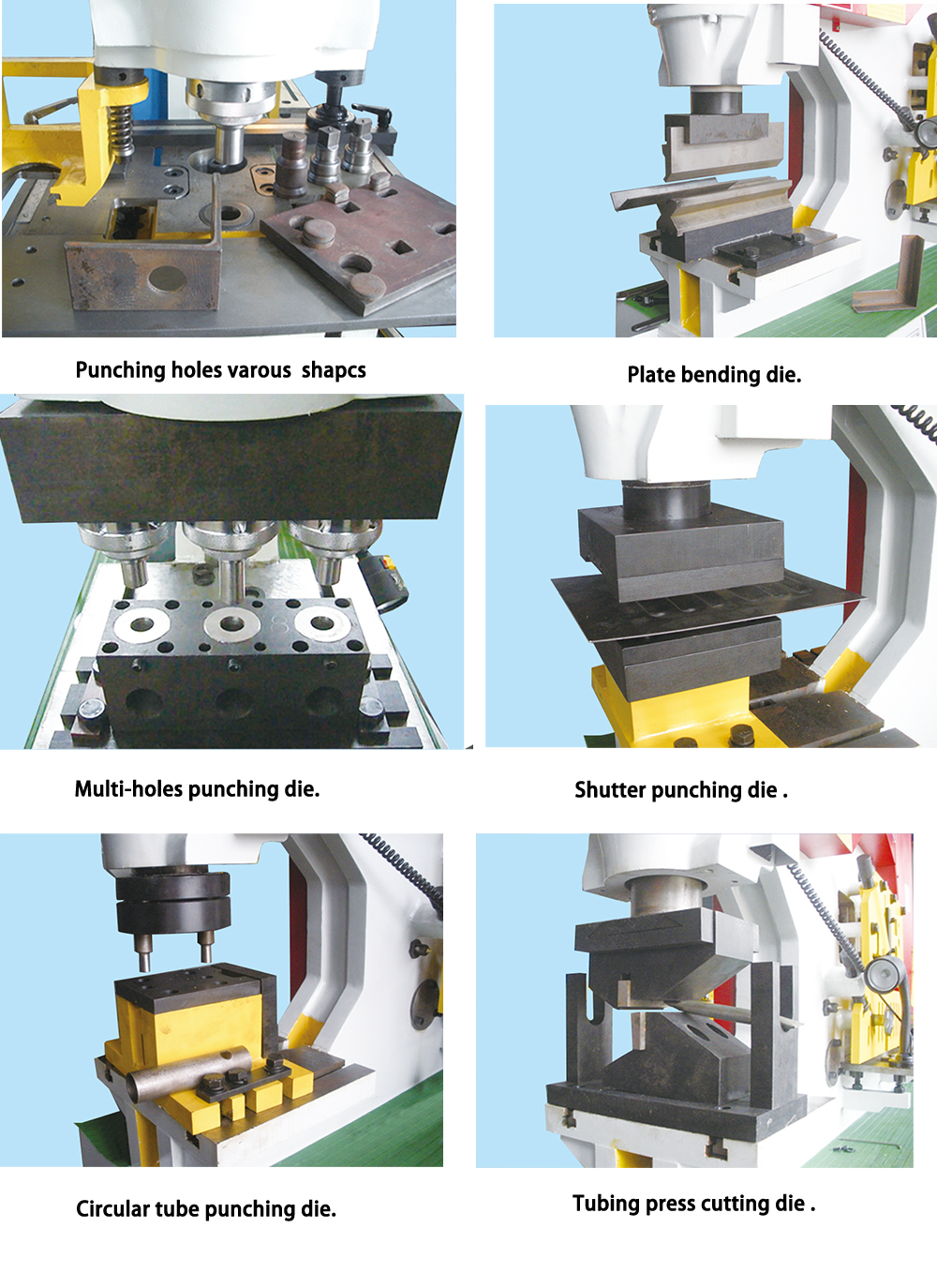

 8. Corner notching, tube notching, bending and punching at notch station dies on request.

Illustrations, dimensions, weights…are not binding as designs are constantly being reviewed.

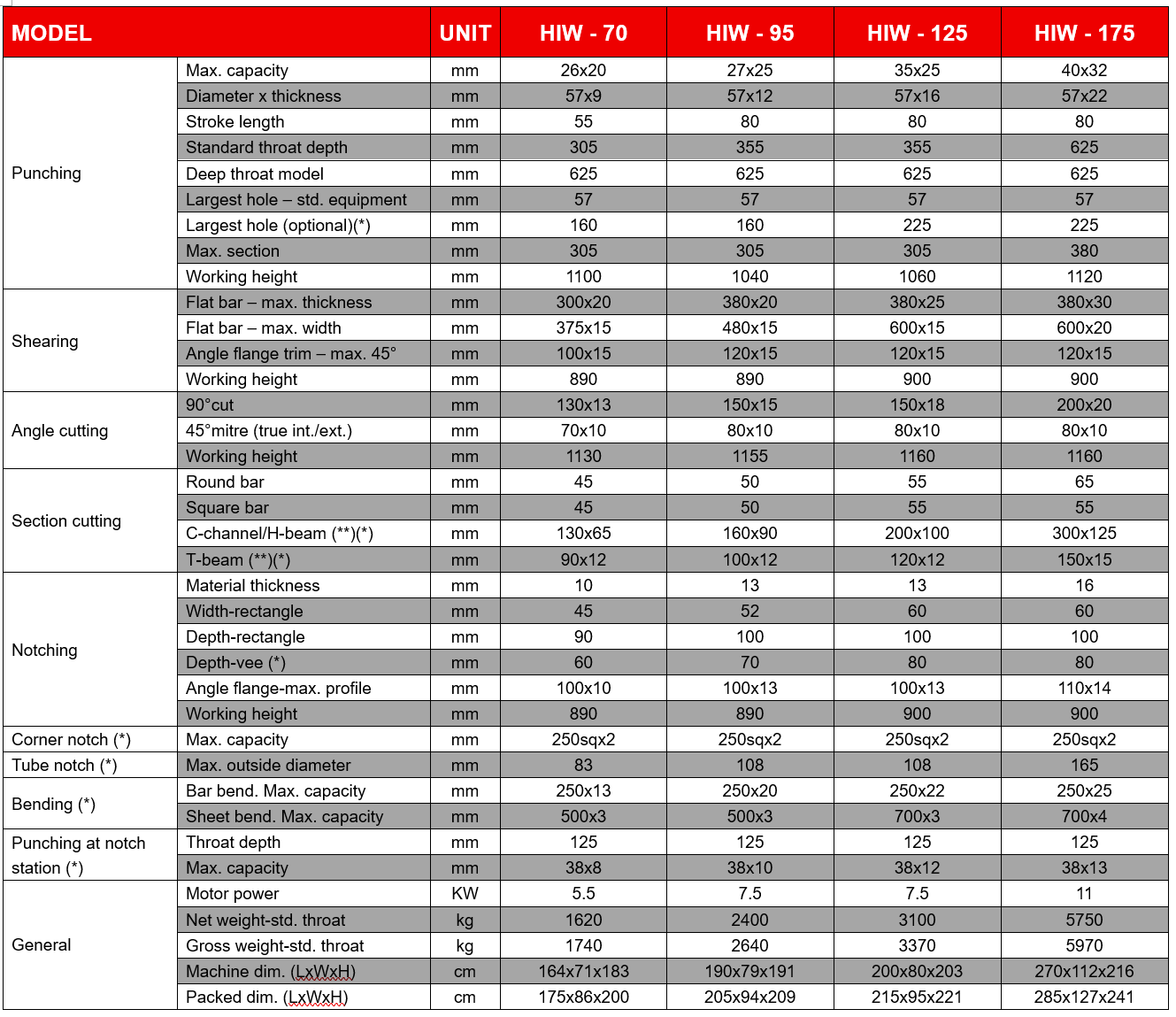

(*) optional equipment

(**) other profiles are also possible
