DC-3 Features:

1. Siemens motor, Ultra-high negative pressure fan.

2. Visual human-machine interface (HMI).

4. Industrial appearance design.

5. Self-developed control system: Supporting EtherCAT bus protocol, frequency energy-saving control.

6. Small area cover, easy to move;

7. Filter cartridge material: American HV/Finland AHLSTROM/Japan TORAY, F9.

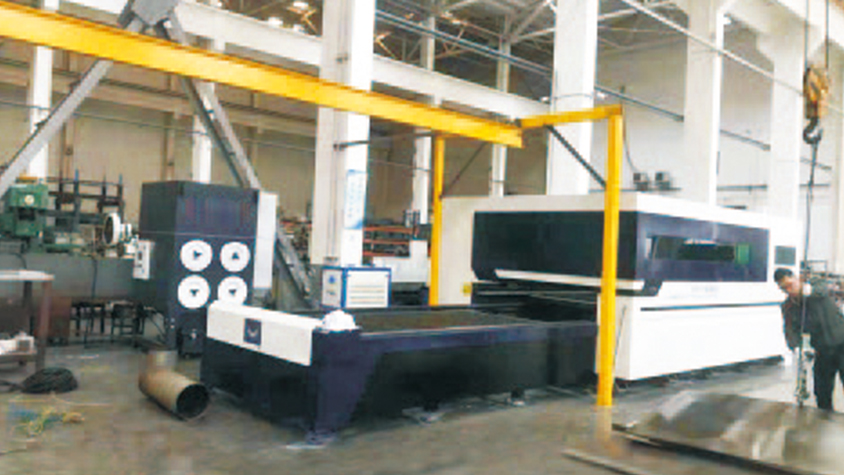

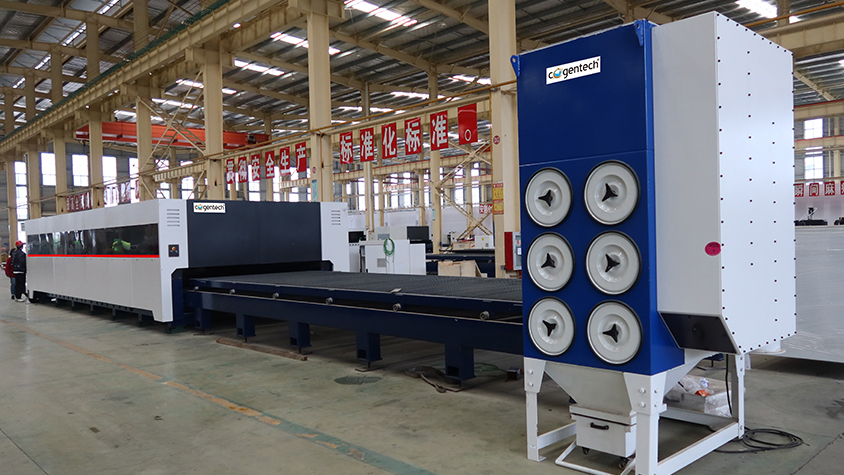

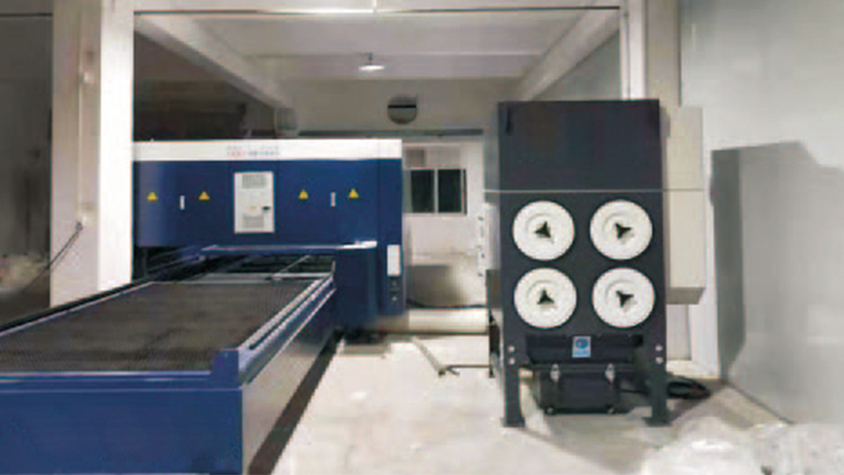

8. Applications: plasma/laser cutting machine, welding table, grinding table, wood processing, graphite processing, etc.

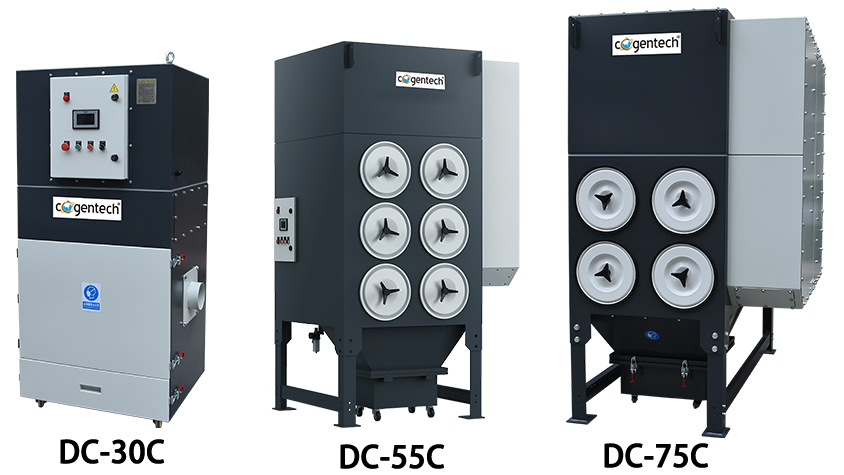

DC-55C/75C/110C Features:

1. Integrated industrial design, metal frame structure, high quality cold rolled steel electrostatic spraying process, durable.

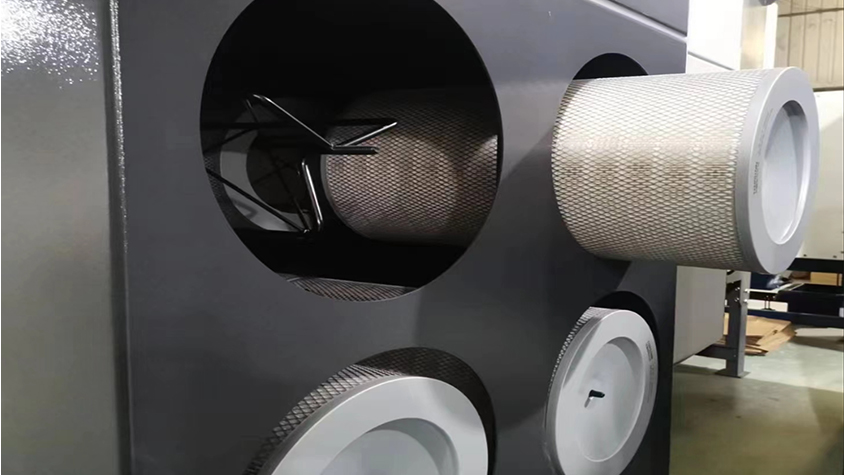

2. American HV/Finland AHLSTROM/Japan TORAY, F9 filter, quick disassembly design, efficient and convenient to install.

3. Siemens high efficiency high speed motor, stable operation, low noise, low energy consumption, long working time.

4. Fan adopts eddy current backward design, special alloy material, effectively prevent corrosion of fan.

5. High negative pressure, large suction, higher filtration rate.

6. Adopt multiple filter design. filtering layer by layer to ensure that harmful dust is filtered more thoroughly. The highest purification rate can reach 99.9%.

7. Self-developed control system: Supporting EtherCAT bus protocol, frequency energy-saving control.

8. Visual human-machine interface (HMI) with touch screen.
