Functions

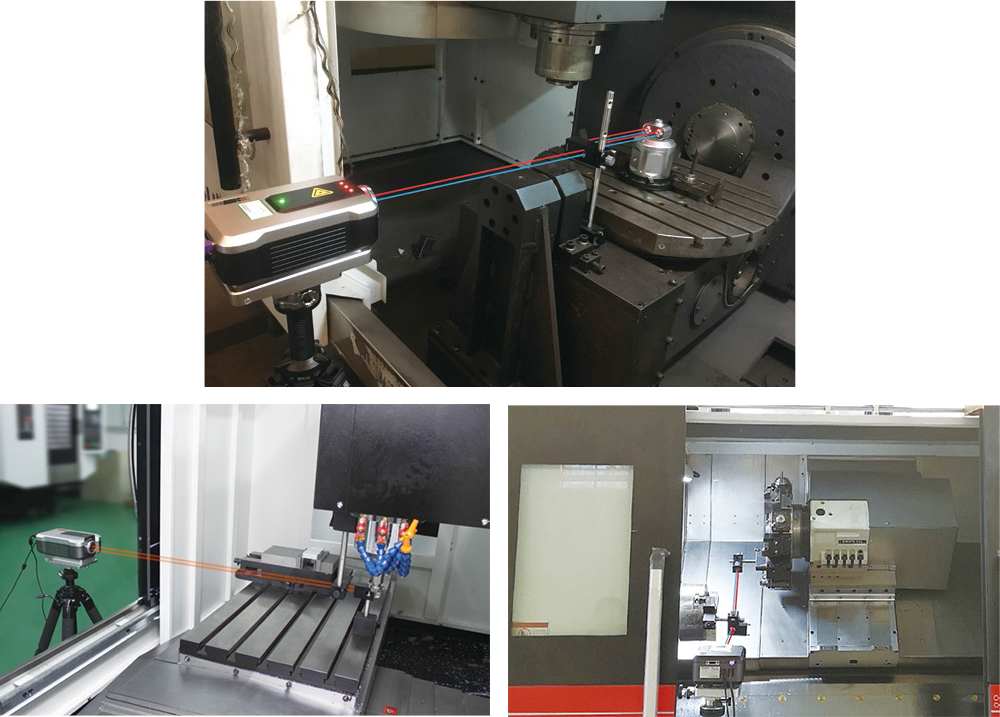

1. Calibrate motion accuracy of guide rail quickly and accurately.

2. Measure and analyze many kinds of dynamic parameters, such as displacement, velocity, acceleration and amplitude frequency.

3. Built-in variety of general standards of machine tools.

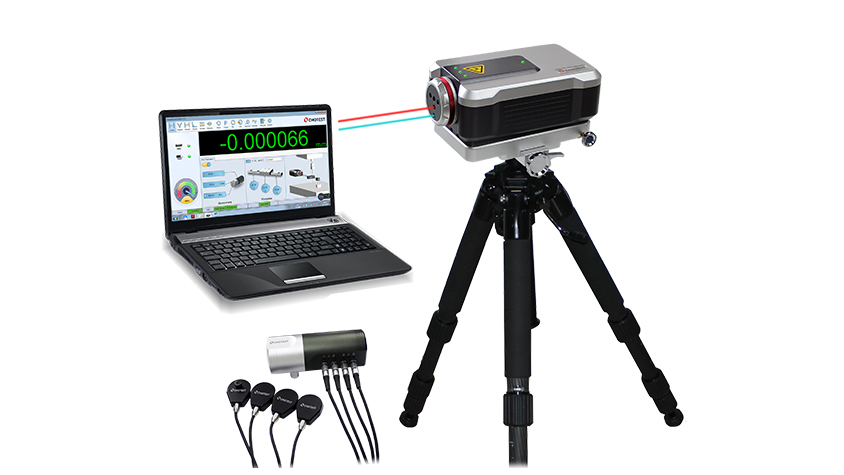

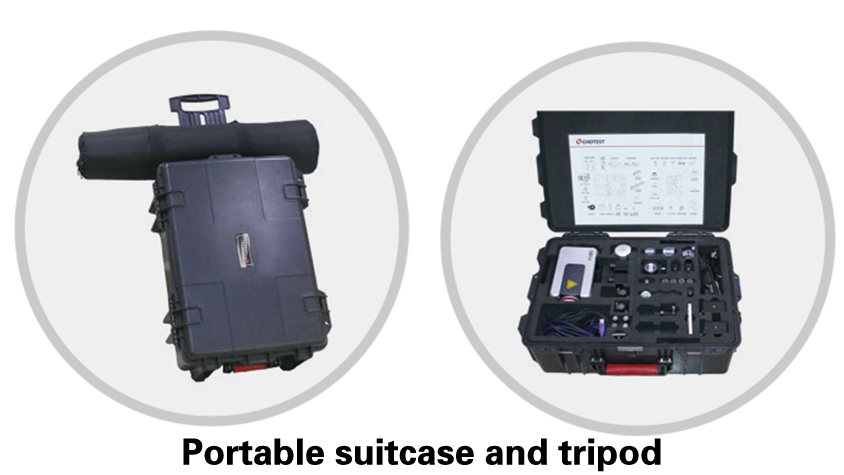

4. Standard: Environmental compensation device; Linear prism (0-80m); Software.

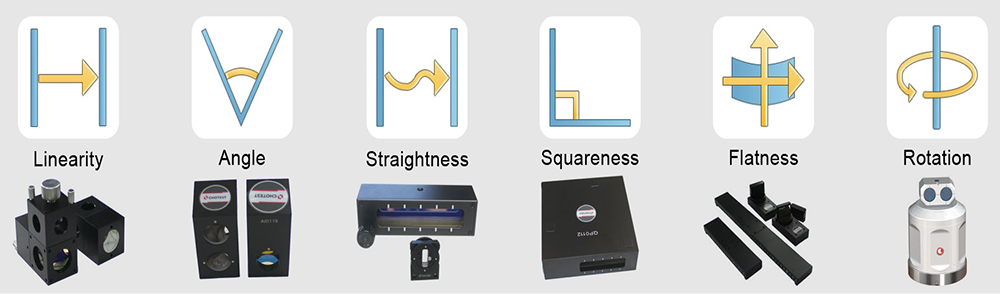

  Optional: Angle/Flatness/Straightness/Squareness prisms; Precision turntable and Ballbar.

System parameters:

1. Measuring method: single frequency

2. Laser frequency accuracy: 0.05ppm

3. Dynamic capture rate: 50kHz

4. Warm-up time: about 6 min

5. Operating temperature: (0~40)℃

6. Environment temperature: (0~40)℃, humidity: 0~95%

7. Storage temperature: -20℃~70℃

Environmental sensors:

1. Atmospheric temperature sensor : ±0.1℃(0~40)℃, resolution: 0.01℃

2. Material temperature sensor: ±0.1℃(0~40)℃, resolution: 0.01℃

3. Atmospheric humidity sensor: ±5% (0~95%)

4. Atmospheric pressure sensor: ±0.1kPa (65~115)kPa

Linearity measurement:

1. Measuring range: (0~80)m

2. Measuring accuracy: 0.5ppm (0~40)℃

3. Measuring resolution: 1nm

4. Maximum measuring speed: 4m/s
