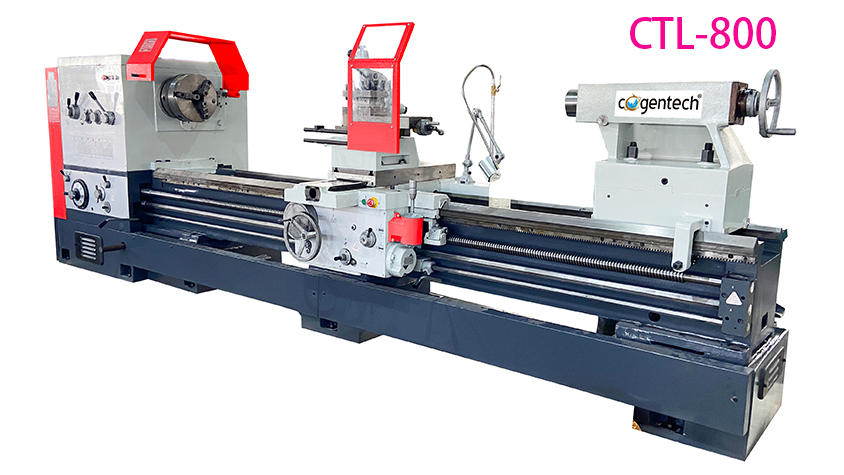

Capacity

Swing over bed

mm

630

800

1000

1200

Swing over cross   slide

mm

350

480

680

800

Swing over gap

mm

830

1000

1200

1400

Center distance

mm

2000 - 12000

Bed width

mm

550

Spindle

Taper; Bore

mm

D1-11; Φ105

D1-11;  Φ105 (Opt. Φ130)

Speed

rpm

14-750 (18 steps)

Travel

Cross slide   /Compound slide

mm

350/200

420/200

520/200

620/200

Feeds

Longitudinal/Cross

mm

0.048-24.3 (72kinds);    0.024-12.15 (72kinds)

Rapid feed

mm/min

Longitudinal:   4000;  Cross:2000

Threads

Metric；Inch

mm

Metric:1-240mm (54kinds); Inch: 28-1TPI (36kinds)

Module; Diametral   pitch

mm

Module:0.5-60mm   (27kinds);  Diametral pitch:30-1DP   (27kinds)

Toolpost

Tool shank size

mm

32x32

Tailstock

Taper/Dia./Travel

mm

MT.6; Ф100; 240

MT.6; Ф120; 240

Motor

Main moto power

kW

11

Rapid feed motor

kW

1.1

Others

(DBC=8m)

Overall dimensions

mm

9952x1326x1790

Weight

kg

8800

9300

9800

10300
