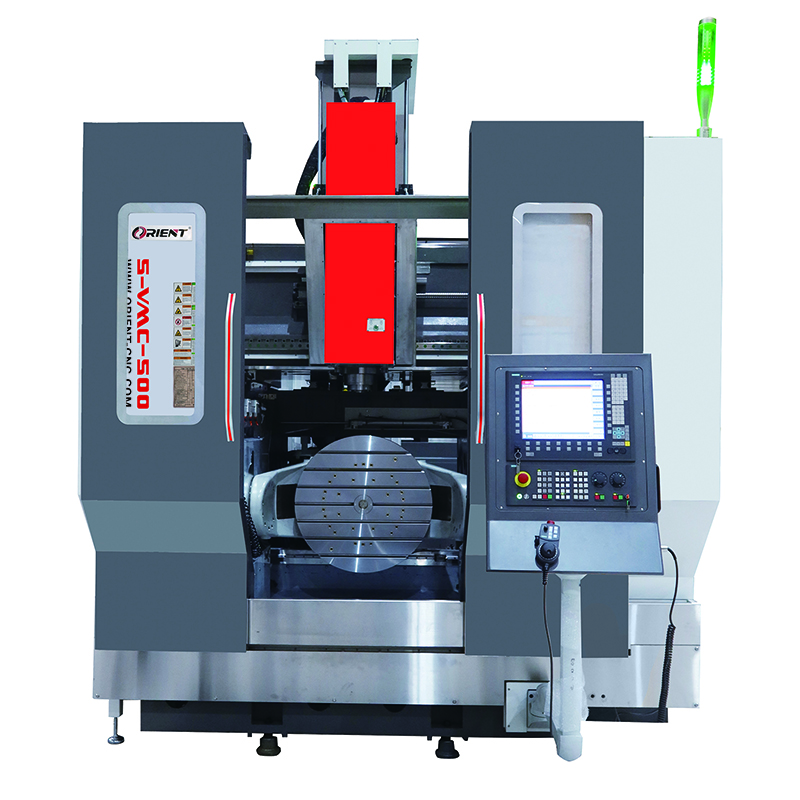

5-VMC-650
Description
1. High torsion resistance horizontal bed, high quality cast iron carefully made, and the guide surface is medium frequency induction hardened and precision treated.
2. The guideway is made up of soft Teflon guide strip, which is wear-resistant, vibration- absorbing and has good accuracy
3. Spindle adopts three support structure, with good rigidity and high precision, can realize heavy cutting.
4. Suitable for turning inside and outside cylindrical surface, conical surface, rotation surface, end face and various threads.

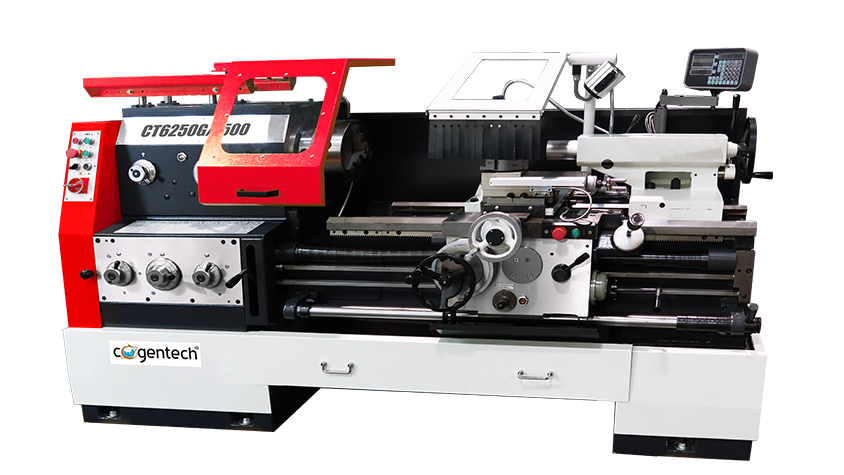

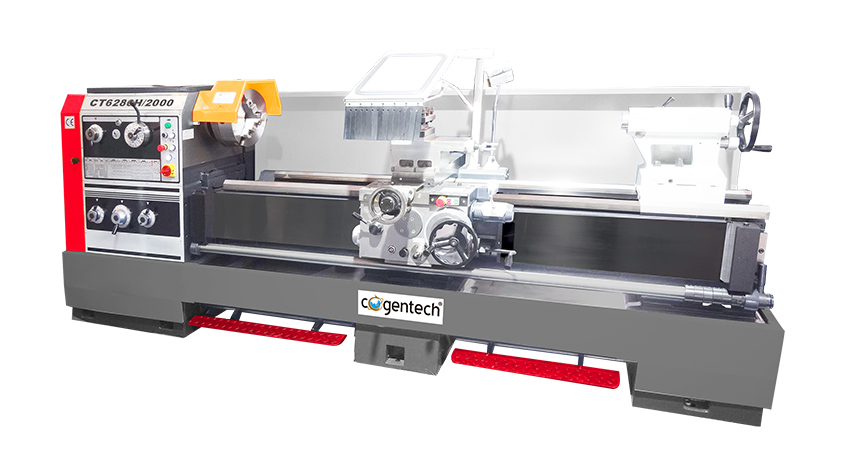

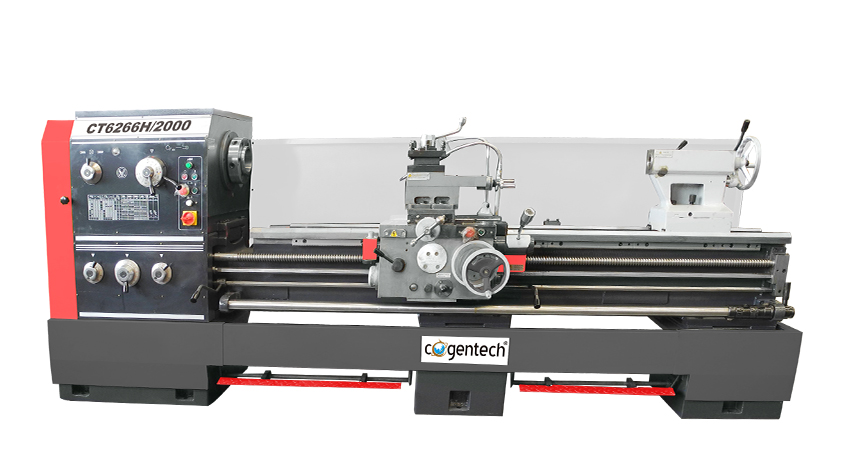

MODEL | UNIT | CT6266G | CT6266H | |
Capacity | Swing over bed | mm | 660 | |
Swing over cross slide | mm | 420 | ||
Swing over gap | mm | 870 | ||
Center distance | mm | 1000, 1500, 2000, 3000 | ||
Bed width | mm | 390 | ||
Spindle | Taper | D1-8 | ||
Bore | mm | Ф82 | Ф105 | |
Speed(G/H:24/12 steps) | rpm | 9-1600 | 36-1600 | |
Motor power | kW | 7.5 | ||
Travel | Cross slide / Compound slide | mm | 310/145 | |
Feeds | Longitudinal | mm | 0.028-6.43 (93 kinds) | 0.063-2.52 (65 kinds) |
Cross | mm | 0.012-2.73 (93 kinds) | 0.027-1.07 (65 kinds) | |
Threads | Metric | mm | 0.5-224 (48 kinds); | 1-14 (22 kinds) |
Inch | T.P.I. | 72-1/8 (46 kinds); | 28-2 (25 kinds) | |
Module | mm | 0.5-112 (42 kinds); | 0.5-7 (18 kinds) | |
Diametral pitch | D.P. | 56-1/4 (45 kinds); | 56-4 (24 kinds) | |
Toolpost | Tool shank size | mm | 25x25 | |
Tailstock | Taper/Dia./Travel | mm | MT.5; Ф75; 150 | |
Others | 3-jaw chuck | mm | 315 | |
4-jaw chuck | mm | 500 | ||
Face plate | mm | 630 | ||
Steady rest | mm | 20-120;120-260;320-420 | ||
Overall dimensions | mm | 2632/3132/3632/4632x1000x1450 | ||
Weight | kg | 2800,3000,3200,3500 | ||
