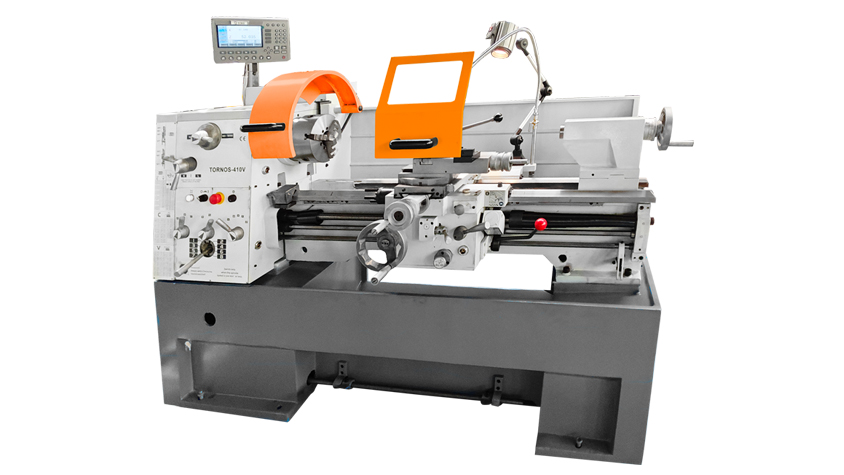

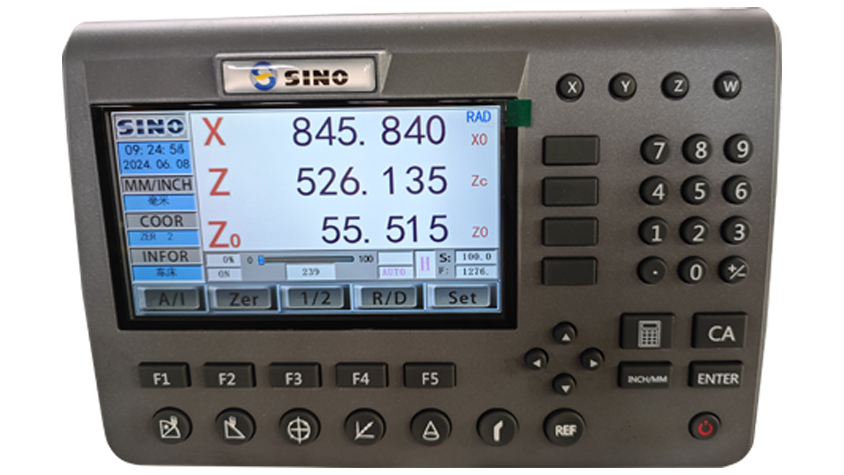

Swing over bed

mm

410 (16")

Swing over cross slide

mm

255 (10")

Swing over gap

mm

580 (23")

Distance between centers

mm

1000 (40");    1500 (60")

Width of bed

mm

250 (10")

Spindle bore

mm

Φ52 (2")

Spindle nose and taper

D1-6;  MT.6

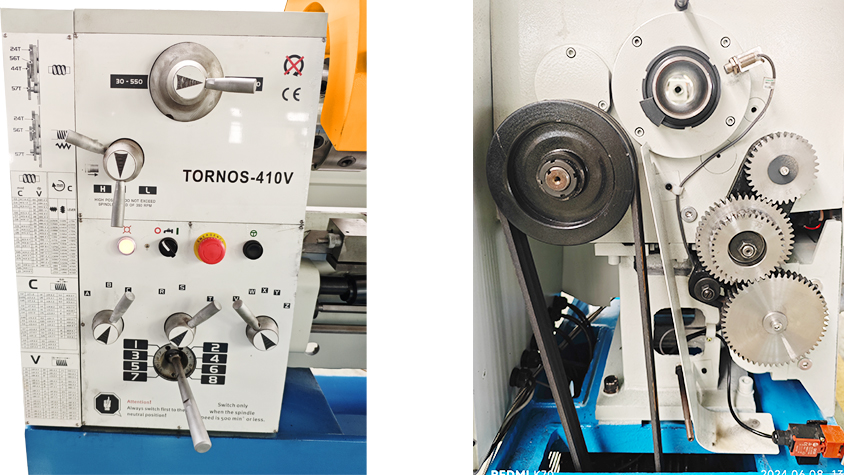

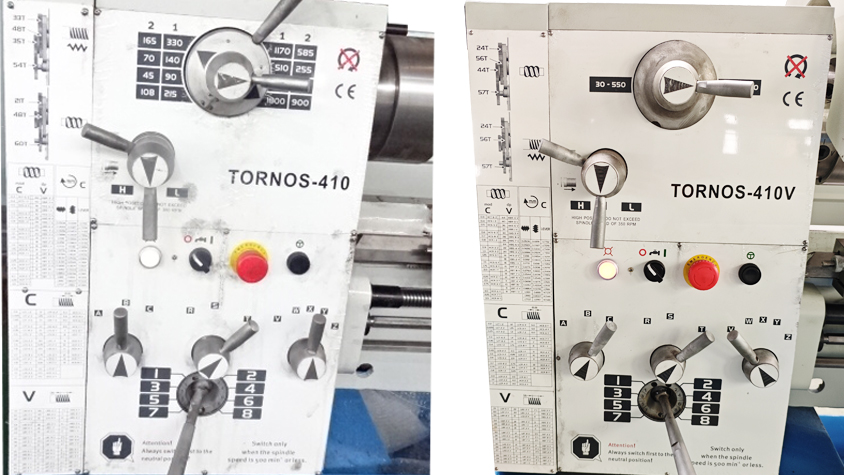

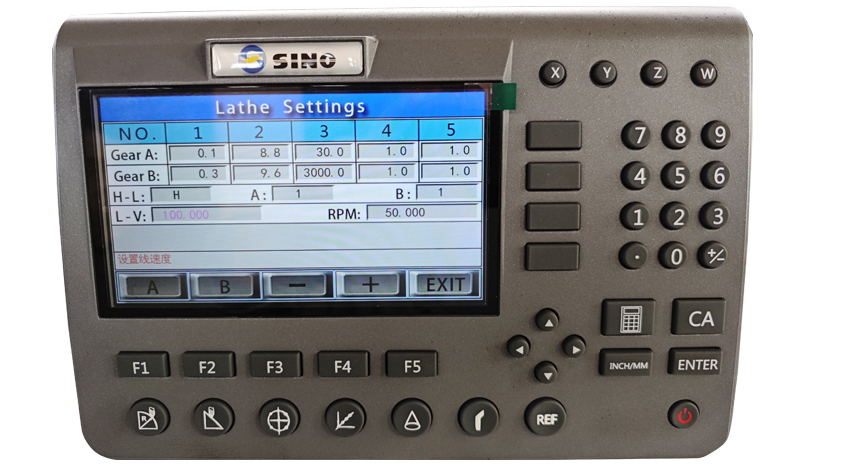

Spindle speeds

rpm

45～1800 (16 steps)

30～550,550～3000 (Variable)

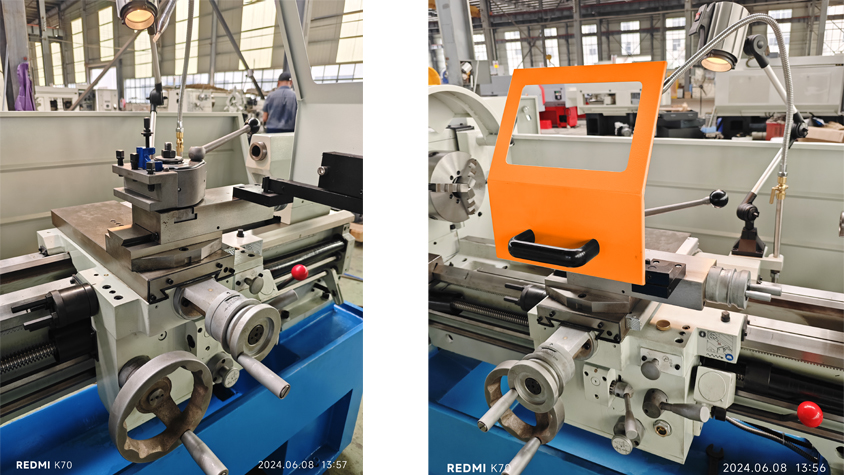

Cross slide travel

mm

210 (8～1/2")

Compound slide travel

mm

140 (5～1/2")

Longitudinal feeds range

mm/r

0.05～1.7   (17 kinds)

Cross feeds range

mm/r

0.025～0.85 (17 kinds)

Metric threads

mm

0.2～14   (39 kinds)

Inch threads

T.P.I.

2-～72 (45 kinds)

Module threads

mm

0.3～3.5   (18 kinds)

Diametral pitch threads

D.P.

8～44 (21 kinds)

Tool shank size

mm

20x20 (3/4”x3/4")

Tailstock quill Dia.

mm

Φ120(4- 3/4")

Tailstock Taper

MT.4

ailstock travel

mm

50(2")

Main motor power

KW

2.2/3.3 (3/4.5HP)

Overall dimensions

mm

1940x850x1320;    2440x850x1320

N.W./G.W.

kg

1550/1760; 1950/2210

1550/1760; 1950/2210
