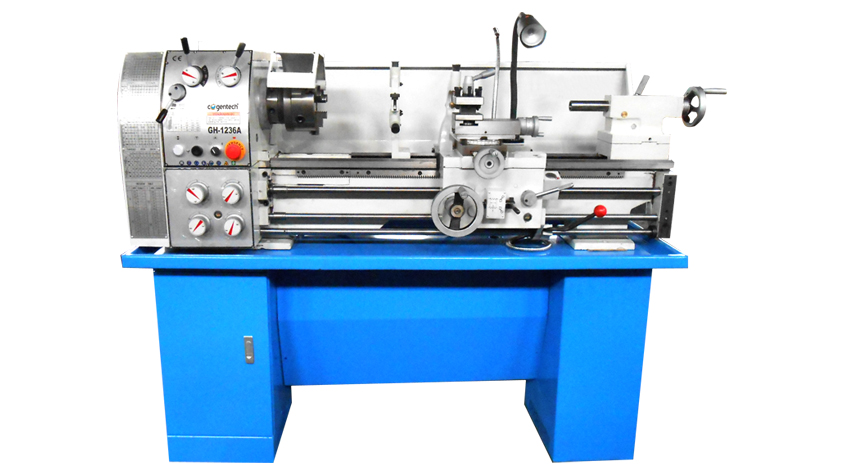

Max. swing over bed

mm

310 (12")

356 (14")

Max. swing over cross slide

mm

180 (7")

220 (8-5/8")

Max. swing over gap

mm

450 (17")

506 (20")

Distance between centers

mm

910 (36")

1000 (40")

Bed width

mm

180 (7")

206 (8")

Spindle bore

mm

Φ38 (1-1/2")

Φ38 (1-1/2");

Spindle taper

D1-4

D1-4

Spindle speeds

rpm

65～1810 (18 steps)

45～1800 (16 steps)

Metric threads

mm

0.4～7

0.45～7.5

Inch threads

T.P.I.

4～60

4～112

Longitudinal feed range

mm/r

0.0527～1.2912

0.043～0.653

Cross feed range

mm/r

0.011～0.276

0.015～0.22

Tailstock quill travel; Taper

mm

100 (4");  MT.3

115 (4-1/2");  MT.3

Main motor power

KW

1.5

1.5/2.4 (2-speed motor)

Overall dimensions

mm

1600x730x1270

1820x740x1300

N.W./G.W.

kg

520/620

800/900
