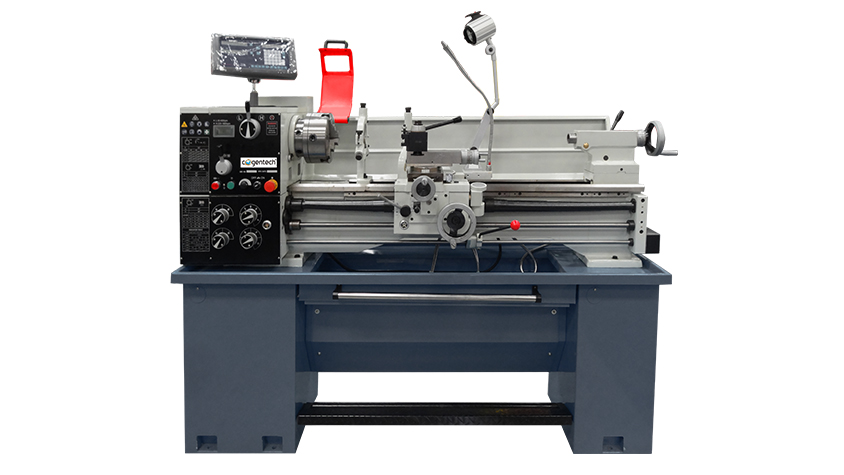

PBM-130C
Description
1. With 2-gearshift variable speed and spindle speed digital display.
2. Spindle gears are hardened and ground, high speed low noise, low speed big torque, suitable for turning steel, cast iron and other parts.
3. Quickly open door of pulley cover, convenient to change gear wheels.
4. Drawer oil tray, convenient for chip collection and cleaning.
5. 3-drawer design in foot stand, equipped with industrial bearing rail, convenient to put measuring tools.

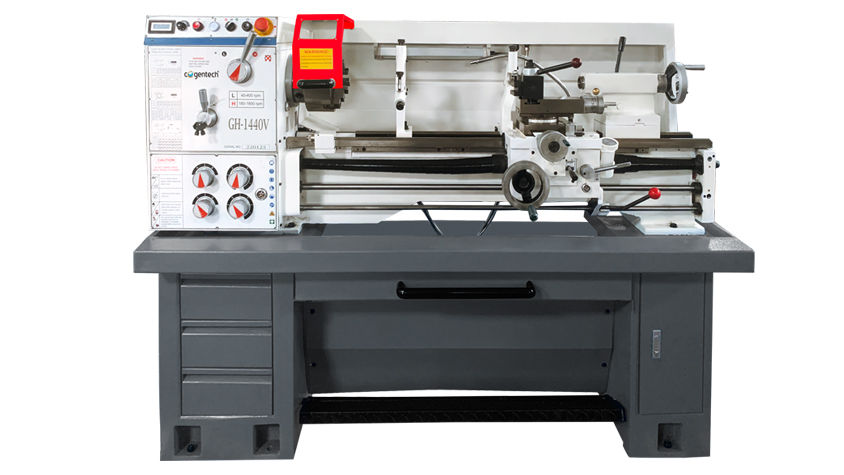

MODEL | UNIT | GH-1440V | |
Capacity | Swing over bed | mm | 360 |
Swing over cross slide | mm | 224 | |
Swing over gap | mm | 502 | |
Center distance | mm | 1000 | |
Bed width | mm | 187 | |
Spindle | Taper；Bore | mm | D1-5； φ51 |
Speed (variable) | rpm | 70-440; 350-2000 | |
Motor power | kW | 1.5 | |
Travel | Cross slide / Compound slide | mm | 170/95 |
Feeds | Longitudinal | mm | 0.052-0.392 (32 kinds) |
Cross | mm | 0.014-0.380 (32 kinds) | |
Threads | Metric | M.P | 0.4-7 (26 kinds) |
Inch | T.P.I. | 4-56 (34 kinds) | |
Tailstock | Quill taper/Dia./Travel | mm | MT.4/φ42/100 |
Others | Overall dimensions | mm | 1930x760x1580 |
Weight | kg | 600 | |
