TRM-50 / TRM-90
Description

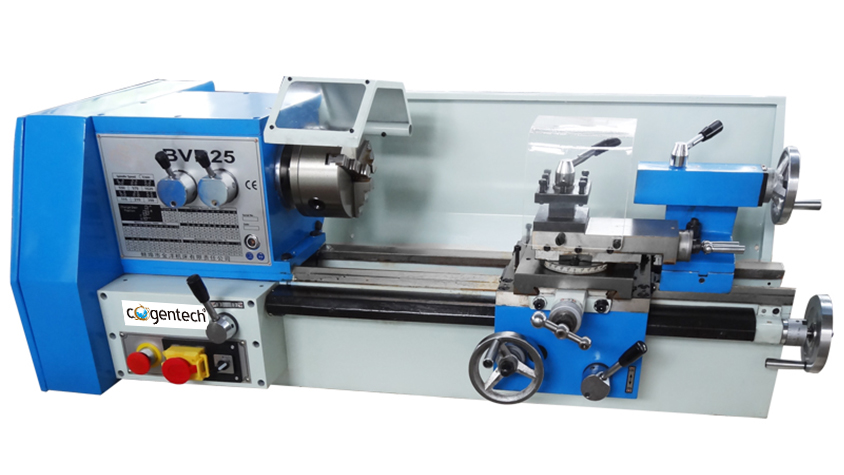

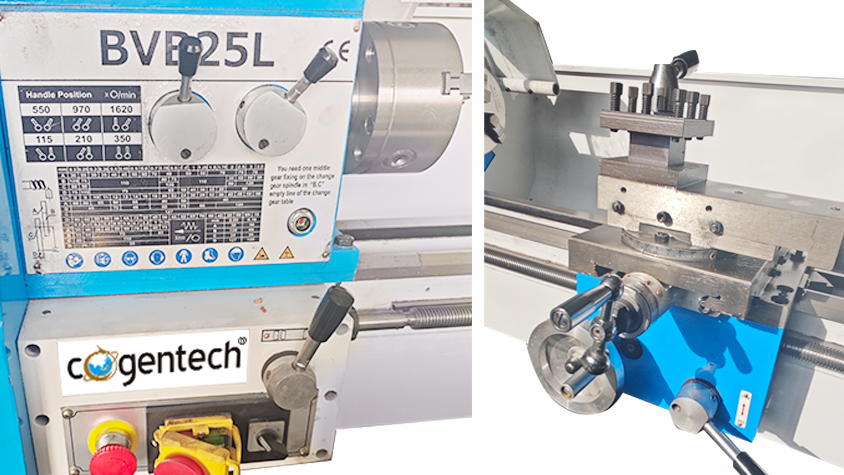

MODEL | Unit | BVB25 | BVB25L |
Swing over bed | mm | 250 | |
Swing over carriage | mm | 115 | |
Distance between centers | mm | 450 | 700 |
Spindle taper | MT.4 | ||
Spindle bore | mm | Φ27 | |
Spindle speeds | rpm | 115～1620 (6 steps) | |
Metric threads | mm | 0.2～3.5 | |
Inch threads | T.P.I. | 8～56 | |
Tailstock quill taper and travel | mm | MT.2; 50 | |
Motor power | W | 750 | |
Packing size | mm | 1200/1500x570x570 | |
Weight | kg | 151 | 171 |
