Description

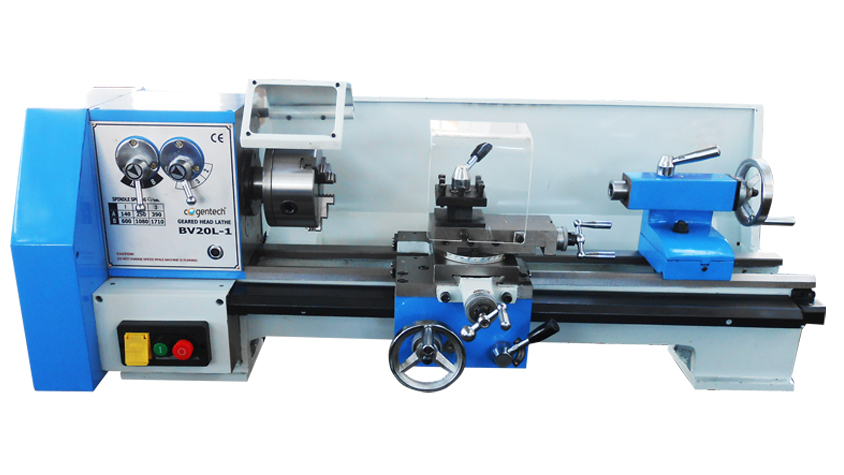

MODEL | Unit | BV20-1 | BV20L-1 |
Swing over bed | mm | 200 | |
Swing over carriage | mm | 115 | |
Distance between centers | mm | 350 | 520 |
Spindle taper | MT.3 | ||
Spindle bore | mm | Φ20 | |
Spindle speeds | rpm | 140～1710 (6 steps) | |
Metric threads | mm | 0.4～3 | |
Inch threads | T.P.I. | 8～32 | |
Tailstock quill taper and travel | mm | MT.2; 35 | |
Motor power | W | 550 | |
Packing size | mm | 1050/1200x500x550 | |
Weight | kg | 105 | 120 |
