SBC-990
Description
1. G= Gear feeding box. V=Spindle variable speed.
2. Arc or square headstock available.
3. Add drilling milling headstock available.
4. Foot stand on request.

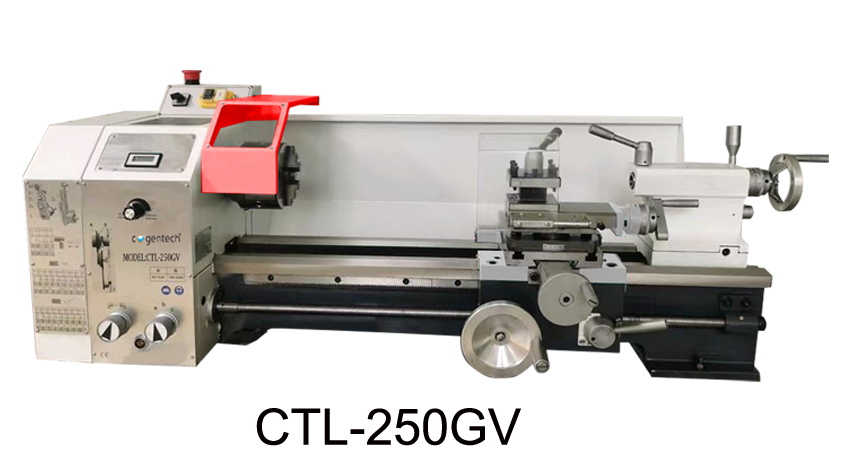

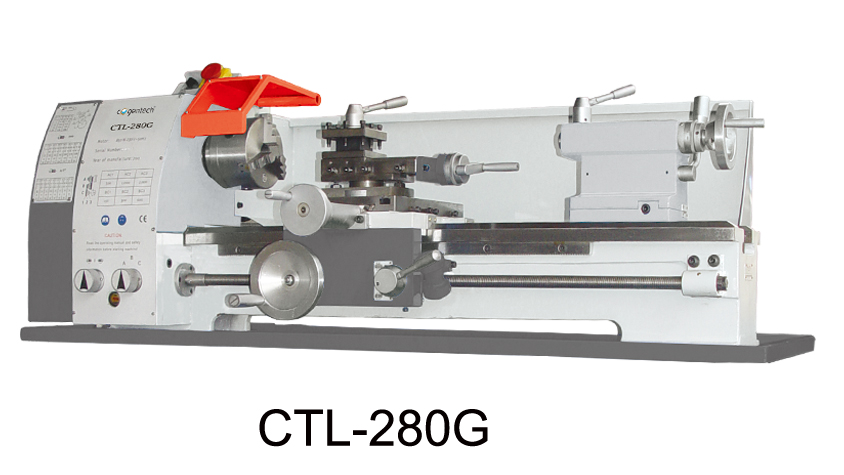

MODEL | UNIT | CTL-250 | CTL-250V | CTL-250G | CTL-250GV | CTL-280G | CTL-280GV | |
Capacity | Swing over bed | mm | 250 | 250 | 280 | |||
Center distance | mm | 400；550 | 550 | 700 | ||||
Spindle | Taper；Bore | mm | MT.3；φ21 | MT.4；φ26 | MT.4；φ26 | |||
Speed | rpm | 125-2000 (6 steps) | 50-2500 (Variable) | 125-2000 (6 steps) | 50-2500 (Variable) | 150-2000 (6 steps) | 50-2500 (Variable) | |
Motor power | kW | 0.75 | 0.75 | 0.75 | 1.1 | 0.85 | 1.1 | |
Threads | Metric | mm | 0.4-3.5 | 0.2-4 | 0.2-4 | |||
Inch | T.P.I. | 8-44 | 8-56 | 8-56 | ||||
Tailstock | Taper | mm | MT.2 | MT.2 | MT.2 | |||
Others | Overall dimensions | mm | 1050/1200x560x580 | 1200x560x580 | 1390x700x630 | |||
Weight | kg | 110； 125 | 135 | 190 | ||||
