CBS-210FH / CBS-270FH
Description
1. Spindle constant-power,constant-speed, long service life.
2. Ultra-light body,greatly reducing labor intensity.
3. Reversible function, great feature for power tapping and threading.
4. With magnetic base,coolant bottle, safety chain, drill chuck/arbor and hex wrenches.

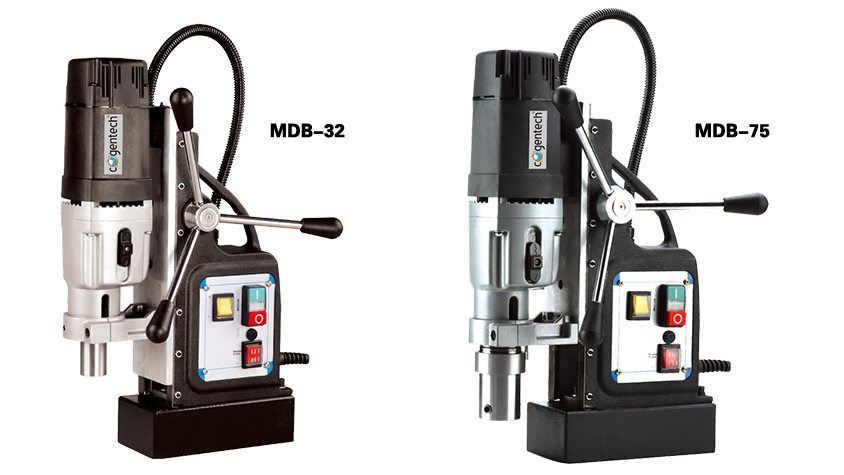

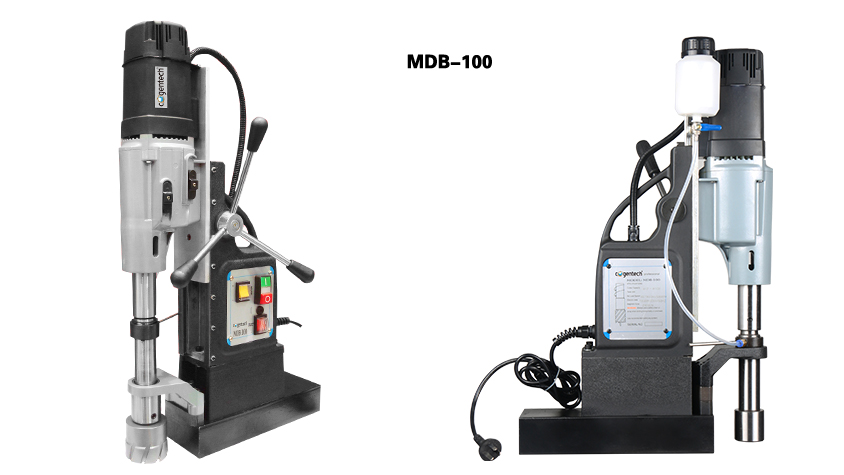

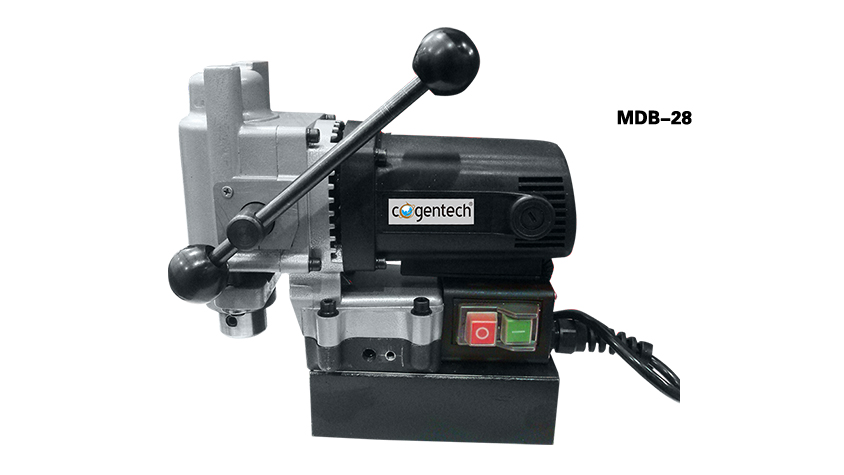

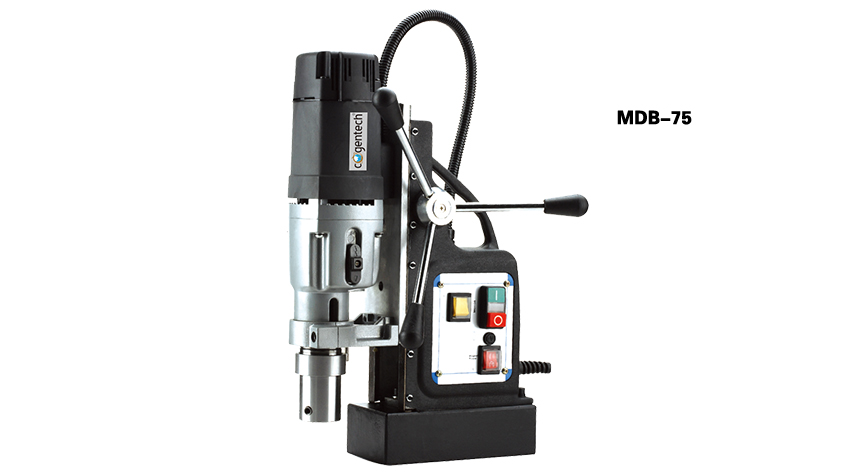

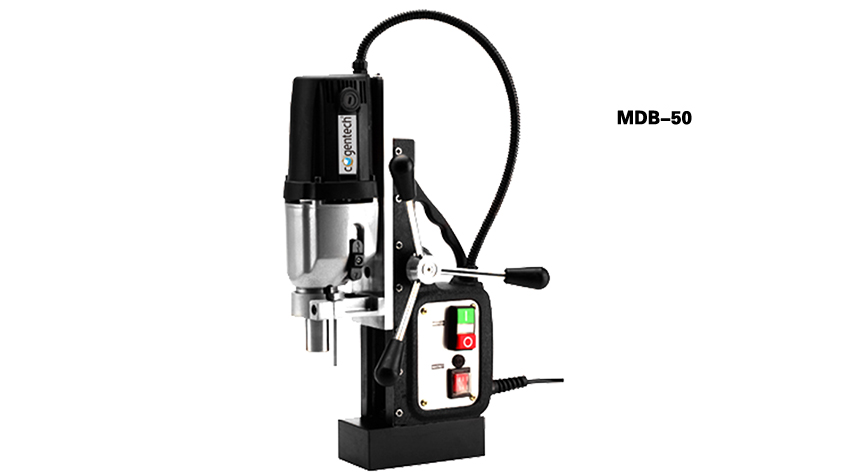

MODEL | UNIT | MDB-28 | MDB-32 | MDB-50 | MDB-75 | MDB-100 |
Cutter capacity | mm | Φ12-32 | -- | Φ12-50 | Φ12-75 | Φ12-120 |
Cutter depth | mm | 35 | -- | 50 | 75 | 75 |
Twist drill | mm | -- | Φ2.5-32 | 2.5-23 | Φ2.5-32 | Φ2.5-38 |
Spindle taper | mm | Spindle holder:19 | MT.3 | MT.2 | MT.3 | MT.4 |
Stroke | mm | 45 | 210 | 165 | 210 | 210 |
No-load speeds | rpm | 550 | 260,460 | 360/560 | 260,460 | 82,180,245,535 |
Tappin | -- | M30 | -- | M30 | M42 | |
Magnetic-base size | mm | 160x80x50 | 220x110x60 | 180x80x50 | 220x110x60 | 330x110x60 |
Motor power | kW | 1 | 1.8 | 1.2 | 1.8 | 1.8 |
N.W./G.W. | kg | 10.2/17 | 21/32.5 | 14/18.5 | 22/40 | 30/50 |
