VTM-400
Features:
1.Frame rigid body, high rigid rectangular harden guideway, durable.

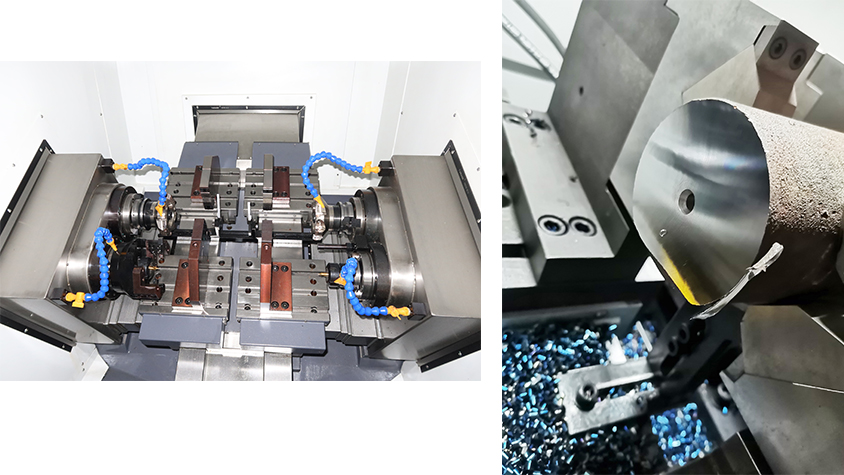

2.Shaft parts milling end face, drilling the center hole, outside diameter turning, chamfering and other processing can be completed through one clamping.

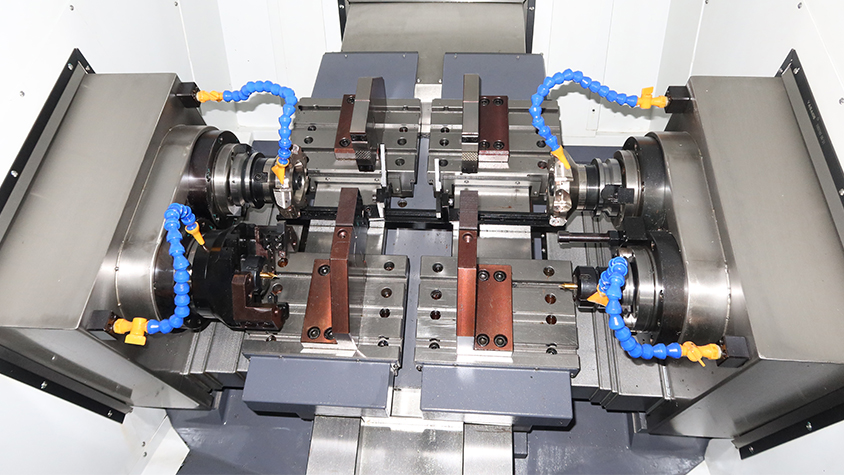

3.Hydraulic self-centering fixture, reliable clamping, stable precision.
4.Especially suitable for a truss robot automatic production line.

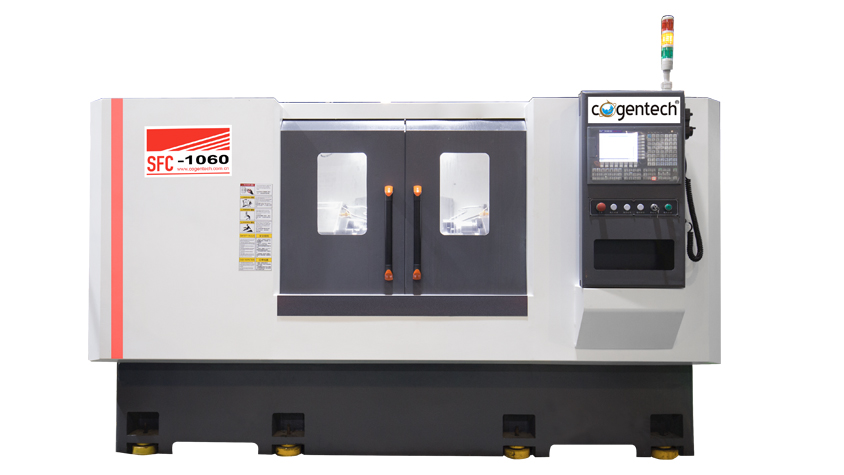

MODEL | UNIT | SFC-530 | SFC-550 | SFC-1060 | SFC-1080 |
Clamping dia. | mm | φ15-50 | φ15-50 | φ15-100 | φ15-100 |
Working length | mm | 100-300 | 200-500 | 200-600 | 300-800 |
Max. center-drill clamping dia. | mm | φ20 | φ26 | φ26 | φ26 |
Max. milling capacity (one side) | mm | 4 | 4 | 5 | 5 |
Overall dimensions | mm | 2400x1400x? | 2800x1400x? | 3200x1600x | 3200x1600x? |
Weight | kg | 2800 | 3000 | 5000 | 500 |
