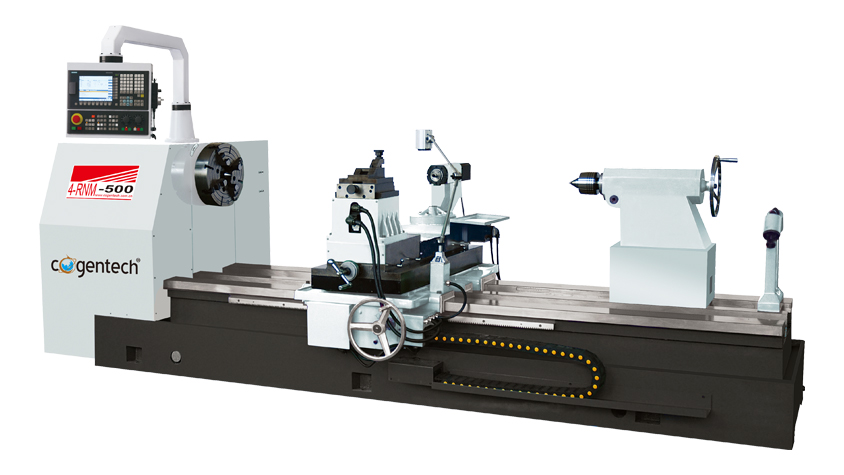

HMC-1000 (Inverted T)
Description

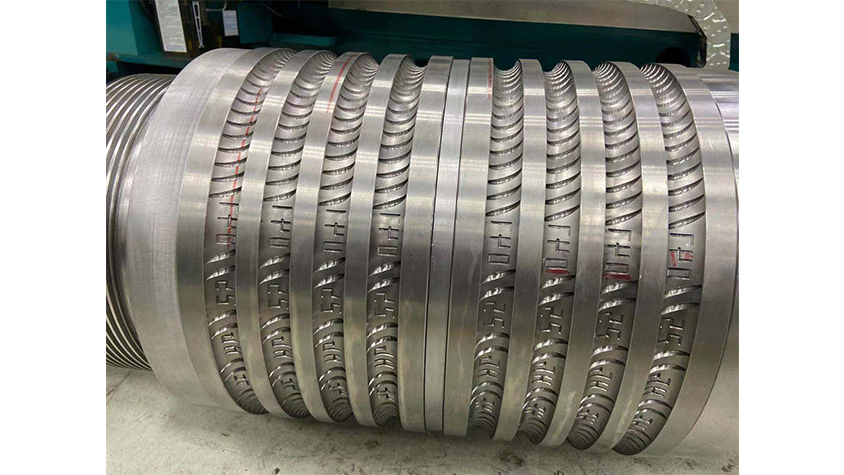

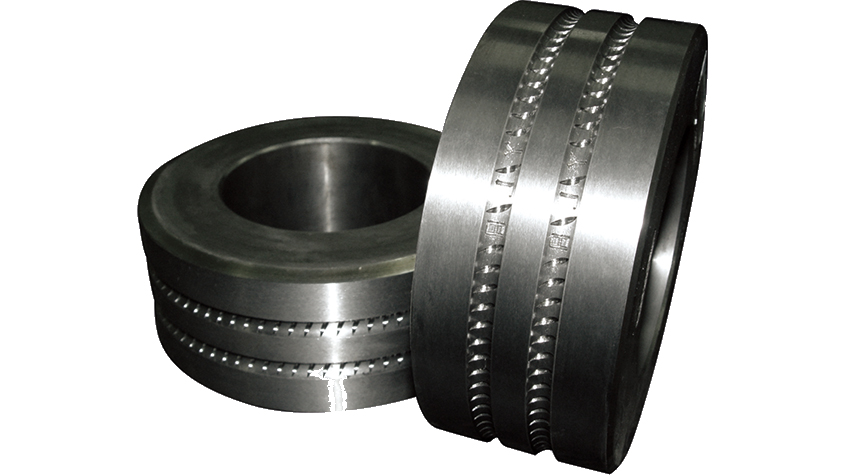

It is suitable for milling common rolls, high speed steel rolls, high hardness tungsten carbide roll rings and high hardness composite rolls. It is an combined machine that realizes two
functions of flying cutter milling and mark engraving. Independently developed processing software, easy to use.
MODEL | UNIT | 4-RNM-500 | 5-RNM-500 | |
Roll dia. range | mm | φ100-φ500 | φ100-φ500 | |
Max. roll length | mm | 2500 | 2500 | |
Mar. roll weight | kg | 3500 | 3500 | |
Transverse rib groove size | mm | φ6-φ50 | φ6-φ50 | |
Max. milling speed of fly-cutter | r/min | 650 | 600 | |
Max. speed of engraving head | r/min | 12000 | 12000 | |
Power of electric spindle of engraving head | kW | 2.2 | 2.2 | |
Control system | Siemens 808D (4-axis) | Siemens 828D (5-axis) | ||
Servo motor power | X-axis | kW | 1.75 | 1.75 |
Y-axis | kW | 2.5 | 2.5 | |
Z-axis | kW | 1.75 | 1.75 | |
A-axis | kW | 3.5 | 3.5 | |
B-axis | kW | -- | 1.75 | |
Overall dimensions | mm | 4500x1700x2100 | 4500x1800x1700 | |
Weight | kg | 6000 | 6200 | |
