DM-45A

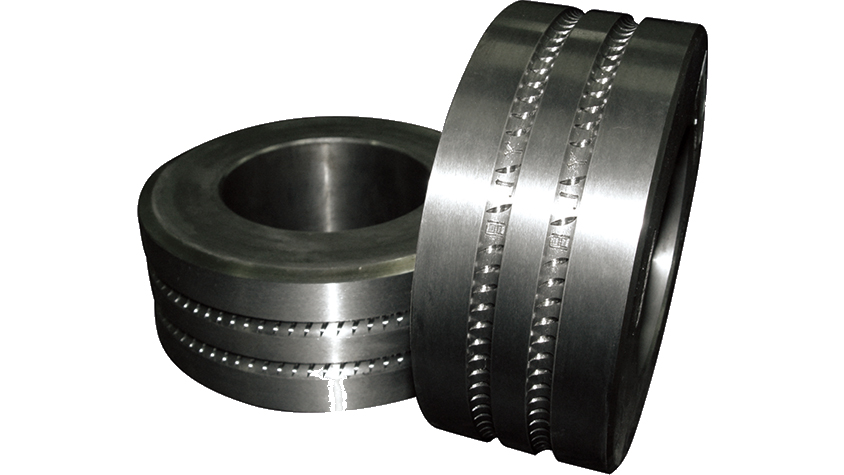

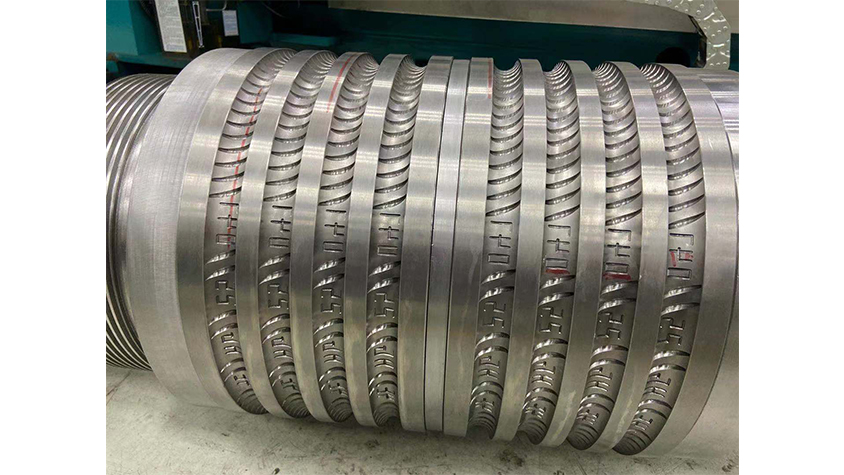

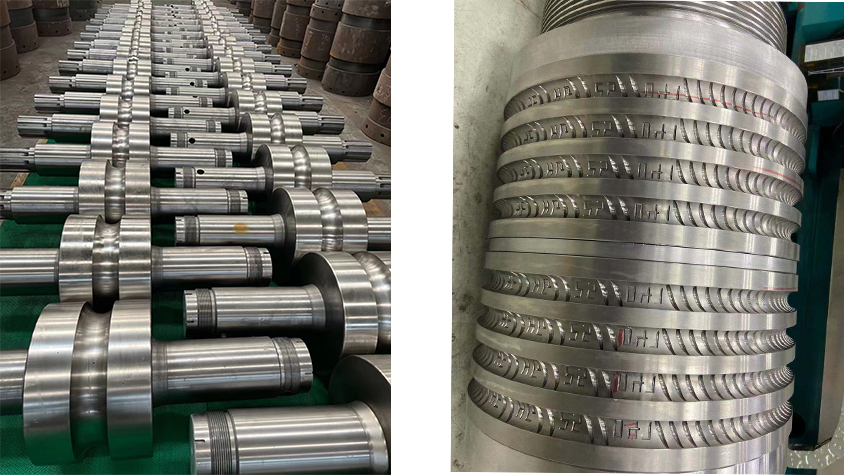

It is suitable for semi-finish turning and finishing of ordinary rolls, high-speed steel rolls, high-hardness tungsten carbide roll rings and high-hardness composite rolls. It can also process steel and non-ferrous metals. The corresponding tool can be used to process and repair the outer circle, end face and various complicated hole profiles, curved surfaces of the roll. Large size φ1000mm, φ1250mm models available.

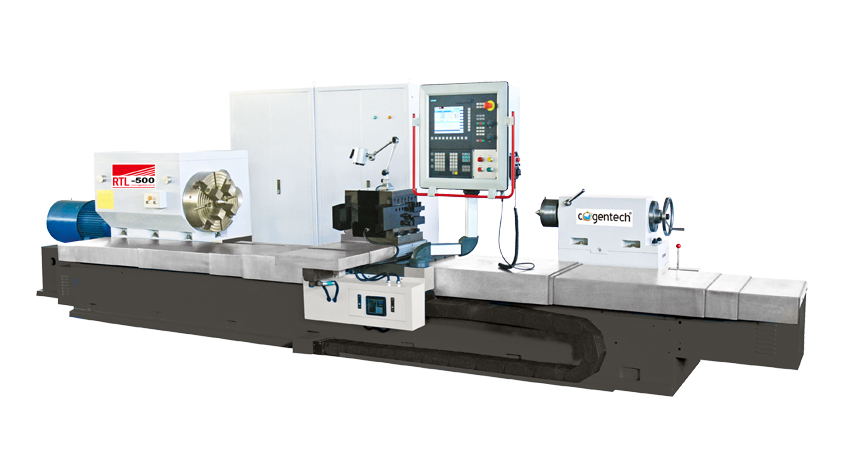

MODEL | UNIT | RTL-500 | RTL-650 | RTL-800 |
Center height | mm | 350 | 440 | 650 |
Max. roll dia. | mm | φ500 | φ650 | φ800 |
Max. roll length | mm | 2500 | 3500 | 4000 |
Max. roll weight | kg | 3500 | 7000 | 14000 |
Spindle speed (variable) | r/min | 3-350 | 3-315 | 3-250 |
X/Z-axes feed rate | mm/min | 2000/1500 | 3500/1500 | 3000/1500 |
Tailstock quill travel | mm | 150 | 150 | 300 |
Servo spindle motor power | kW | 30 | 45 | 55 |
Overall dimensions | mm | 6000x2000x1400 | 6800x2000x1760 | 8600x2440x2000 |
Weight | kg | 11500 | 15000 | 20000 |
