Description

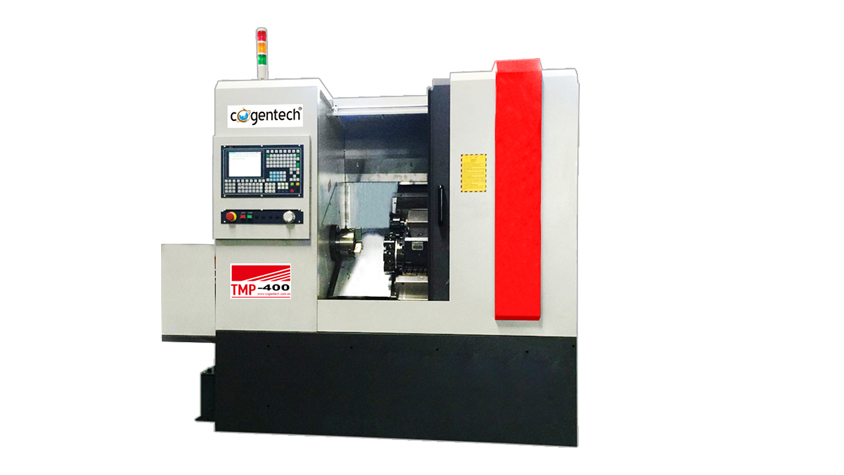

1. Polygon lathe.

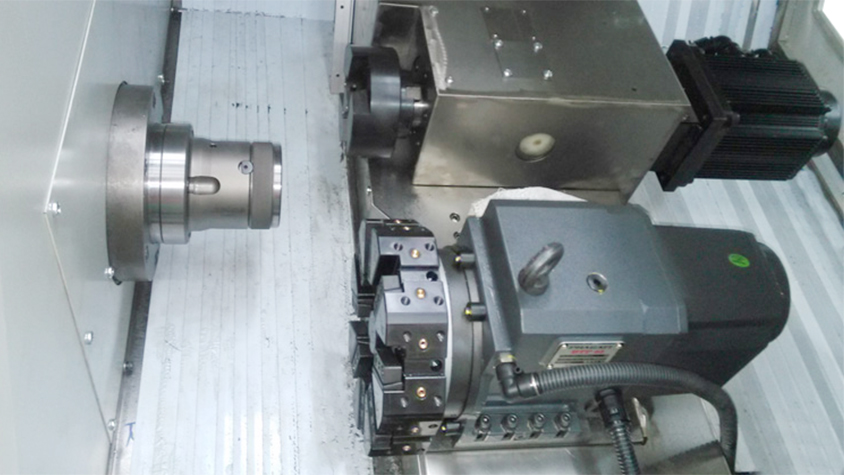

2. One-piece 30°slant bed, high-quality resin sand, high rigidity, good shock resistance and smooth chip removal.
3. X,Z-axes adopts Taiwan roller linear guideways, ball screw, high speed, high precision.

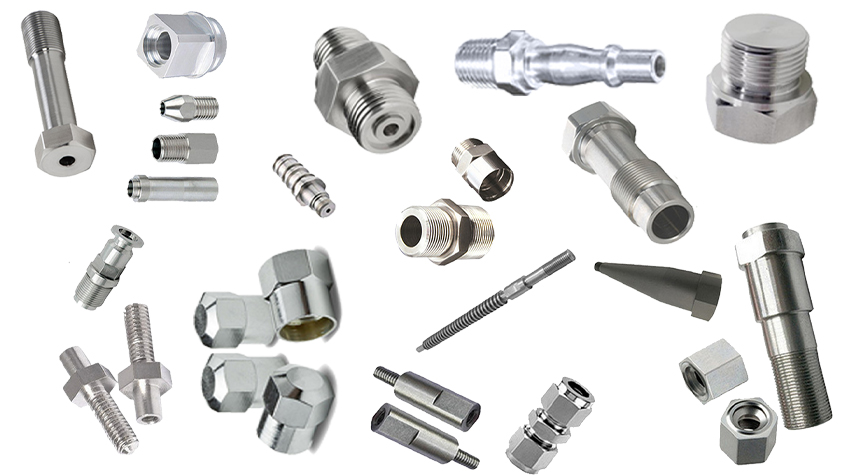

4. One time clamping to complete 2,4,6,8 square polyhedral milling and turning, chamfering, punching, internal and external threads and other multi-process processing.
5. Widely used in aerospace, auto parts, precision hardware and other medium and high precision parts of automatic production.
6. Optional: simple automatic feeding device.
MODEL | UNIT | TMP-400 | TMP-500 | ||||
Capacity | Swing over bed | mm | 400 | 500 | |||
Max. hexagonal size | mm | 32 | 50 | ||||
Max.processing length | mm | 150 | 200 | ||||
Travels | X/Z axis | mm | 200/200 | 200/250 | |||
Feeding | X/Z axis rapid feed rate | m/min | 10/10 | 10/10 | |||
Spindle | Spindle nose (Bore) | mm | A2-5 (φ40) | A2-6 (φ52) | |||
Spindle speed | rpm | 3000 | 2000 | ||||
Motor power | kW | 5.5 | 7.5 | ||||
Chuck size | 6” | 8” | |||||
Turret | No. of turning tools | T | Gang tools | 4 | Gang tools | 4 | |
Milling cutter | Speed | rpm | 2000 | 1600 | |||
Motor power | Nm | 15 | 23 | ||||
Others | Overall dimensions | mm | 2150x1600x1900 | 2400x1700x2000 | |||
Weight | kg | 2200 | 3200 | ||||
