Work Process：

Automatic rotary stacker feeding brass wire, tip part lathing, sawing, automatic unloading.

Product Description：

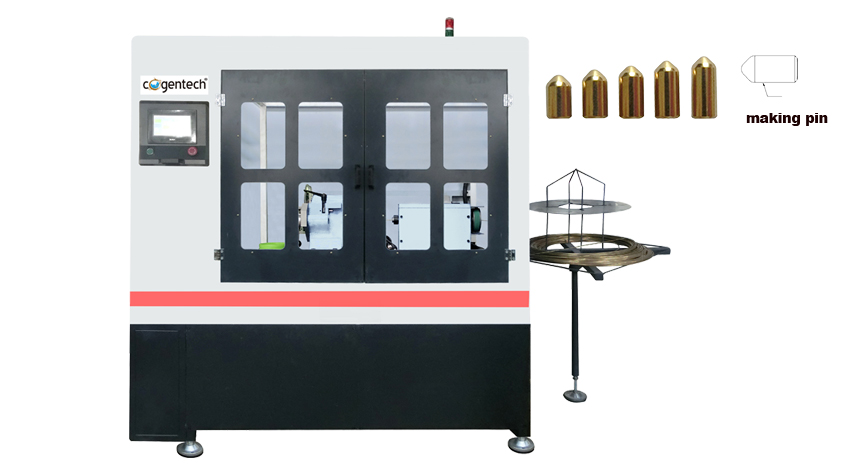

This machine is specially designed to make cylinder pins. The machine adopts oily cutting fluid to make the pins with high surface smoothness. The feeding and sawing are controlled by servo motor, and the feeding speed can be easily adjusted by PLC and HMI touching screen panel, which makes it fully automation. It has the advantages of high precision, high working efficiency, manpower saving and high qualification rate, and is the ideal choice for brass cylinder pin making.

Quick Details：

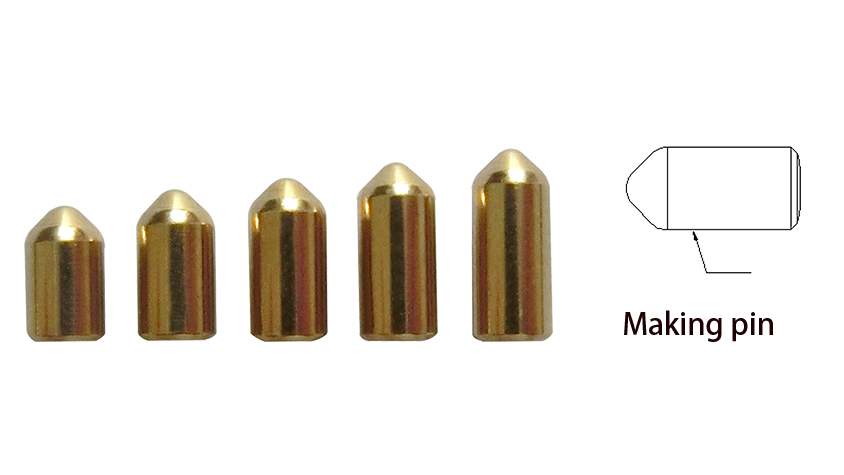

·Work Material: Brass                                     ·            Processing Range: Cylinder Pin 2.0-3.2mm

·Work Efficiency: 25000-35000pcs/8h                       ·Machine Size: 1.1L*0.95W*1.5H(m)

·Machine Weight: 650kg                                             ·Machine Power: 1.5kw

·Air Pressure: 0.4-0.6mpa                                         ·Cutting Fluid: Oily Type

Machine Configuration:

※The parameters are subjected to change！                                    ※Special customize available！
