Work Process：

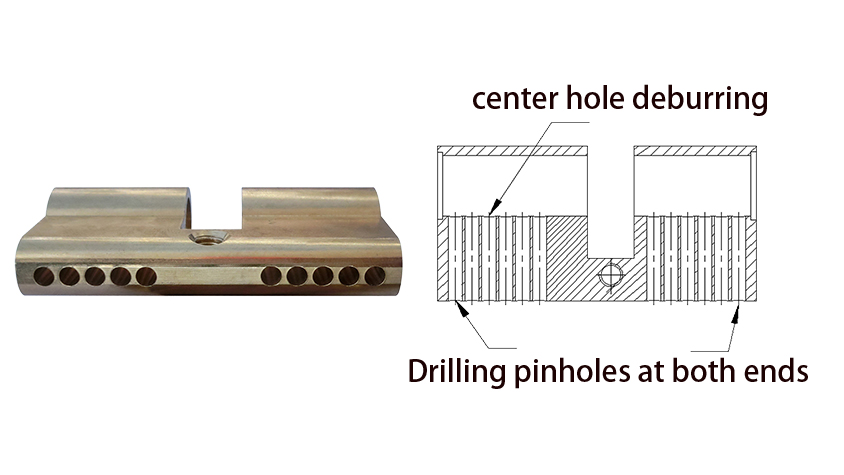

Bar stacker automatic feeding, drilling pinholes at both ends, center hole deburring, automatic unloading.

Product Description：

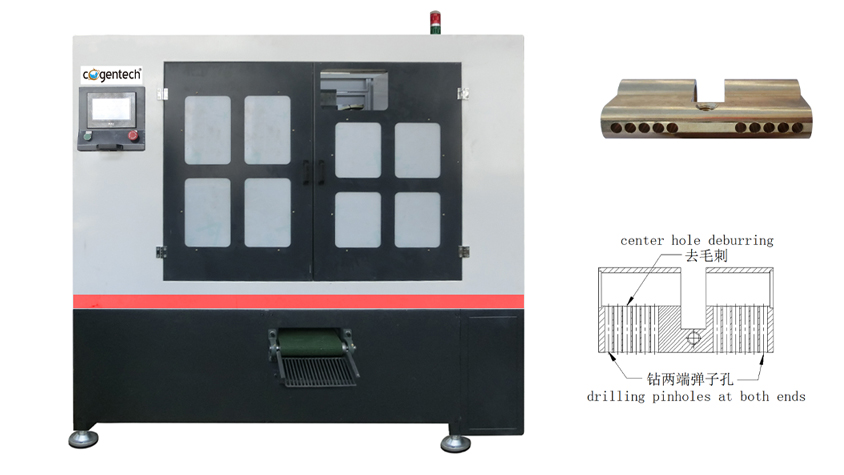

This machine is specially designed for cylinder housing drilling pinholes. It is controlled by PLC and HMI touching screen panel, the processing parameters like hole number, hole depth and hole distance can be set freely on the touch panel. Two drilling spindles can work at the same time to enhance the working efficiency. The machine is equipped with a center hole deburring function which make the housing ready for assembling after drilling pinholes.

Quick Details：

·Work Material: Brass, Cast Iron, Aluminum                ·Processing Range: Cylinder Housing 50-120mm

·Work Efficiency: 2500-3000pcs/8h                             ·Machine Size: 2.0L*1.3W*1.8H(m)

·Machine Weight: 1300kg                                            ·Machine Power: 5kw

·Air Pressure: 0.4-0.6mpa

Machine Configuration:

※The parameters are subjected to change！                                         ※Special customize available！
