Work Process：

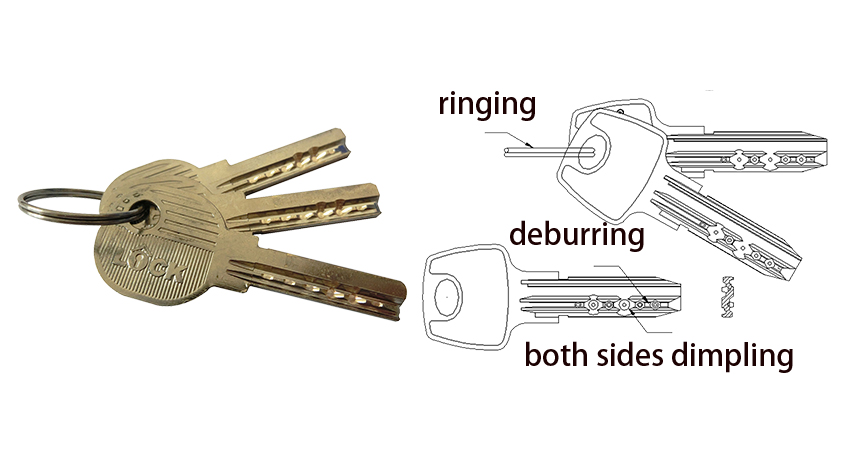

Bar stacker automatic feeding, both sides dimpling, milling burrs, ringing, automatic unloading.

Product Description：

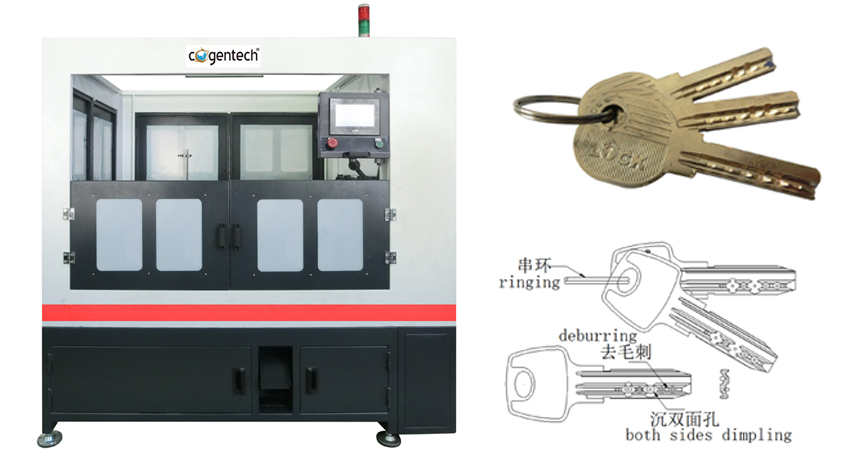

This machine is designed for iron dimple cut key cutting. The machine tool adopts linear type mechanical hand feeding and transportation keys, and has the advantages of simple operation and convenient replacement of products. It use milling to move off the chips after dimpling, which makes the deburring good finish. The machine is controlled by PLC and HMI touching screen panel. The cut depth, cut number, cut distance and cut code can all be free to set according to requirements.

Quick Details：

·Work Material: Iron                                                 ·Processing Range: Dimple Key

·Work Efficiency: 4500-5000pcs/8h                         ·Machine Size: 1.95L*1.5W*1.75H(m)

·Machine Weight: 950kg                                          ·Machine Power: 2.5kw

·Air Pressure: 0.4-0.6mpa

Machine Configuration:

※The parameters are subjected to change！                                         ※Special customize available！
