Work Process：

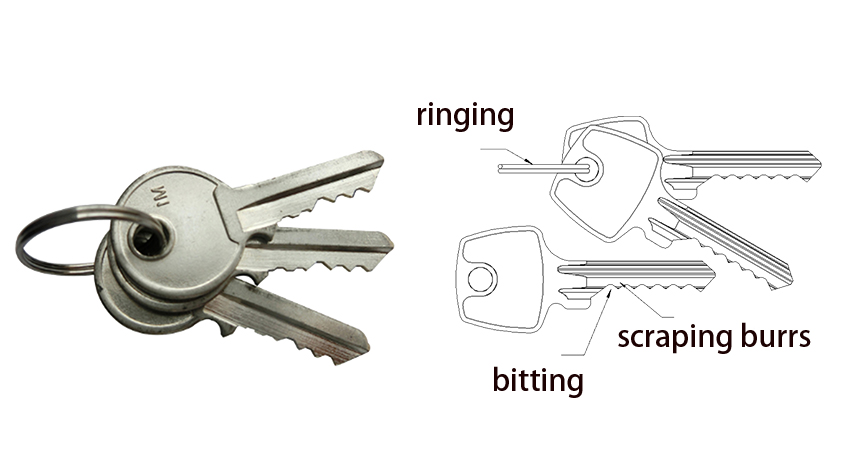

Bar stacker automatic feeding, bitting, scrapping burrs, ringing, automatic unloading.

Product Description：

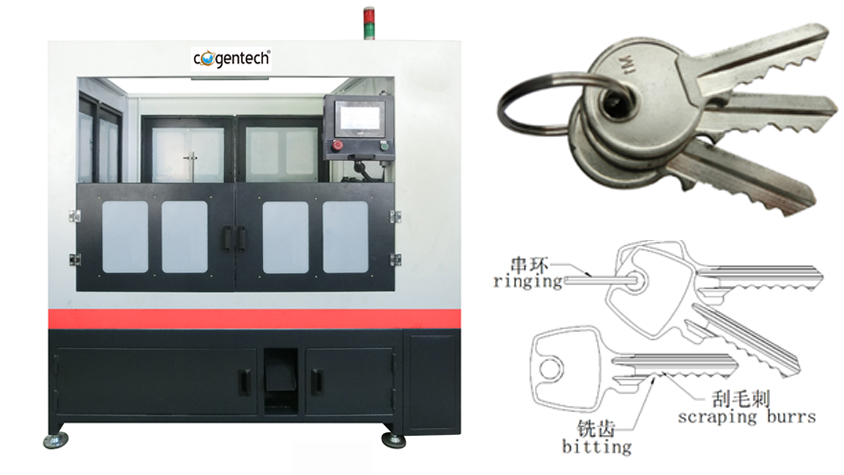

This machine is designed for normal brass key cutting. It can cut key for one side or both sides. The machine tool adopts linear type mechanical hand feeding and transportation keys, and has the advantages of simple operation and convenient replacement of products. The chip scraping cutter is customized according to the keyway slot, which makes the deburring good finish. The machine is controlled by PLC and HMI Touching Screen Panel. The cut depth, cut number, cut distance and cut code can all be free to set according to requirements.

Quick Details：

·Work Material: Brass                                              ·Processing Range: Normal Key, Straight Slot Key

·Work Efficiency: 6500-7000pcs/8h                         ·Machine Size: 1.95L*1.5W*1.75H(m)

·Machine Weight: 750kg                                          ·Machine Power: 1kw

·Air Pressure: 0.4-0.6mpa

Machine Configuration:

※The parameters are subjected to change！                                         ※Special customize available！
