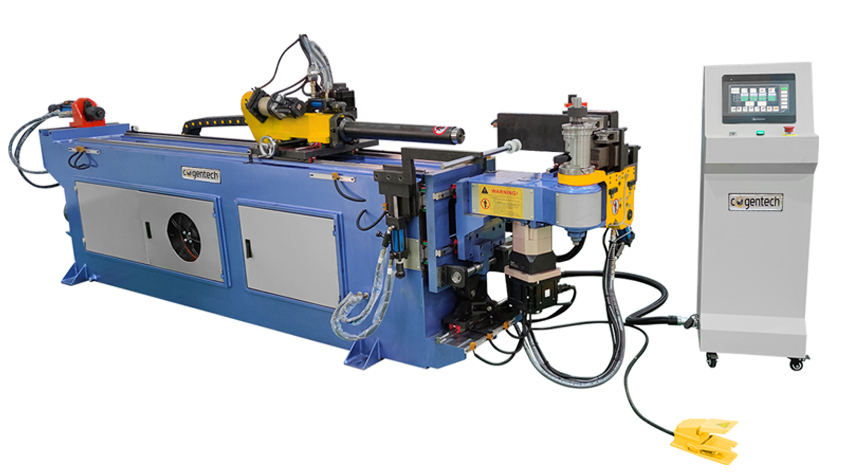

Features：

1. Electrical Control System**: Adopts a combination of servo drivers, servo motors and CPUs from Mitsubishi, a world-renowned controller brand, featuring strong performance and excellent stability.

2. Taiwan Weinview touch screen system with an extra-large CPU that can store 350 groups of file edits.

3. Equipped with automatic error and fault detection function, which is displayed on the screen, making it easy for operators to troubleshoot.

4. All processing data is input through the touch screen. For each pipe bend, compensation values, speed and demoulding gap can be set according to different material changes.

5. Each bend of the same pipe can be individually programmed with 5 action sequences and 10 speed segments for operators to use in combination, which improves work efficiency and reduces pipe interference points.

6. The touch screen can switch between Chinese and English, and display in other languages can also be ordered according to requirements.

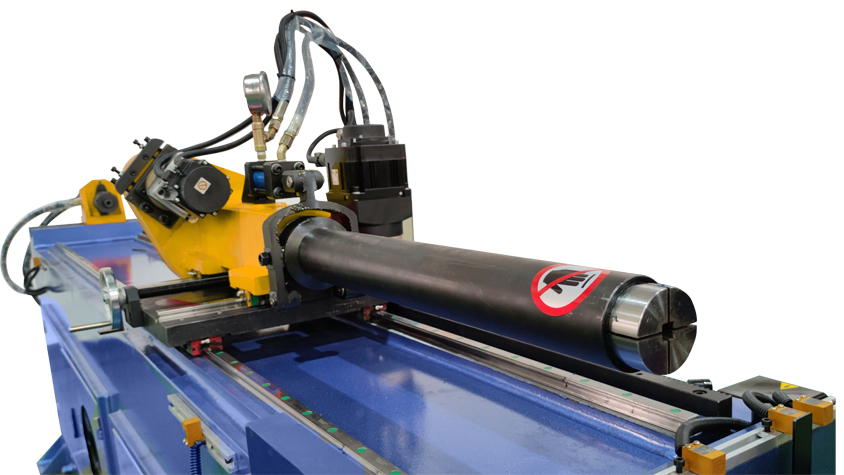

7. The feeding method can be selected as straight feeding or pinch feeding according to different needs, and can automatically convert XYZ coordinates to YBC processing values.

8. The electrical control system is equipped with a heat exchanger for automatic heat dissipation to ensure the service life of the electrical control system.

9. The machine is equipped with an automatic oil injection lubrication system, which facilitates maintenance and can extend the service life of the equipment.

10. The settings of the feeding trolley's feeding position, safety devices, digital model interference position and guide die interference position can be manually fine-tuned, and the positions are automatically memorized, eliminating errors caused by manual measurement and losses from machine collisions.

11. The feeding axis will automatically detect before moving to avoid collision with the machine.

12. During actual bending, decomposed actions can be selected to observe interference points and modify work, thus improving efficiency.
